KingKong Technology | SKU:

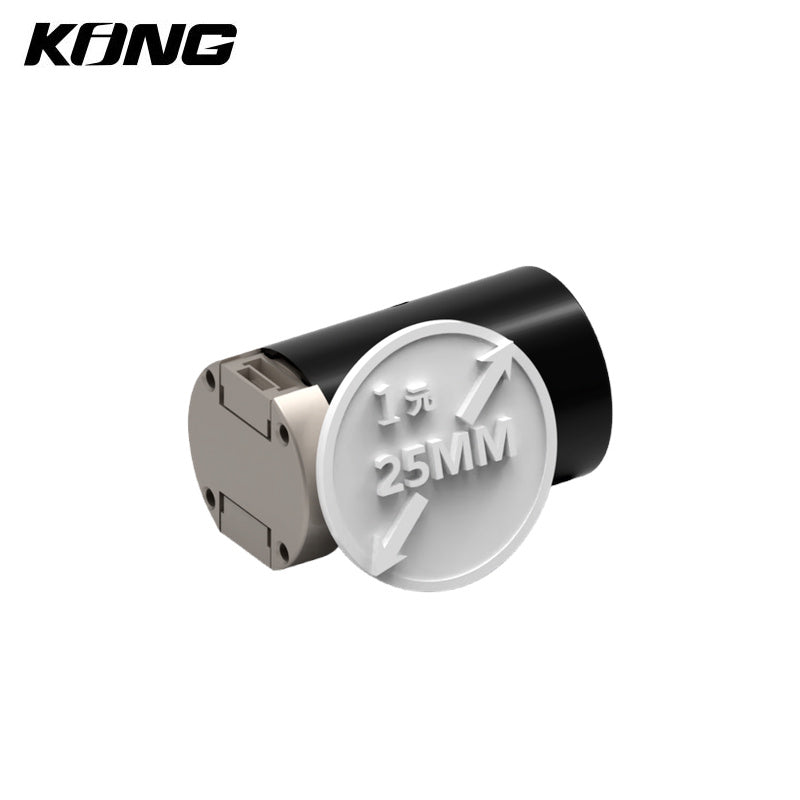

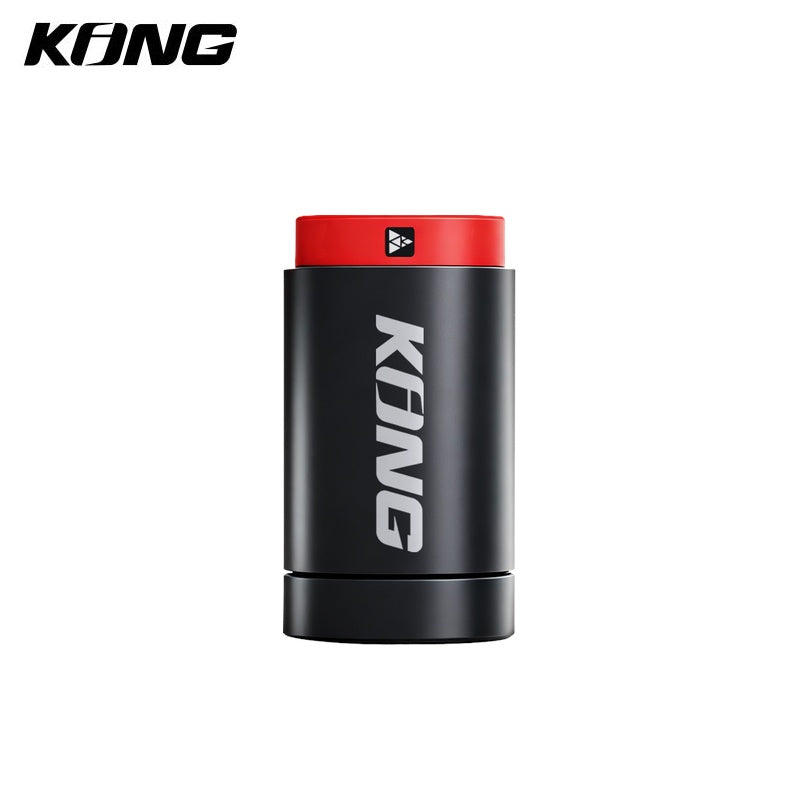

KingKong TS20 Tactile Servo Motor
Regular price
$780.00
Unit price
KingKong TS20 Tactile Servo Motor - TS20 / 50 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
KingKong TS20 Tactile Servo Motor
Regular priceFrom
$780.00
Unit price
KingKong TS20 Tactile Servo Motor - TS20 / 50 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | TS20-50 | TS20-100 |
|---|---|---|
| Reduction Ratio | 50 | 100 |
| Rated Torque | 0.7 N.m | 1.5 N.m |
| Peak Torque* | 2 N.m @ 300ms | 4 N.m @ 300ms |
| Max No-load Speed | 31.4 rad/s | 15.7 rad/s |
| Backlash | <20 arc-second | <20 arc-second |
| Dual Encoder | Dual 24bit | Dual 24bit |
| Outer Diameter × Length | Ø20mm × 35mm | Ø20mm × 35mm |
| Hollow Diameter | Ø1.7mm | Ø1.7mm |
| Motor Weight | 35g | 35g |
| Rated Voltage | 24V DC | 24V DC |
| Reverse Drive | Supported | Supported |
| Communication | RS485 | RS485 |

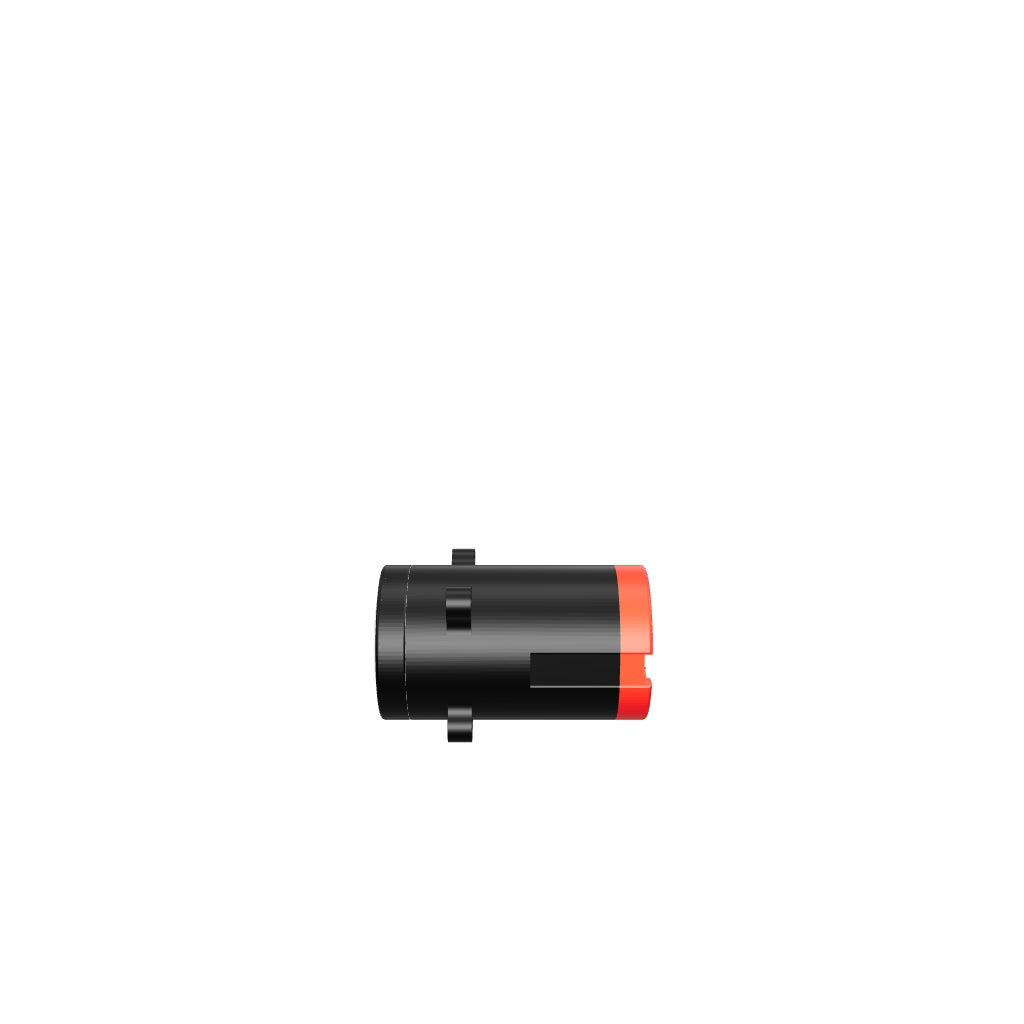

KingKong Technology-TS20-50-TS20-100.stp
