Intel RealSense | SKU:

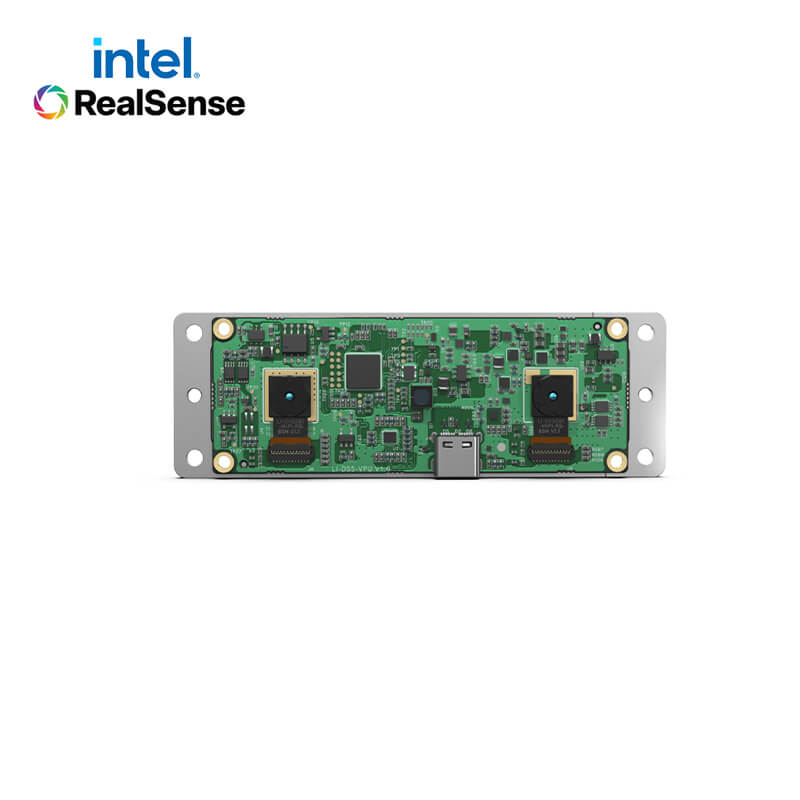

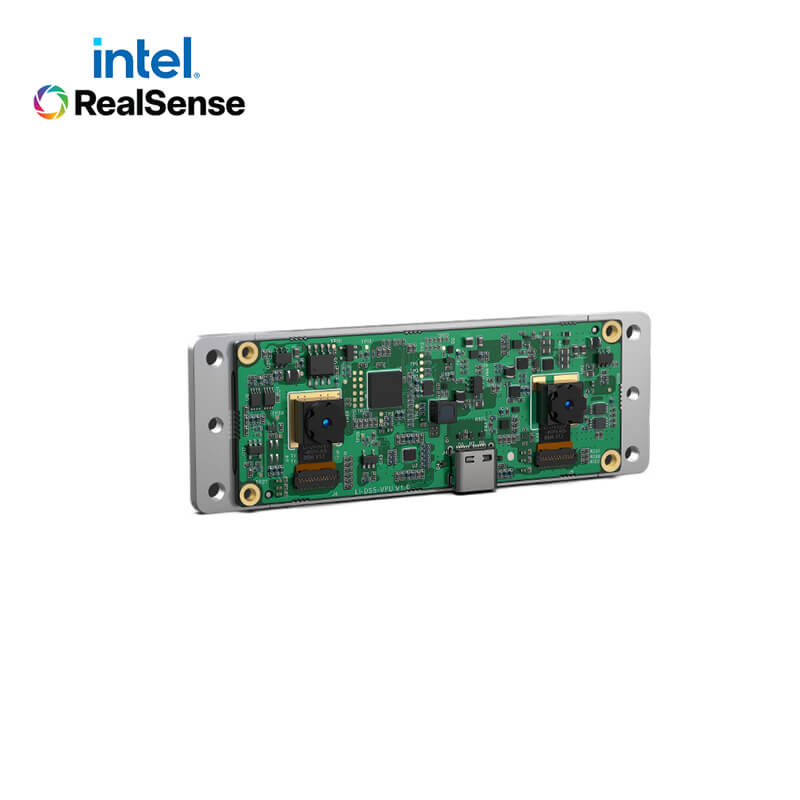

Intel RealSense Depth Module D421
Regular price
$135.00
Unit price
Intel RealSense Depth Module D421 - Module D421 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Intel RealSense Depth Module D421
Regular price
$135.00
Unit price
Intel RealSense Depth Module D421 - Module D421 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Use environment: | Indoor/Outdoor |
| Image sensor technology: | Global Shutter |
| Ideal Range: | 0.2 m to over 2 m (varies with lighting conditions) |
| Temperature Range: | 0°C to 35°C |
| Depth Technology: | Stereoscopic |
| Minimum Depth Distance (Min-Z): | ~20 cm |
| Depth Accuracy: | <4% at 2 m |
| Depth Field of View (FOV): | 75° ± 3° × 50° ± 3° |
| Depth Output Resolution: | Up to 1280 × 720 |
| Depth Frame Rate: | Up to 60 fps |
| Depth Filter: | IR Band Pass Filter |
| Form Factor: | Camera Module |
| Length x Depth x Height: | 95 mm × 32 mm × 10.18 mm |
| Connectors: | USB-C |
