Intel RealSense | SKU:

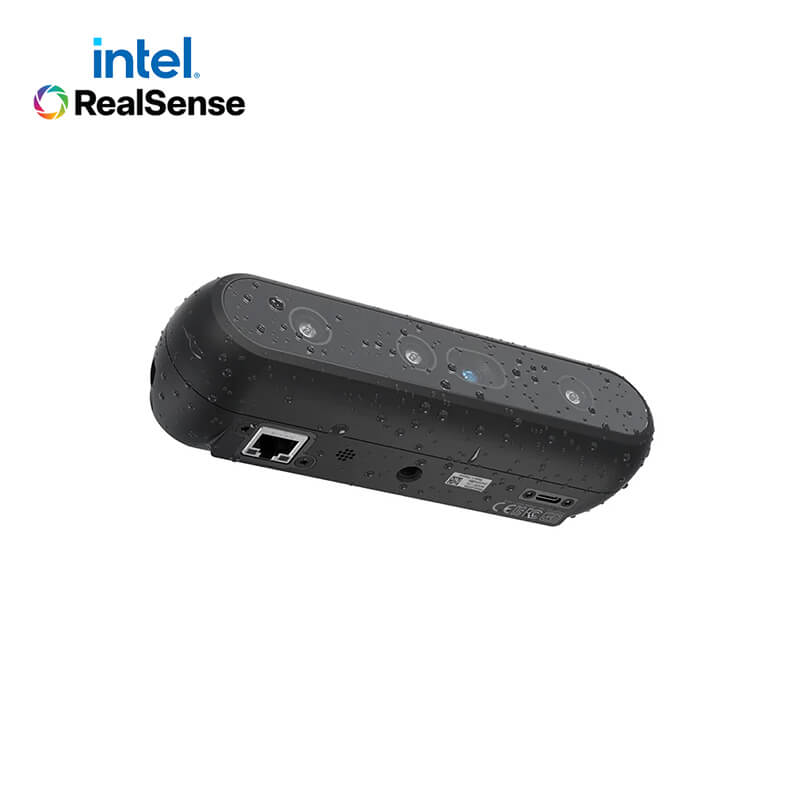

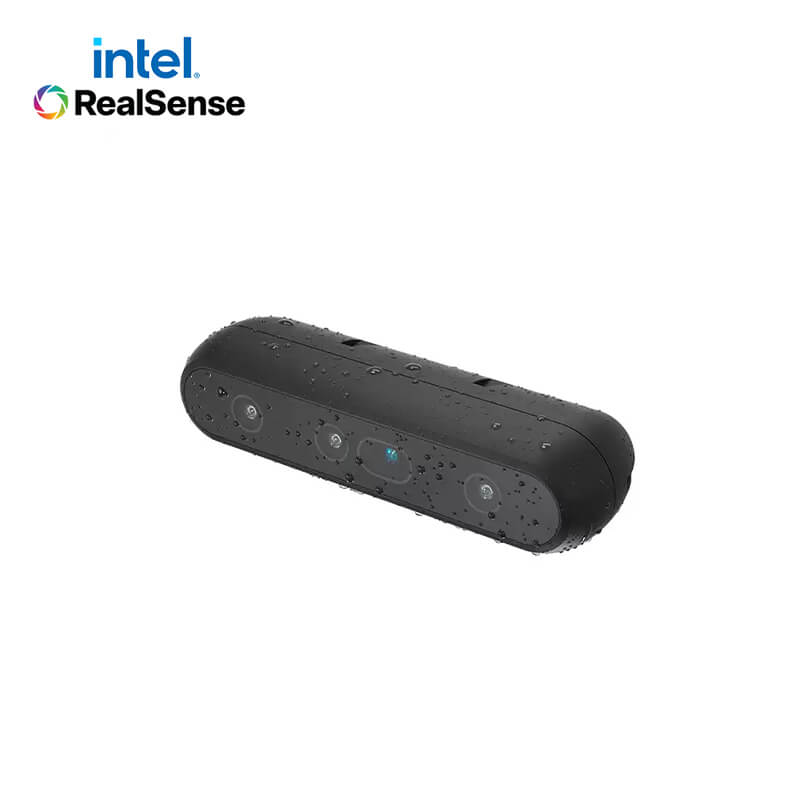

Intel RealSense Depth Camera D555
Regular price
$750.00
Unit price
Intel RealSense Depth Camera D555 - D555 PoE is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Intel RealSense Depth Camera D555
Regular price
$750.00
Unit price
Intel RealSense Depth Camera D555 - D555 PoE is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Use environment: | Indoor/Outdoor |
| IP Grade: | Rated IP65 |
| Image sensor technology: | Global Shutter |
| Operating Case Temperature: | -20° to 50°C |
| Depth Technology: | Stereoscopic |
| Minimum Depth Distance (Min-Z) at Max Resolution: | ~26 cm (VGA) |
| Depth Field of View (FOV): | 87° × 58° |
| Depth Output Resolution: | Up to 1280 × 720 |
| Depth Frame Rate: | Up to 90 fps |
| RGB Frame Rate: | Up to 60 fps |
| RGB Frame Resolution: | Up to 1280 × 800 |
| RGB Sensor Technology: | Global Shutter |
| RGB Sensor FOV (H x V): | 90° × 65° |
| PoE Connector: | RJ45 |
| USB Connector: | USB-C (Can be used for power) |
| Power (Typical): | 5.5W |
| External HW Sync: | Via the USB connector |
| Camera Module: | RealSense Module D450 |
| Vision Processor Board: | RealSense Vision SoC V5 Board 1 |
| Form Factor: | Camera Peripheral |
| Length x Depth x Height: | 167 mm × 42 mm × 48 mm |
