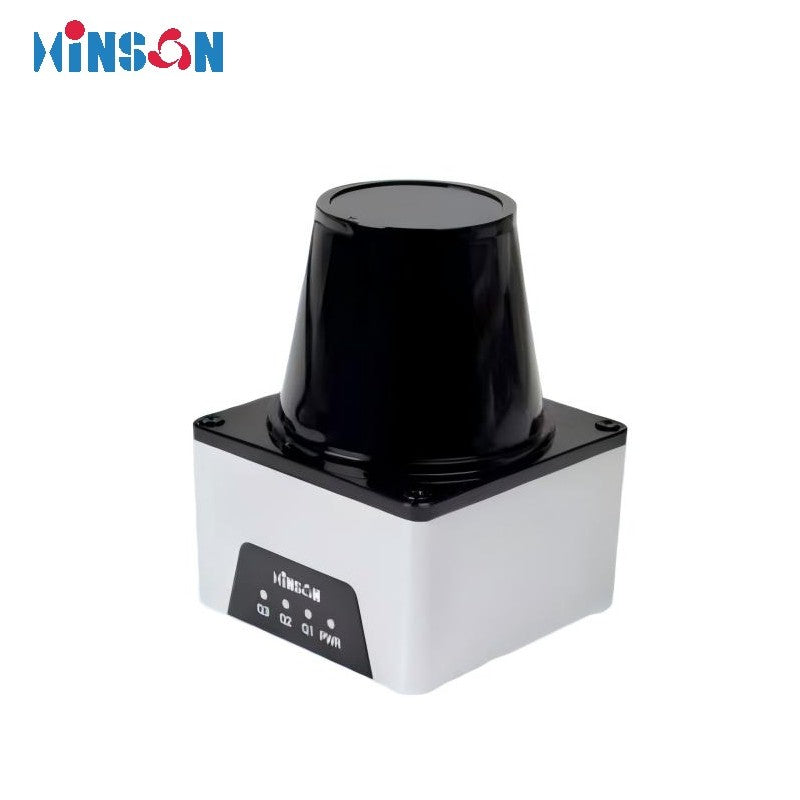

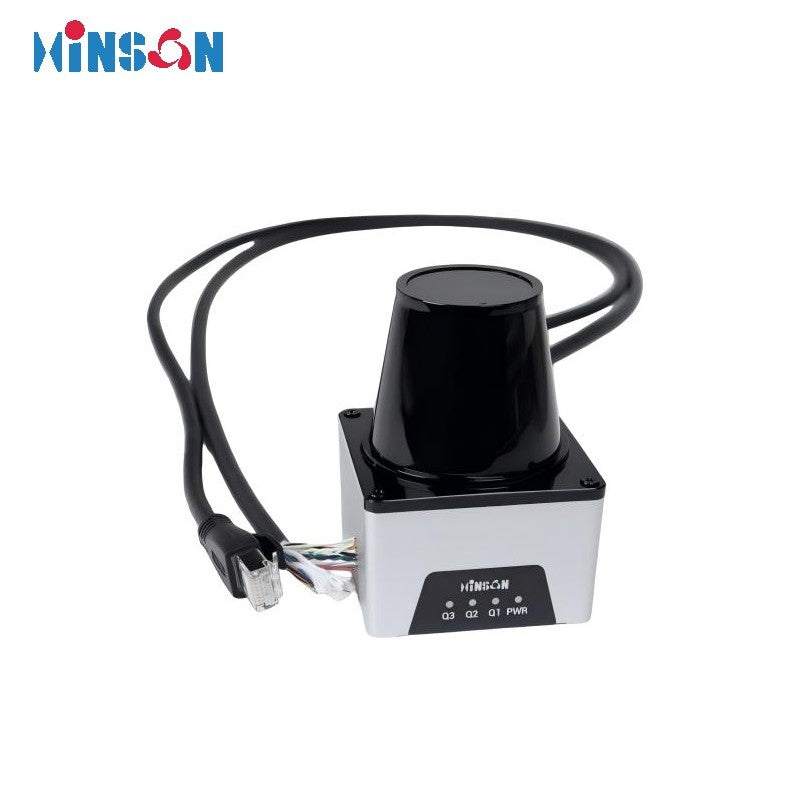

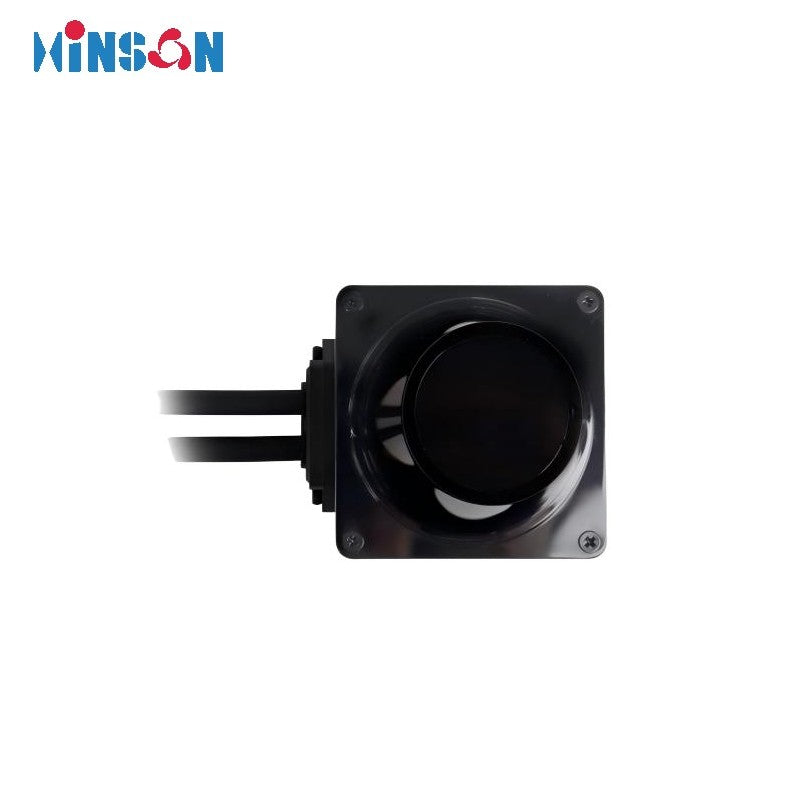

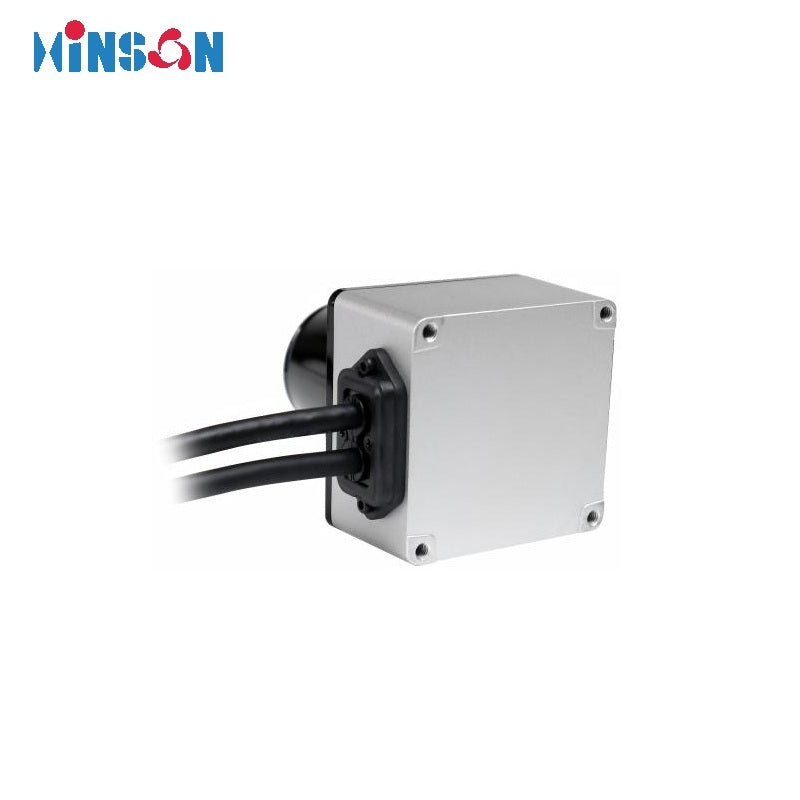

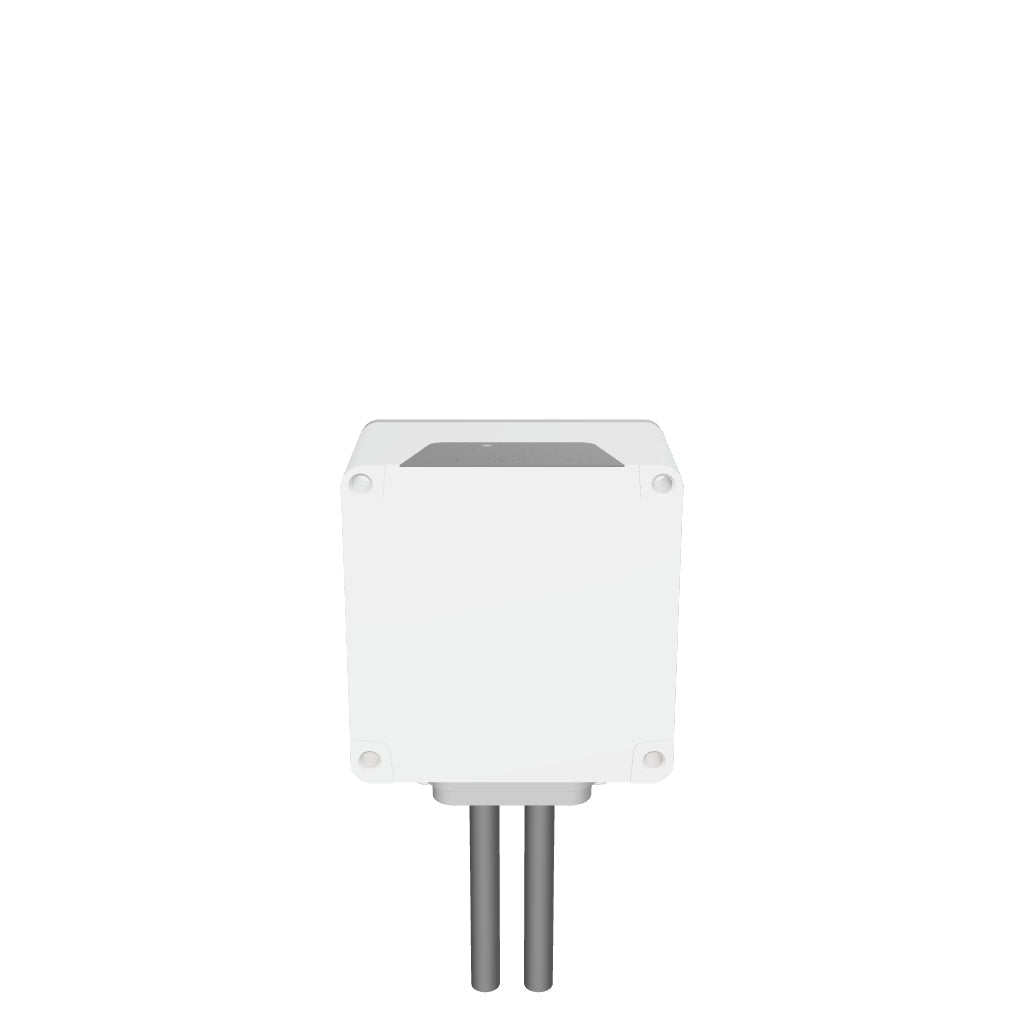

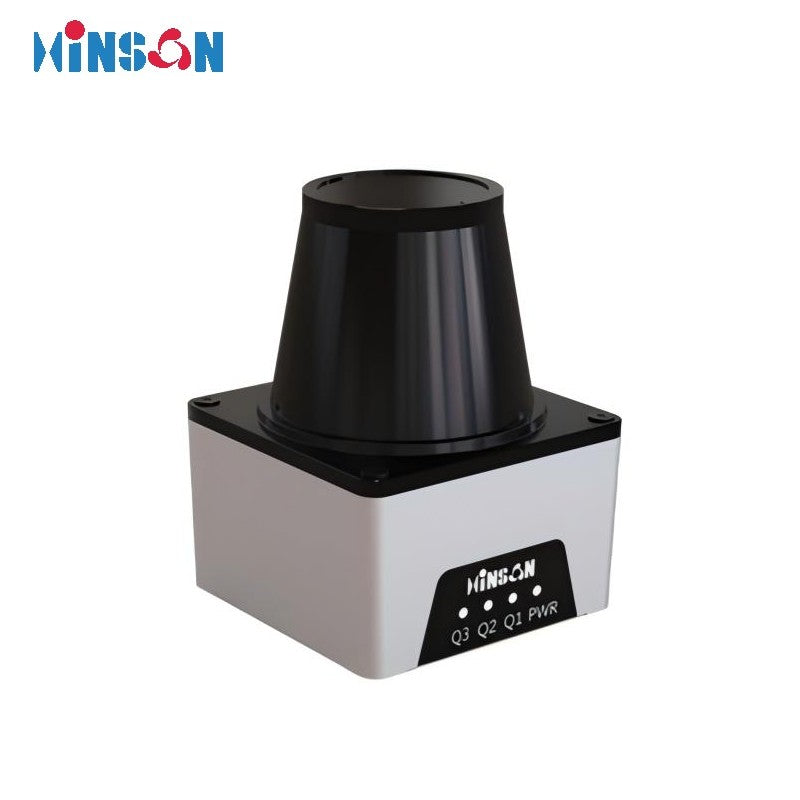

Hinson FE35FB-01000 LiDAR
Regular price
$380.00
Unit price
Hinson FE35FB-01000 LiDAR - FE35FB-01000 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Hinson FE35FB-01000 LiDAR
Regular price
$380.00
Unit price
Hinson FE35FB-01000 LiDAR - FE35FB-01000 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Detection Distance (90% reflectivity) | 0.05m ~ 35m |
| Detection Distance (10% reflectivity) | 0.05m ~ 12m |
| Detection Angle | 312° (2D) |
| Scan Frequency | 540 KHz |
| Angular Resolution | 0.025° / 0.05° / 0.1° / 0.25° / 0.5° (depends on scan frequency, motor speed, and single-point sampling count) |
| Scan Motor Speed (12.5Hz) | 750 r/min (0.025°, 0.05°, 0.1°, 0.25°, 0.5° resolution) |
| Scan Motor Speed (25.0Hz) | 1500 r/min (0.05°, 0.1°, 0.25°, 0.5° resolution) |
| Recognizable Object Shape | Any shape, resolution depends on detection distance |
| Measurement Resolution | 1 mm |
| Absolute Accuracy | ±20 mm |
| Repeat Accuracy | ±10 mm |
| Measurement Noise | ±5 mm |
| Digital Input | 4 × NPN |
| Digital Output | 4 × NPN |
| CAN | Yes |
| Ethernet | TCP / UDP |
| Number of Echoes | 3 (1st, 2nd, last, max. energy) |
| Raw Measurement Data Output | Yes |
| Obstacle Avoidance Channels | 64 (communication), 16 (I/O) — each channel provides 3 independent detection zones |
| Operating Voltage | DC 10 ~ 30 V |
| Rated Power | < 3.4 W |
| Laser Class | 905 nm Class 1 (IEC 60825-1:2014) |
| Indicator Lights | Green (Power), Red (Fault), Yellow / Orange / Red (Output status) |
| Cable | 1 m straight cable (custom length available) |
| Material | Aluminum alloy, PMMA |
| Scanning Window Process | None (nano electroplating with dust cover available as option) |
| Protection Rating | IP65 |
| Object Reflectivity | 2 ~ 1000% |
| Ambient Light | < 80000 Lux (sunlight resistant) |
| Operating Environment | Indoor, -10°C ~ 50°C, < 80% RH (non-condensing) |
