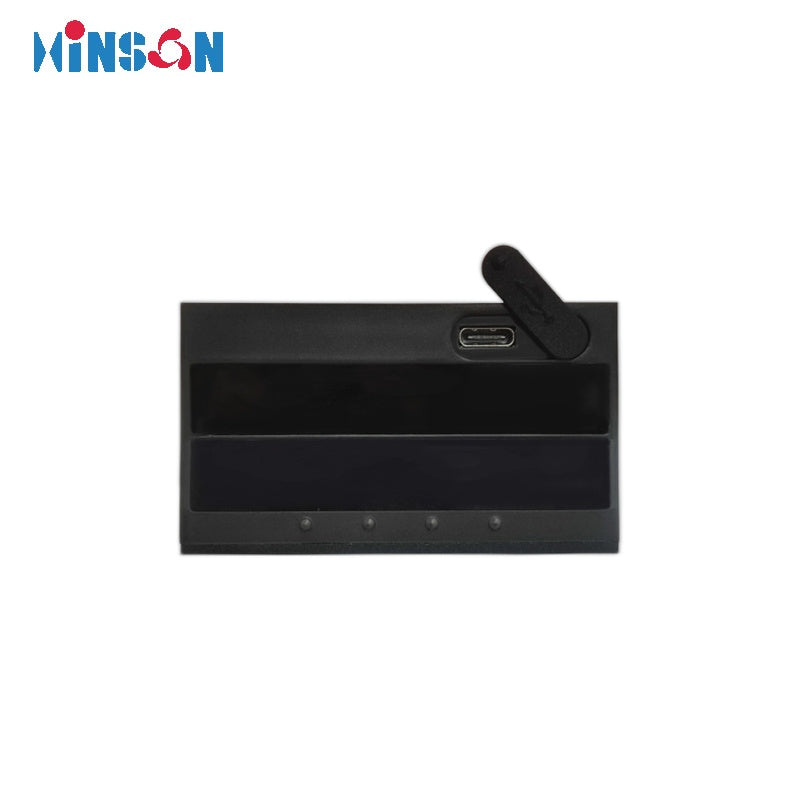

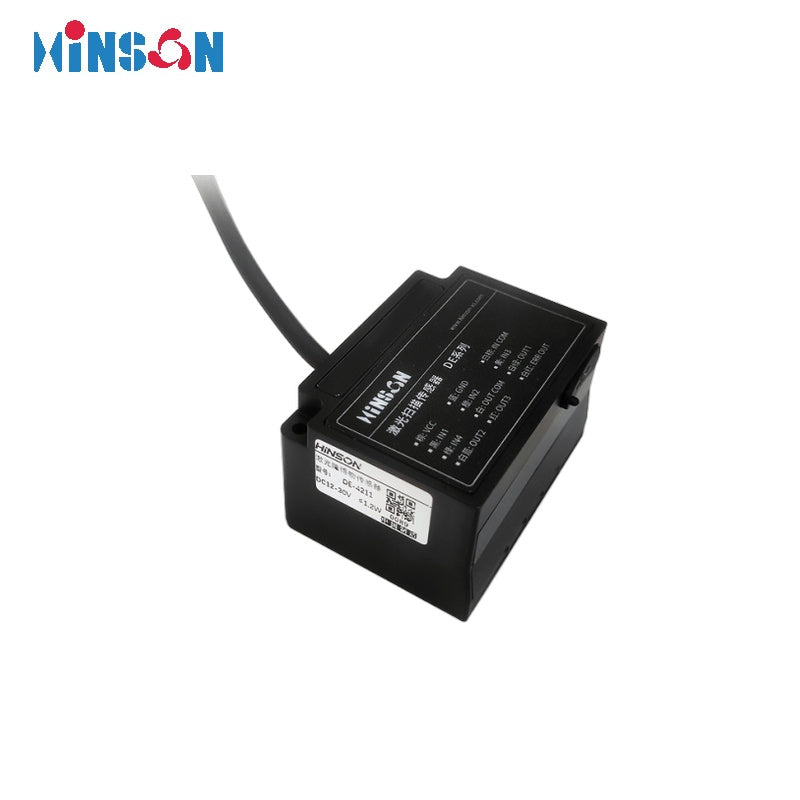

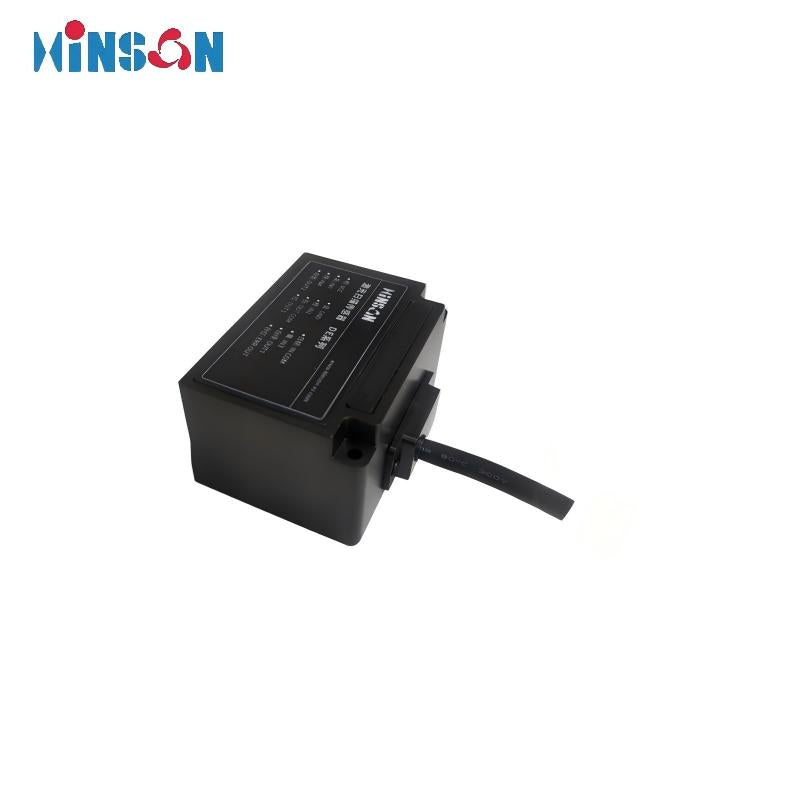

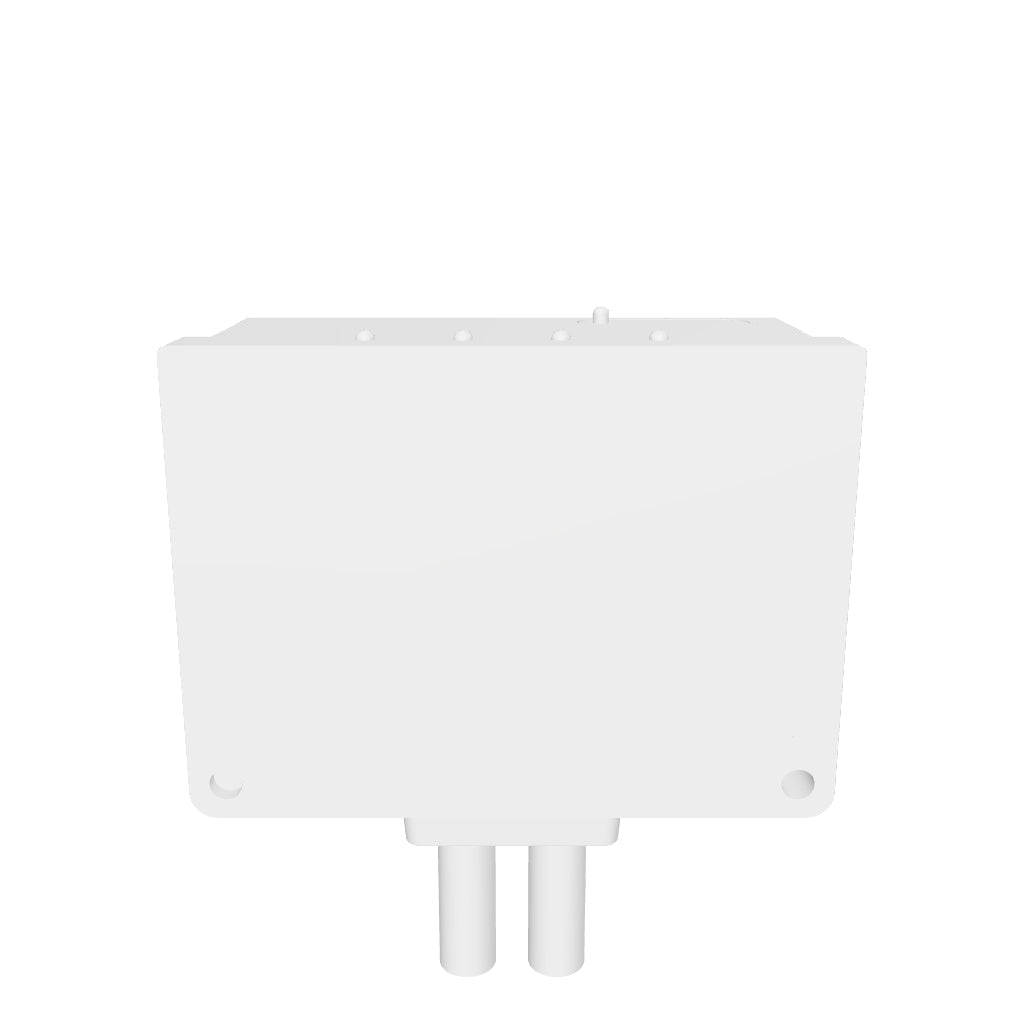

Hinson DE-4511 LiDAR

$175.00

Version

DE-4511

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Parameter	Value
Detection Distance (90% reflectivity)	0.05 m ~ 4 m
Detection Distance (10% reflectivity)	0.05 m ~ 1.5 m
Detection Angle	120° (4-line, vertical angle 12°)
Scan Frequency	10 Hz × 4
Point Cloud Resolution	0.1°/ 0.2°
Measurement Accuracy	±40 mm
Measurement Noise	±10 mm
Detection Output Delay	0‑500 ms configurable
Detection Hold Delay	0‑500 ms configurable
Recognizable Object Shape	Any shape, resolution depends on detection distance

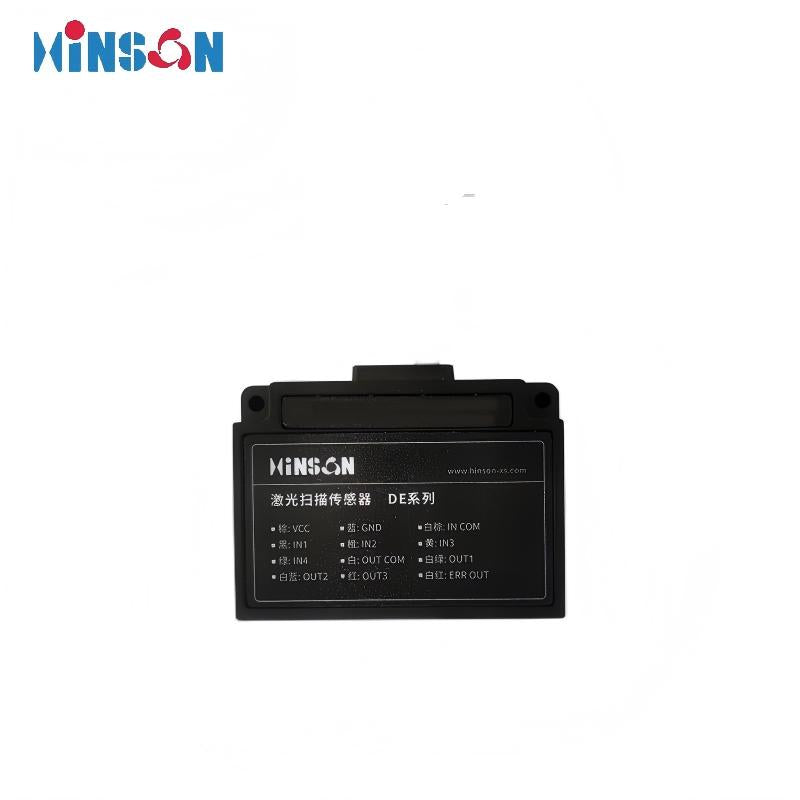

Digital Input	4 × NPN
Port configuration	TCP/UDP
Raw measurement data output	Supported
Number of Channels	64 (each channel provides 3 independent detection zones)
Operating Voltage	DC 18 ~ 30 V
Rated Power	< 1.2 W
Laser Class	905 nm Class 1 (IEC 60825-1:2014)

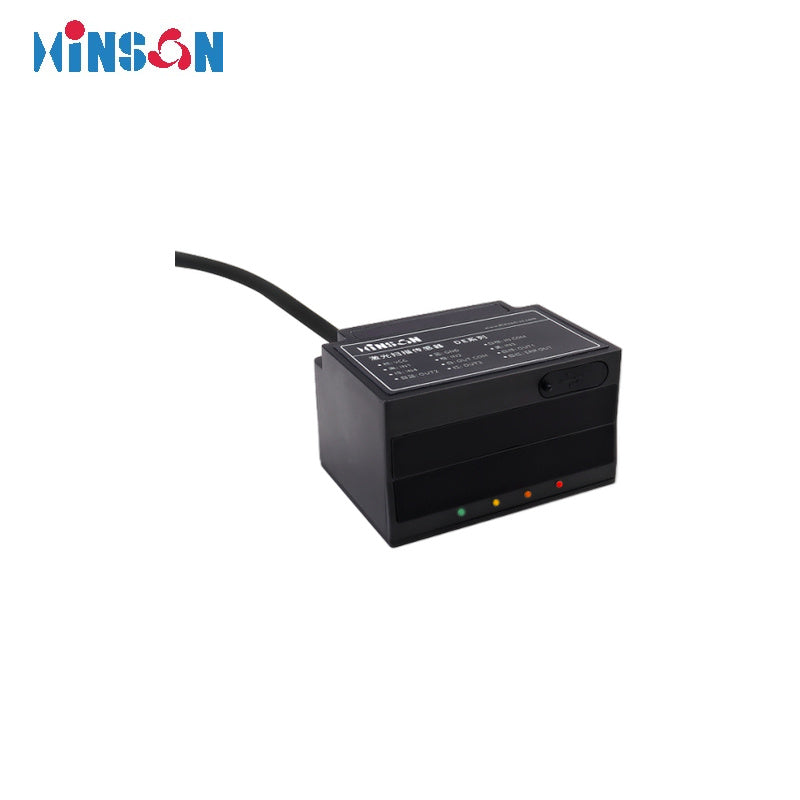

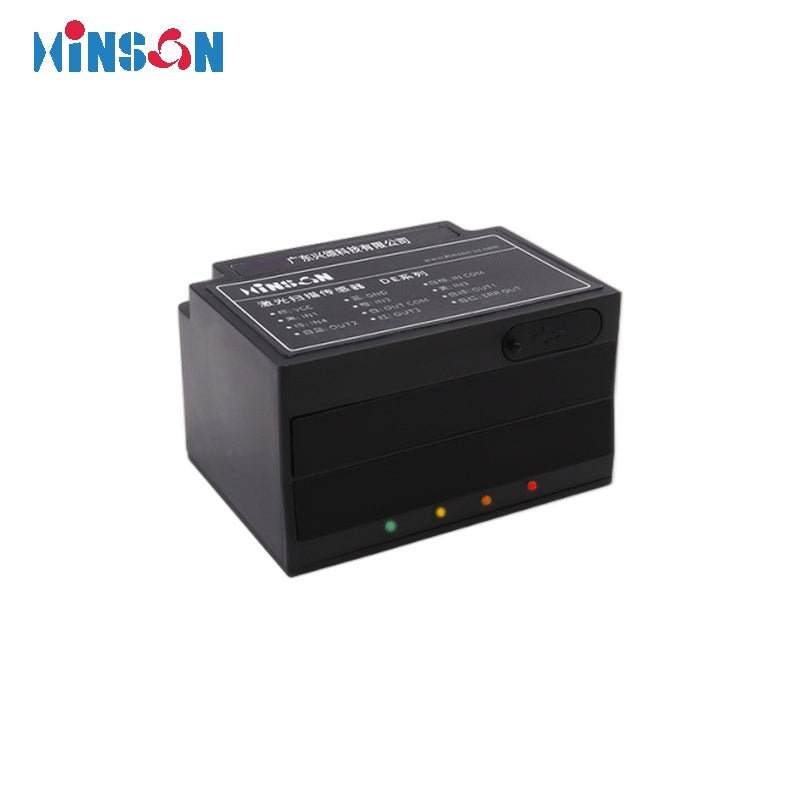

Indicator LEDs	Green (Power), Yellow (Output 1), Orange (Output 2), Red (Output 3)
Cable	1.5 m (custom length available)
Object reflectivity	2–1000%
Ambient Light	< 80000 Lux (sunlight resistant)
Operating Environment	Indoor, -10°C ~ 50°C, < 80% RH (non‑condensing)
