GALBOT | SKU:

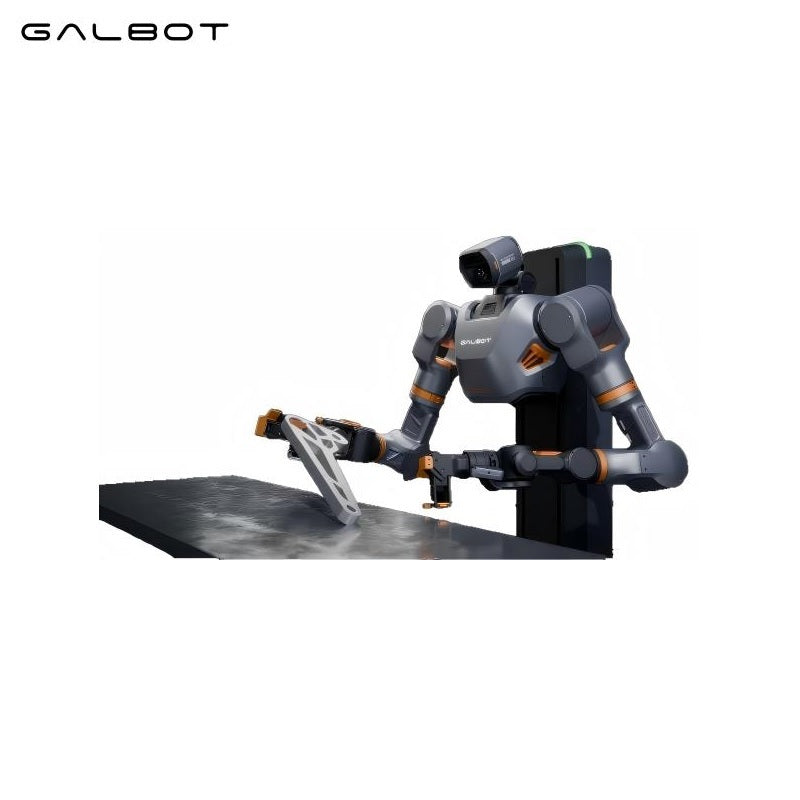

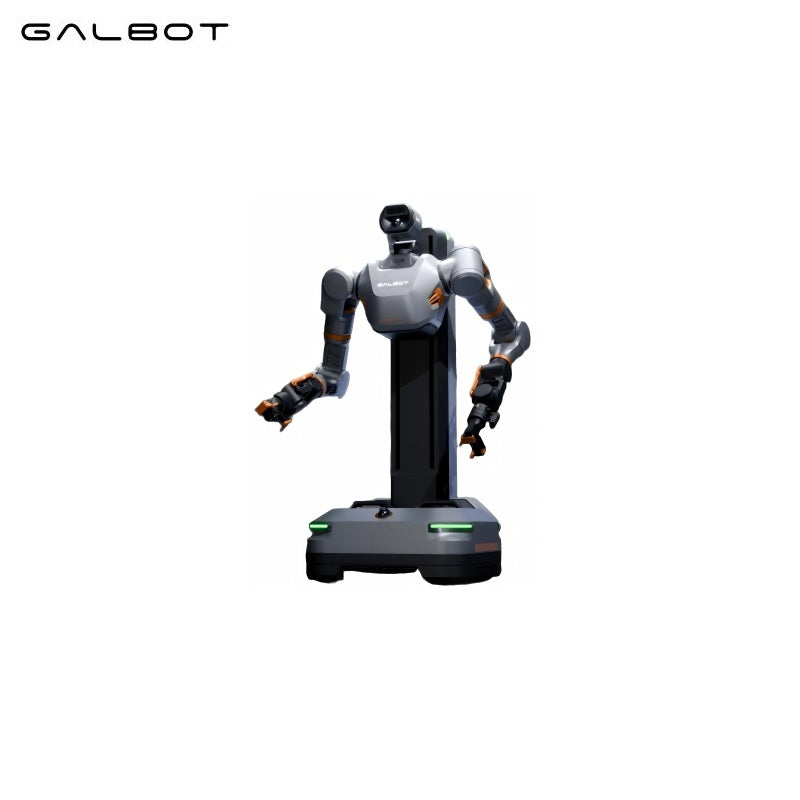

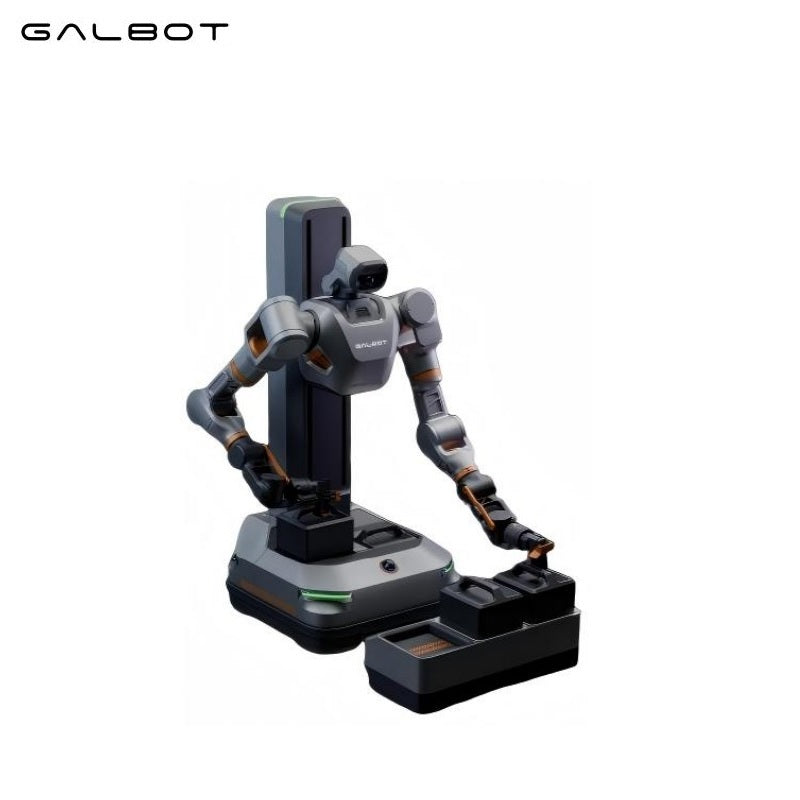

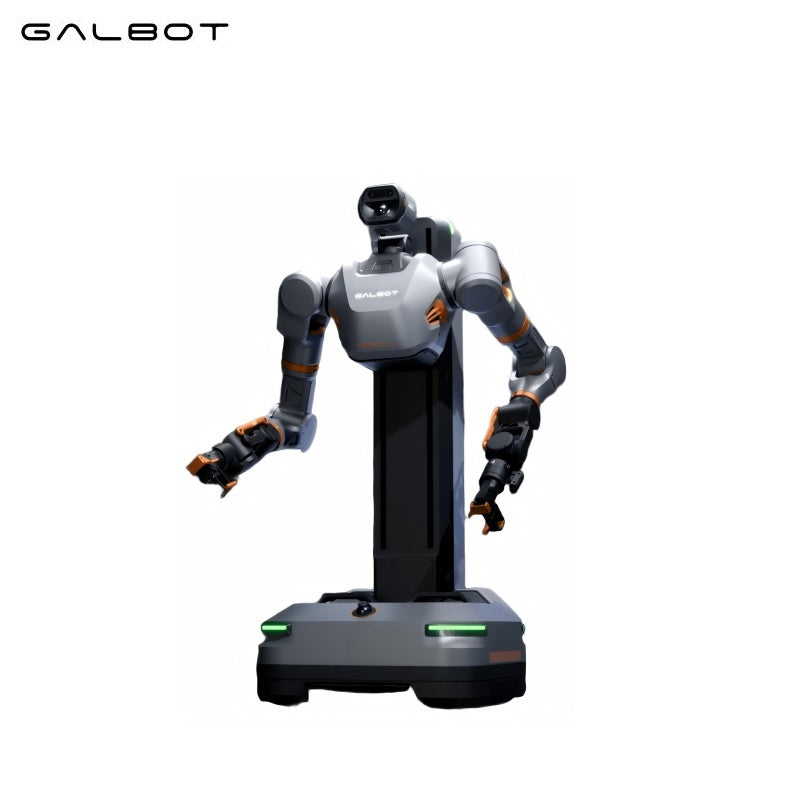

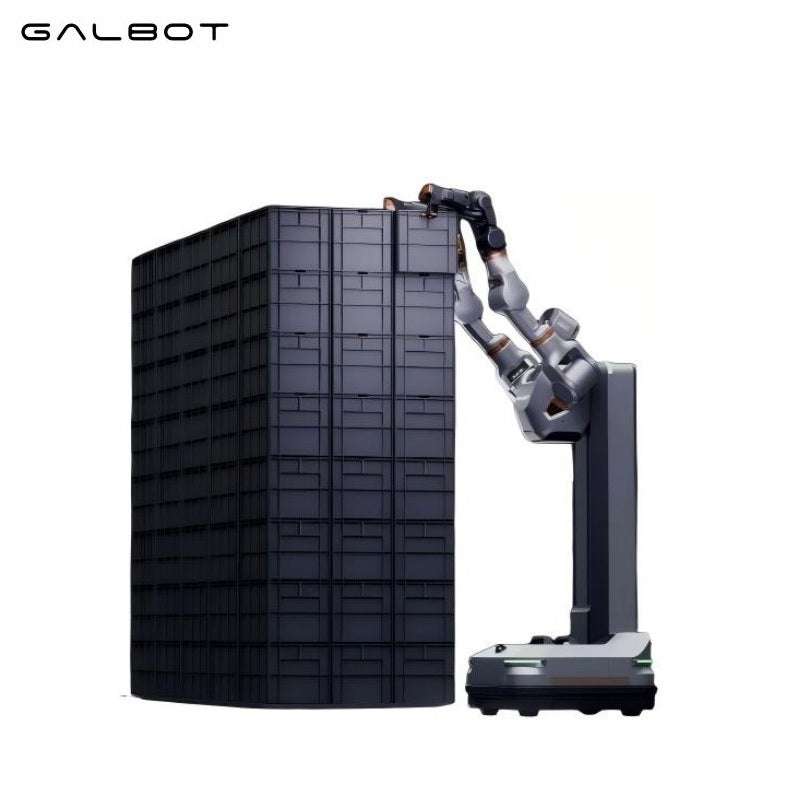

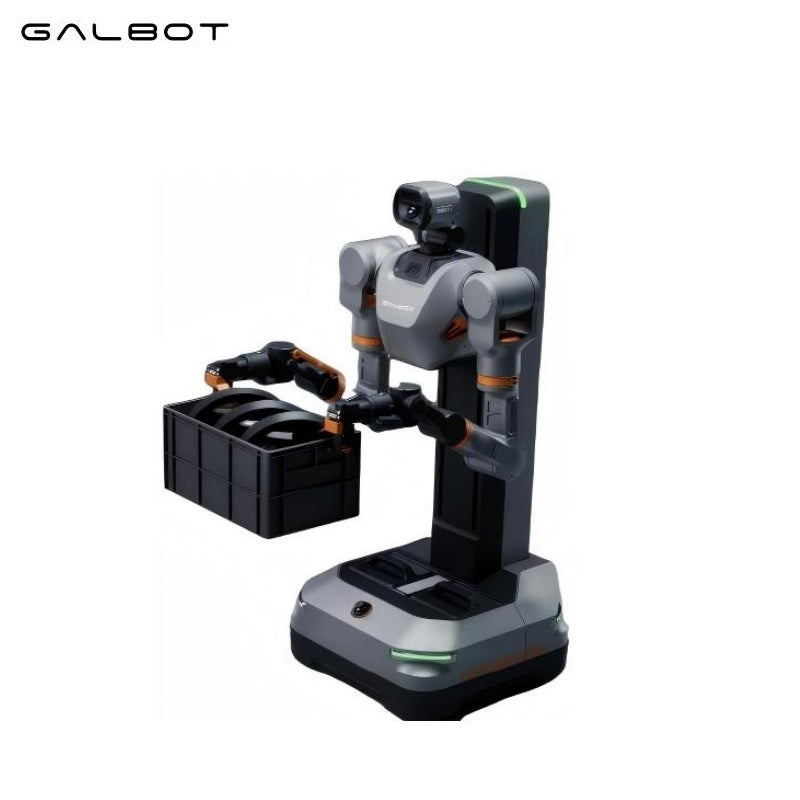

Galbot S1 Heavy-Duty Robot
Regular price
$300,000.00
Unit price
Galbot S1 Heavy-Duty Robot - S1 Heavy-Duty Robot is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Galbot S1 Heavy-Duty Robot
Regular price
$300,000.00
Unit price
Galbot S1 Heavy-Duty Robot - S1 Heavy-Duty Robot is backordered and will ship as soon as it is back in stock.
Product Information
Technical Specifications
| Parameter | |
|---|---|
| Overall Parameters | |
| Overall Height (Max) | 1793mm |
| Arm Length (from shoulder center to wrist) | 920mm |
| Lift Travel | 750mm |
| Total Weight | 320kg |
| Operating Environment |
0-40°C 0%-90% RH (no condensation) |
| Payload | Single Arm: 15 kg Total: 30 kg |
| Working Space (Arm Center to Wrist) | 0-2400 mm Weight: 2390 mm |
| System | |
| Platform | NVIDIA AGX Orin 64GB 275TOPS |
| Screen | 7-inch touchscreen |
| Speakers | 5W x2 |
| Network | WiFI2.4/5GHz Bluetooth 5.2 |
| Sensors | |
| Head | Dual RGB Cameras x1 3D Radar x1 |
| Chest (Left and Right) | Depth Cameras x2 Arm Six-Degree-of-Freedom Force Sensors x2 |
| Mobile Base | 3D Radar x2 |
| Degree of Freedom (without base/end effector) | |
| Neck | 2 |
| Arms | 7 x 2 |
| Lift | 1 |
| Mobile Base | |
| Base Type | 4-Wheel Omni-directional Mobile Base |
| Base Dimensions (Length/Width) | 730mm x 730mm |
| Maximum Speed | 1.5m/s |
| Endurance and Charging | |
| Work Duration | 8 hours |
| Charging Time | 2 hours (with compatible charger) |
| Battery Capacity | 48V 30Ah x2 |
| Hot-Swappable Battery | Supported |
| Accessories | |
| Wireless Controller | Standard |
| Wired Charger | Standard |
| Standard | Power Button Emergency Stop Button |
| Expansion Ports | USB3.0 x2 Network Port |
