ENGINEAI

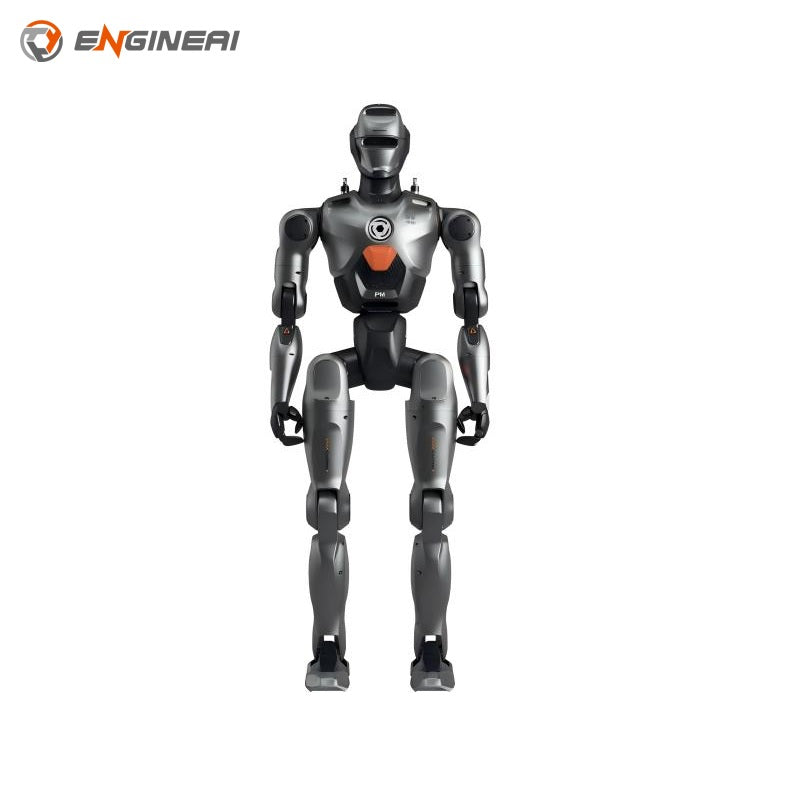

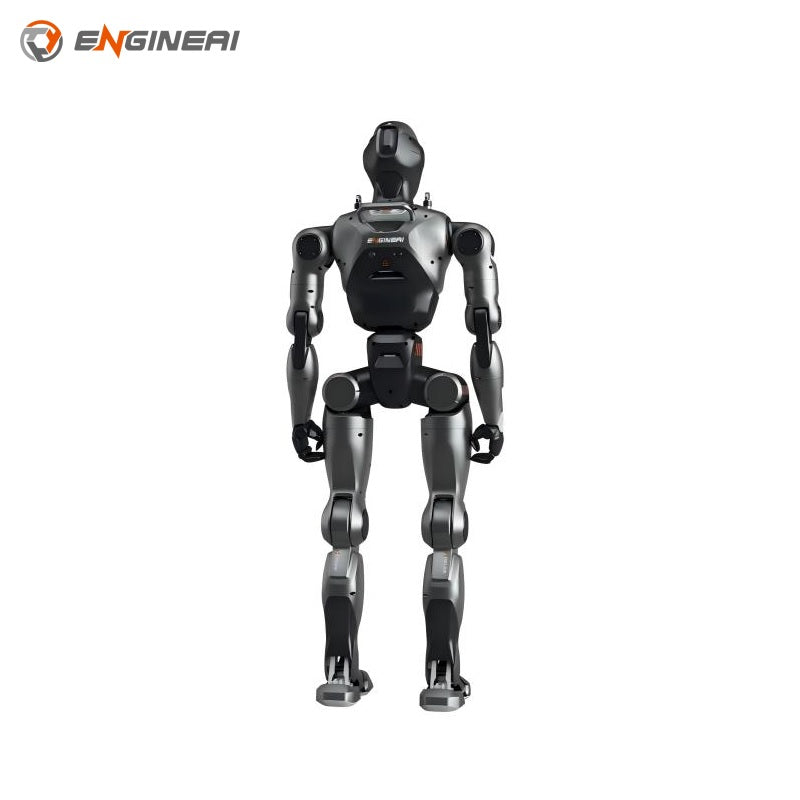

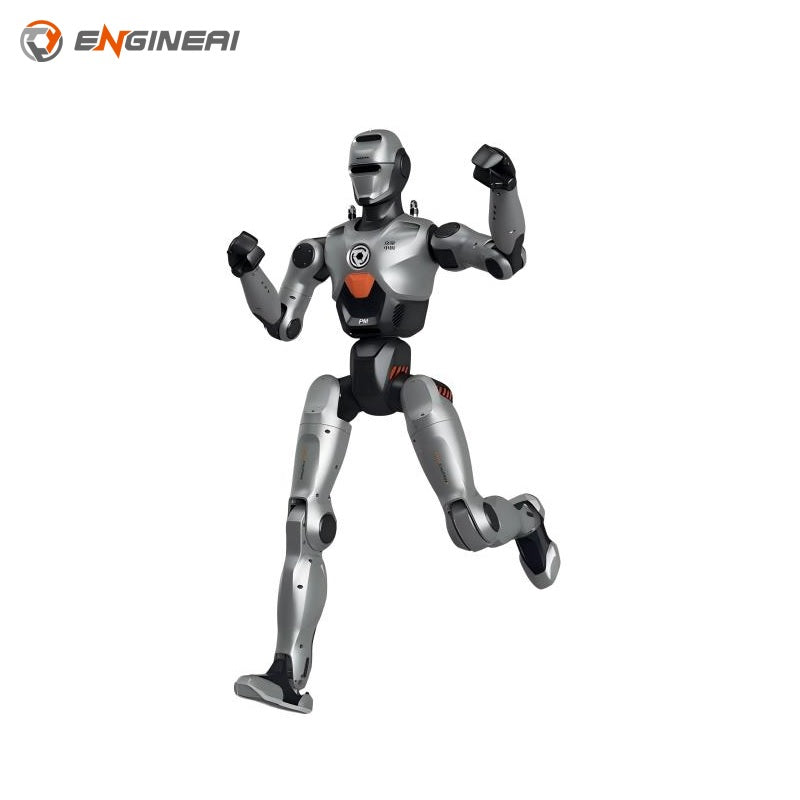

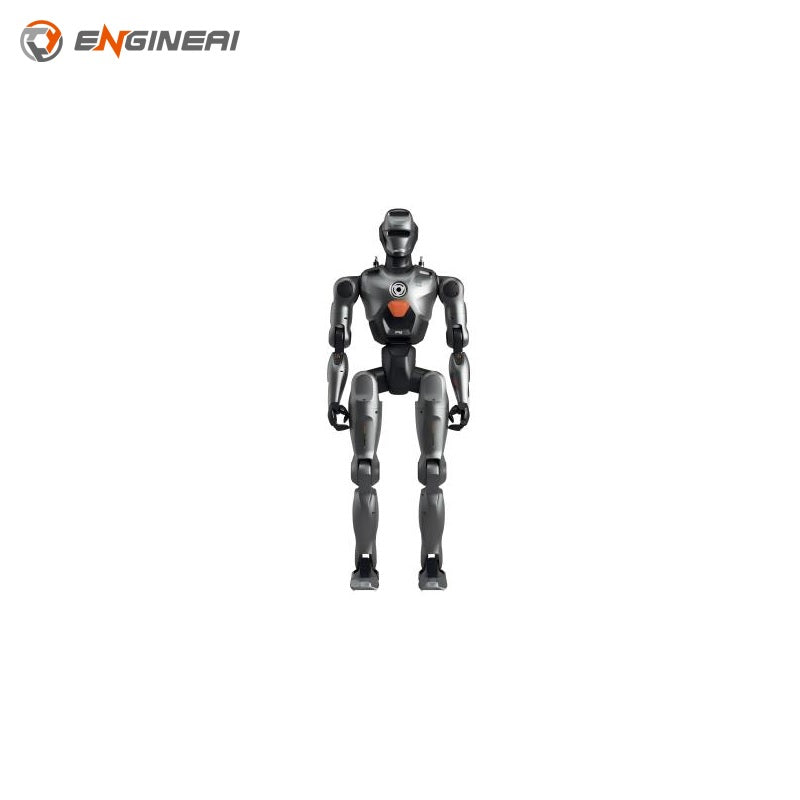

ENGINEAI PM01 Robot

$39,500.00

Version

Education Edition

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Parameter	Education Edition
Dimensions (L × W × H, standing)	1400(H) x 535.55(W) x 252.66(D)
Weight (including battery)	nearly 43kg
Calf and thigh length	686.5mm
Arm span	1.44m
Total DOF	24
Fully Hollow-Joint Internal Routing	√
Joint Motion Space	lumbar joint：-230°~90° Hip joint:R-29°~+134°、P-180°~+140°、Y-90°~+230° knee joint：-30°~+137
Movement Speed	＞2m/s(Hardware Support)
Perception Sensor	Two depth cameras (head and waist)
Basic computing power	4-core high-performance CPU
High-Performance Computing Module	NVIDIA Jetson Orin NX (16G)
Secondary development	support
Smart Battery (Quick-Release)	10000mAh
Battery life	nearly 2 hour
Charging Power	54.6V 4.5A
Charging speed	nearly 2 hour
Lighting Configuration	Eye lamp, Buttock lamp
Handheld Remote Control	√
Touch screen	√
Joint encoder	Dual Encoding
Joint Type	Planetary
Maximum Torque (Nm)	50
Peak torque density	100 Nm/kg
Maximum speed (rpm)	8400
Reduction ratio	25
quanlity（kg）	0.5
