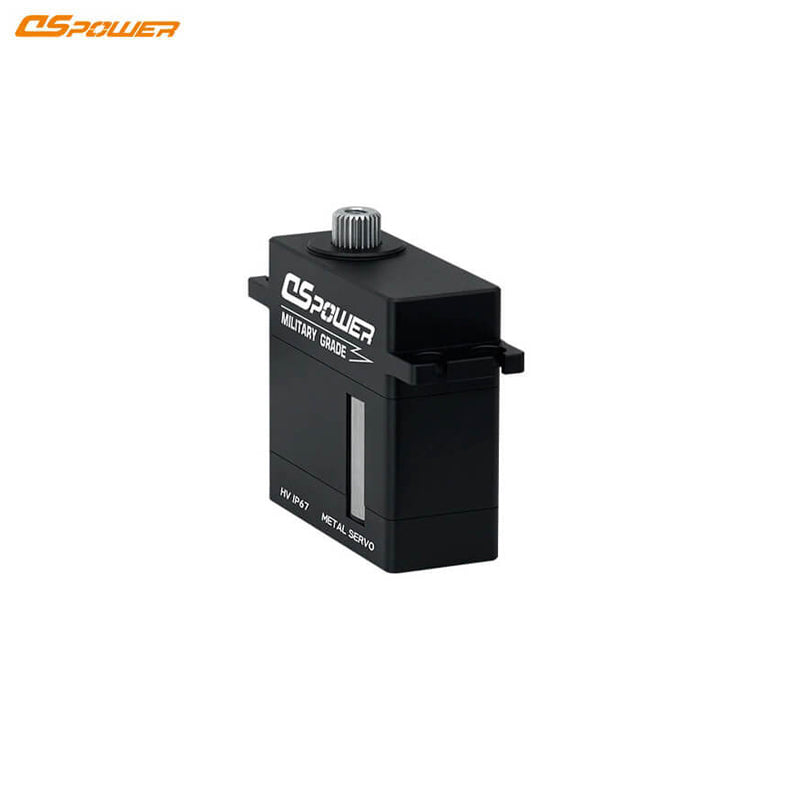

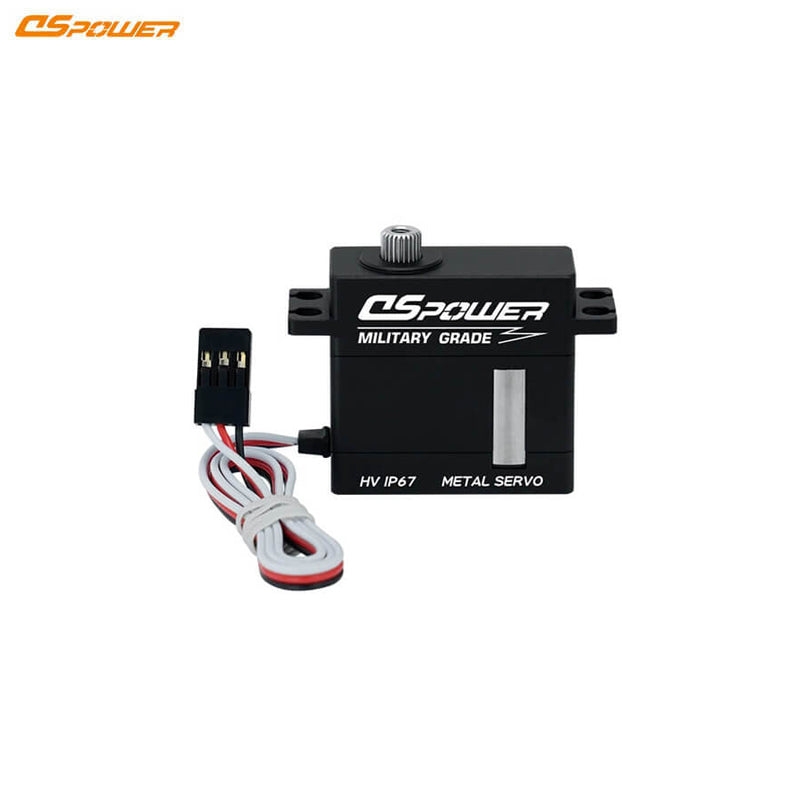

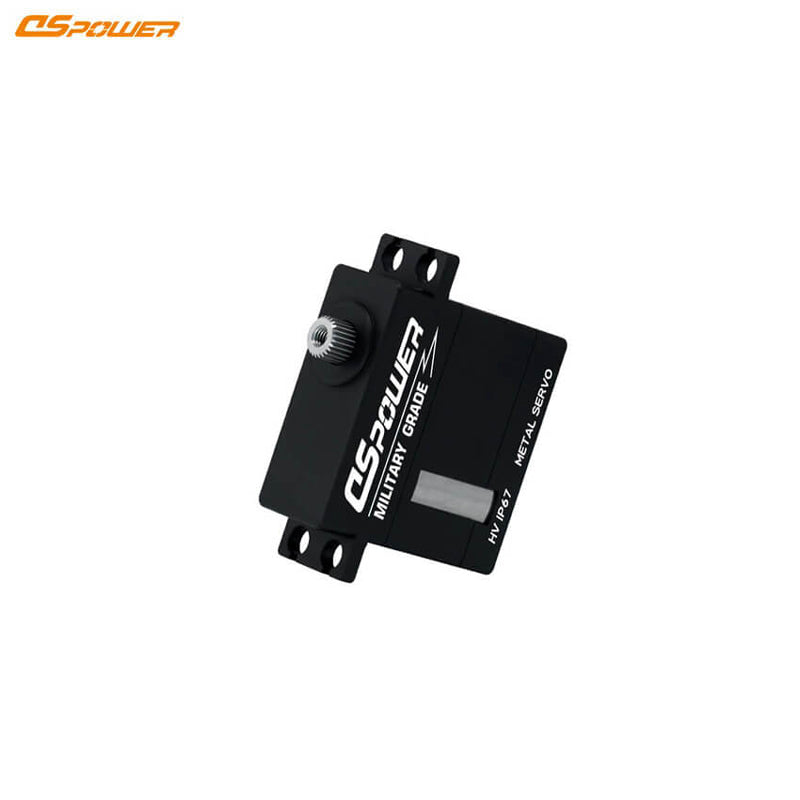

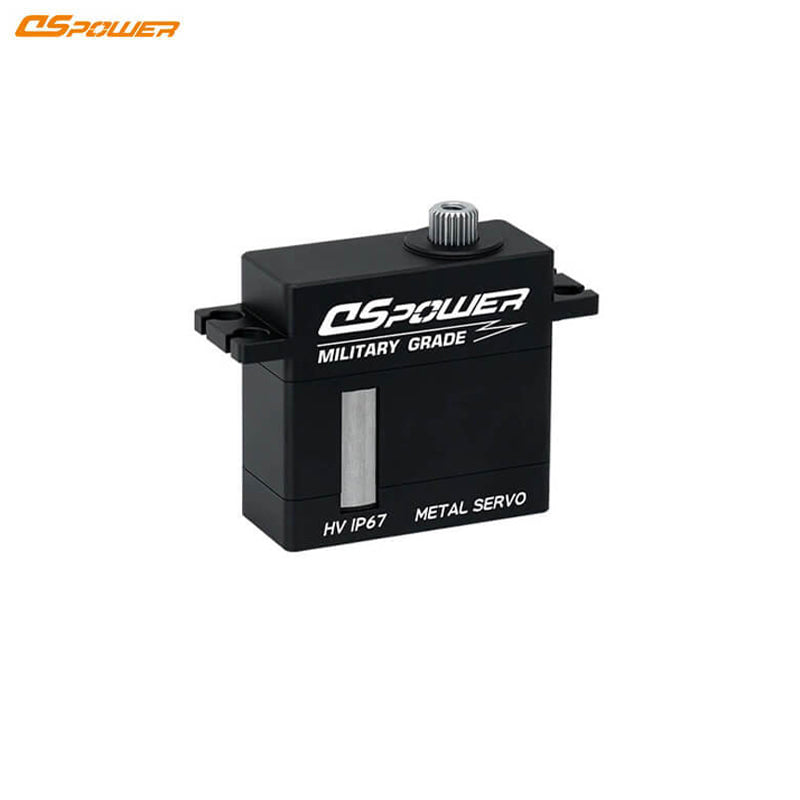

DSpower DS-W011A Servo Motor
Regular price
$150.00
Unit price
DSpower DS-W011A Servo Motor - DS-W011A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-W011A Servo Motor
Regular price
$150.00
Unit price
DSpower DS-W011A Servo Motor - DS-W011A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working Voltage | 6.0~8.4V DC |
| Rated voltage | 7.4V DC |
| Rated torque | 2.5kgf·cm |
| Quiescent current | ≤50 mA |
| No-load current | ≤200 mA |
| No-load speed | ≤0.11 sec/60° |
| Locked-rotor current | ≤2.8A |
| Locked-rotor torque | ≥12.0kgf·cm |
| Operating angle | 180±10° |
| Mechanical virtual position | ≤1° |
| Communication method | PWM |
| Gear material | Metal Gear |
| Dead zone width | ≤7μs |
