DSpower | SKU:

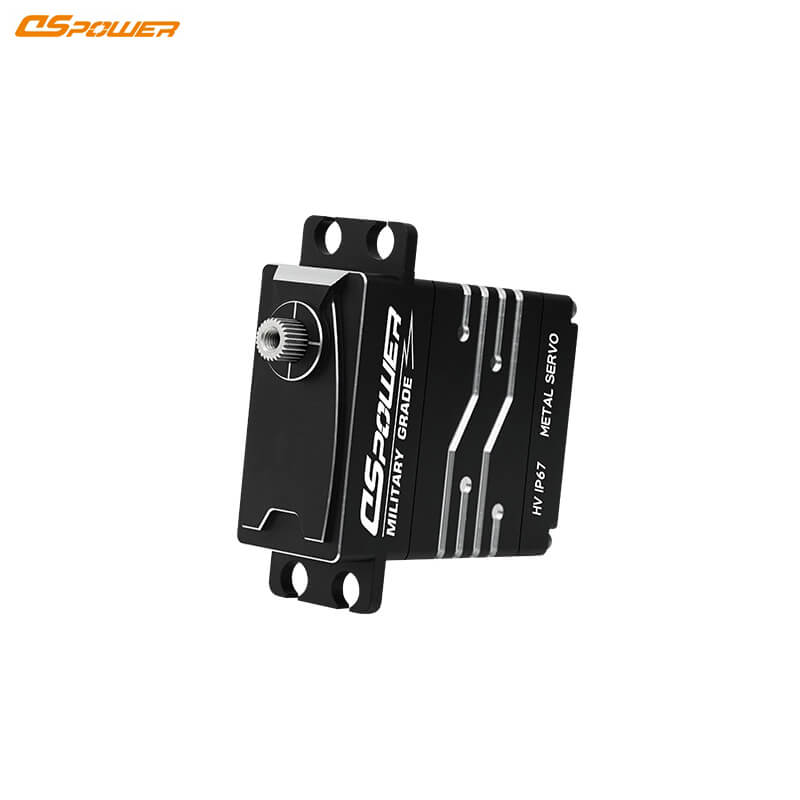

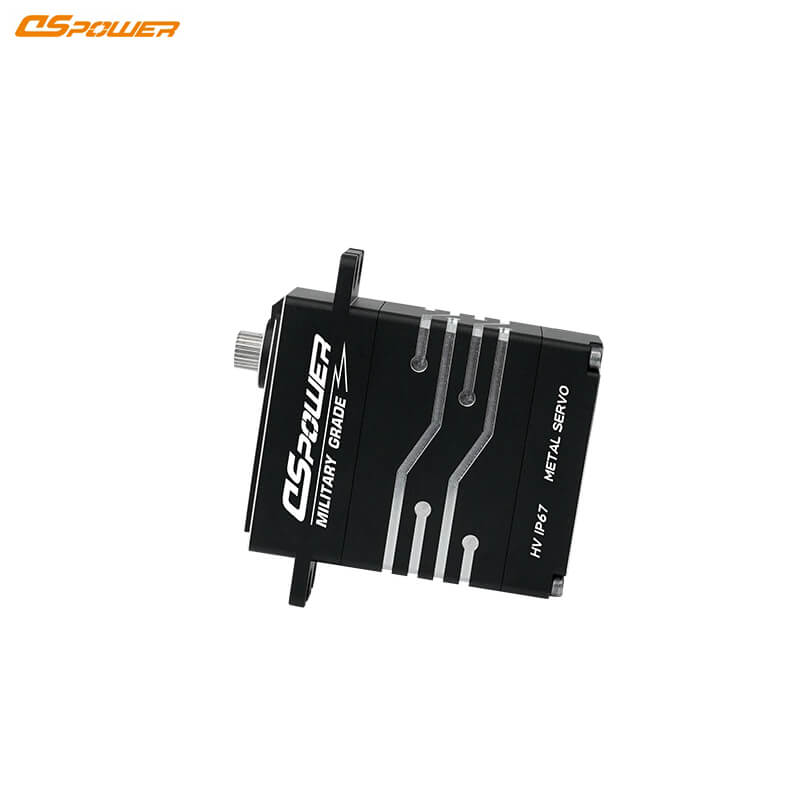

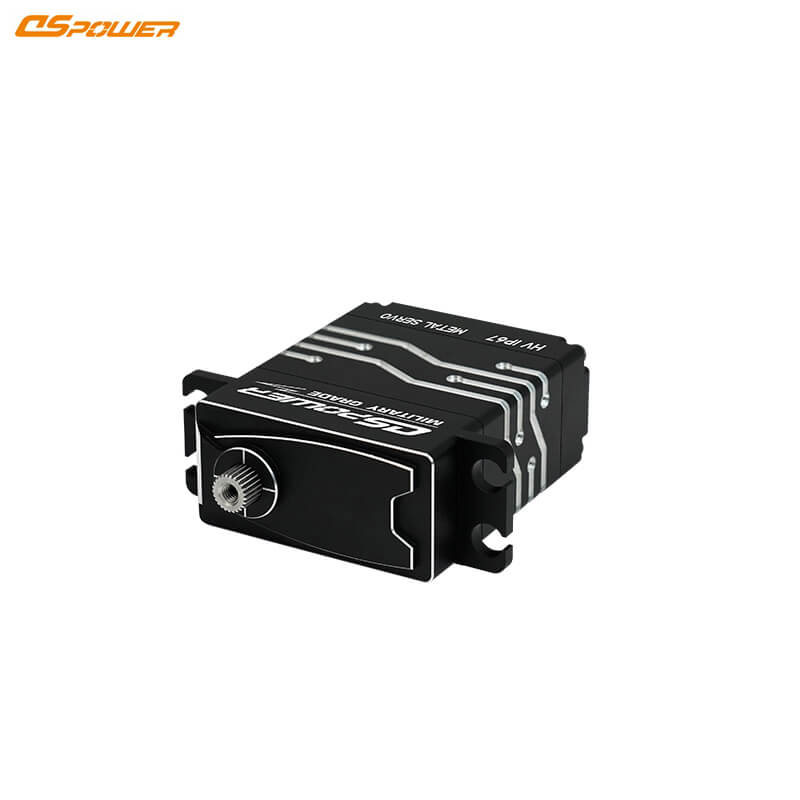

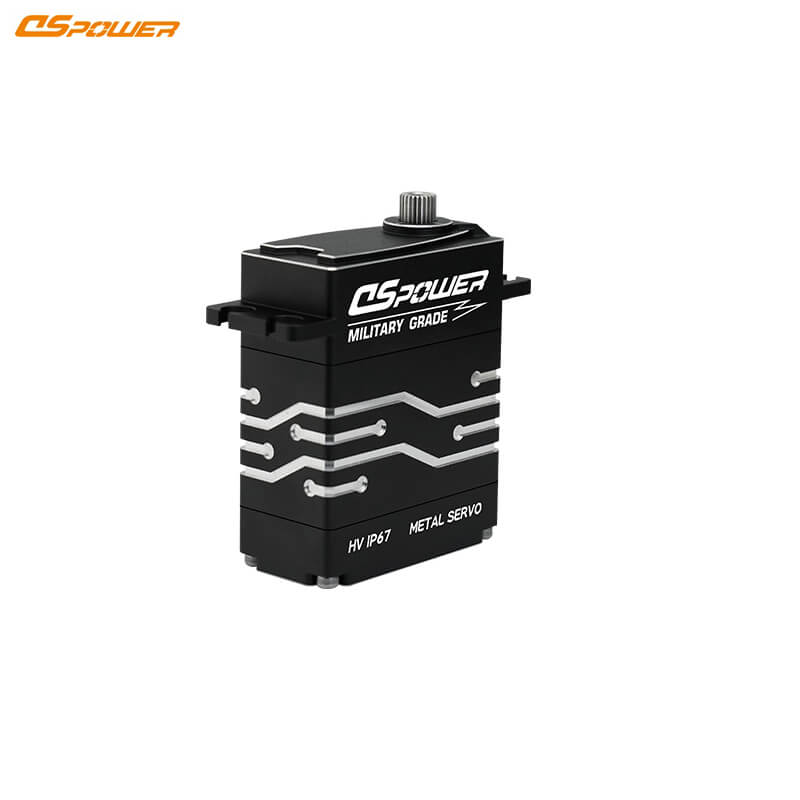

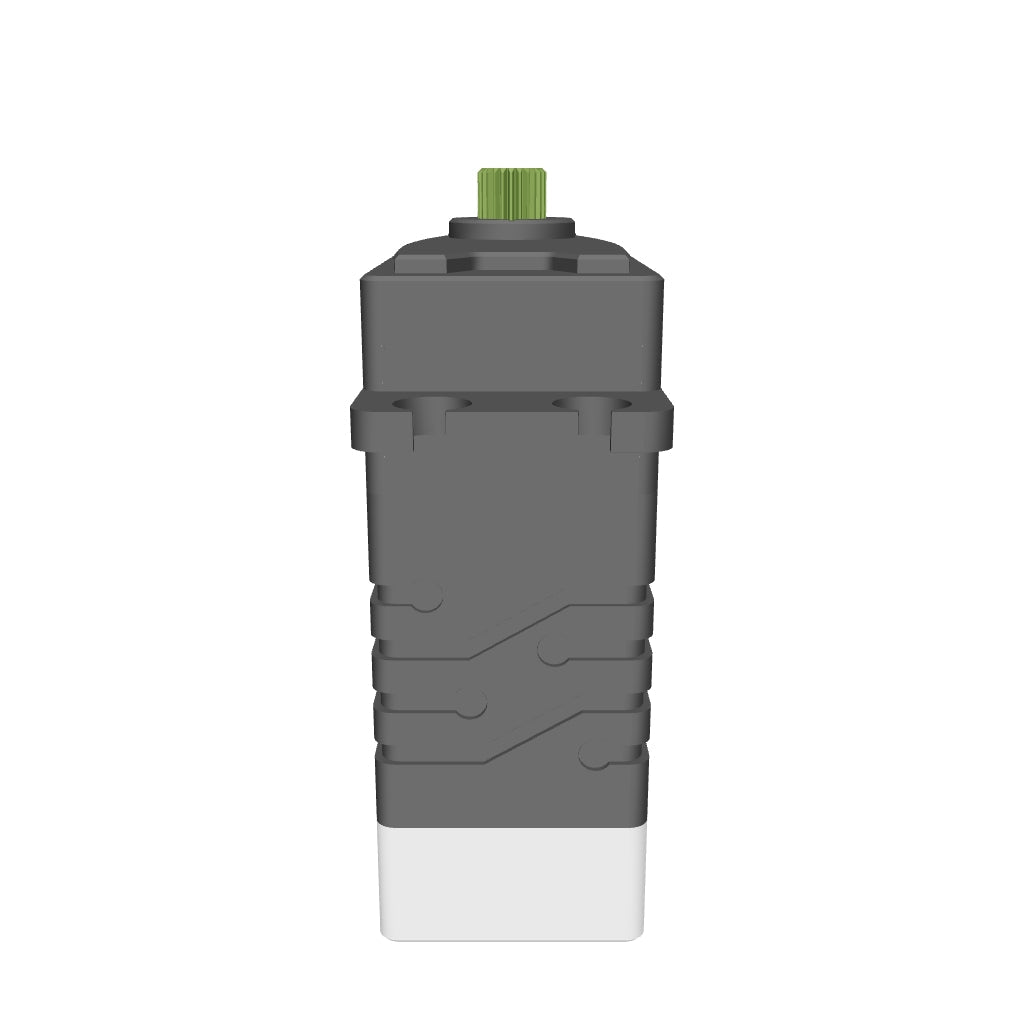

DSpower DS-W007A Servo Motor
Regular price
$1,400.00
Unit price
DSpower DS-W007A Servo Motor - DS-W007A is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-W007A Servo Motor
Regular price
$1,400.00
Unit price
DSpower DS-W007A Servo Motor - DS-W007A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Working voltage | 9~12V |
| Rated voltage | 12.0V |
| Torque | 15kgf·cm |
| Static current | ≤50mA |
| No-load current | ≤350mA |
| No-load speed | ≤0.10sec./60° |
| Locked-rotor current | ≤7A |
| Locking torque | ≥60kgf·cm |
| Operating angle | ±100° |
| Mechanical virtual position | ≤0.5° |
| Communication model | PWM |
| Gear material | All metal gear set |
| Weight | 108±5.0g |
