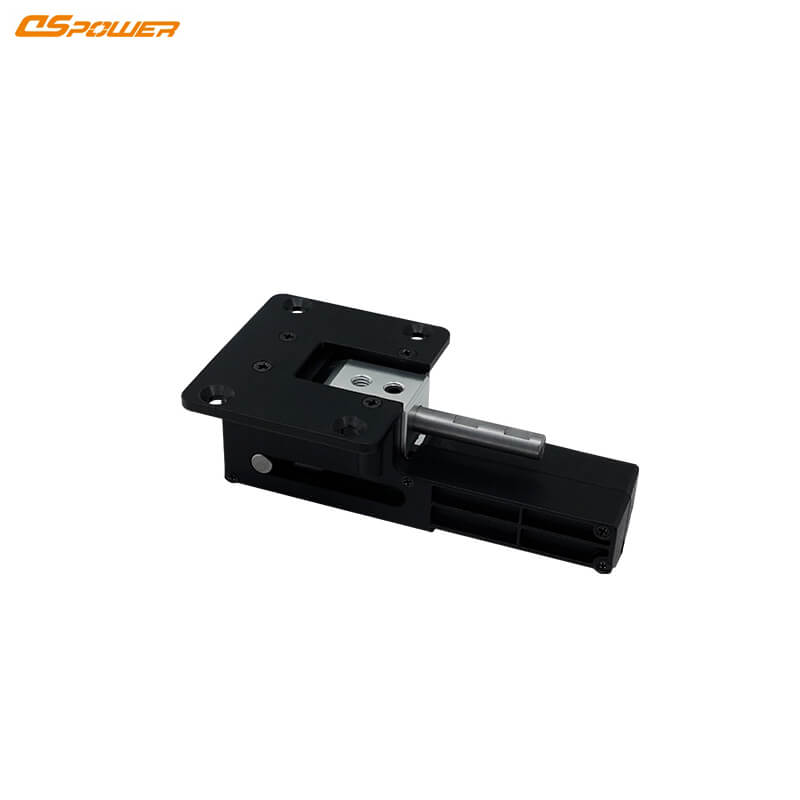

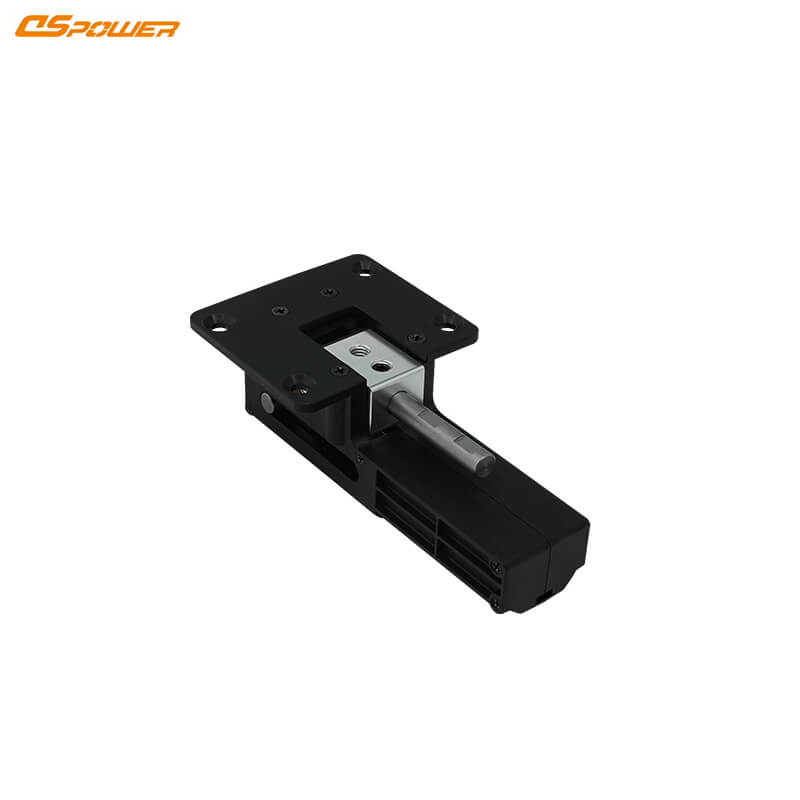

DSpower DS-U006 Servo Motor
Regular price
$40.00
Unit price
DSpower DS-U006 Servo Motor - DS-U006 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-U006 Servo Motor
Regular price
$40.00
Unit price
DSpower DS-U006 Servo Motor - DS-U006 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 4.8~6.0V DC |
| Rated Voltage | 6.0V |
| Rated Torque | 1.75kgf·cm |
| No Load Current | ≤180mA |
| Stall Current | ≤1.5A |
| No-load speed | < 5s/90° |
| Dynamic Torque | 7kgf·cm |
| Pulse Width Range | 300μs~2700μs |
| Operating Travel Angle | 0°/83° |
| Backlash | 0.5° |
| Weight | 93g ± 1g |
| Mechanical Limit Angle | 90° |
| Wire length | 210mm |
