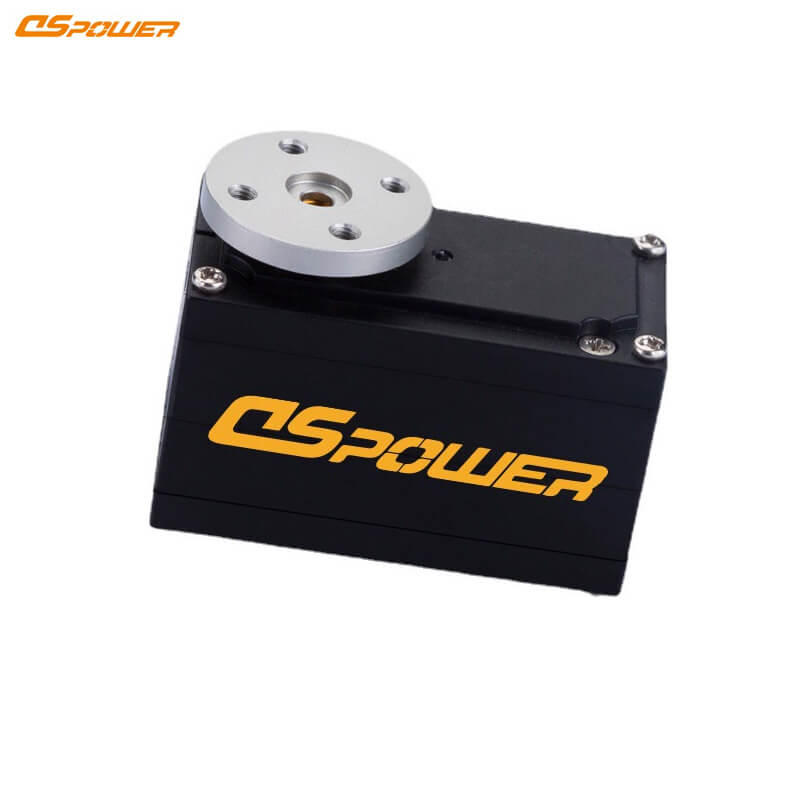

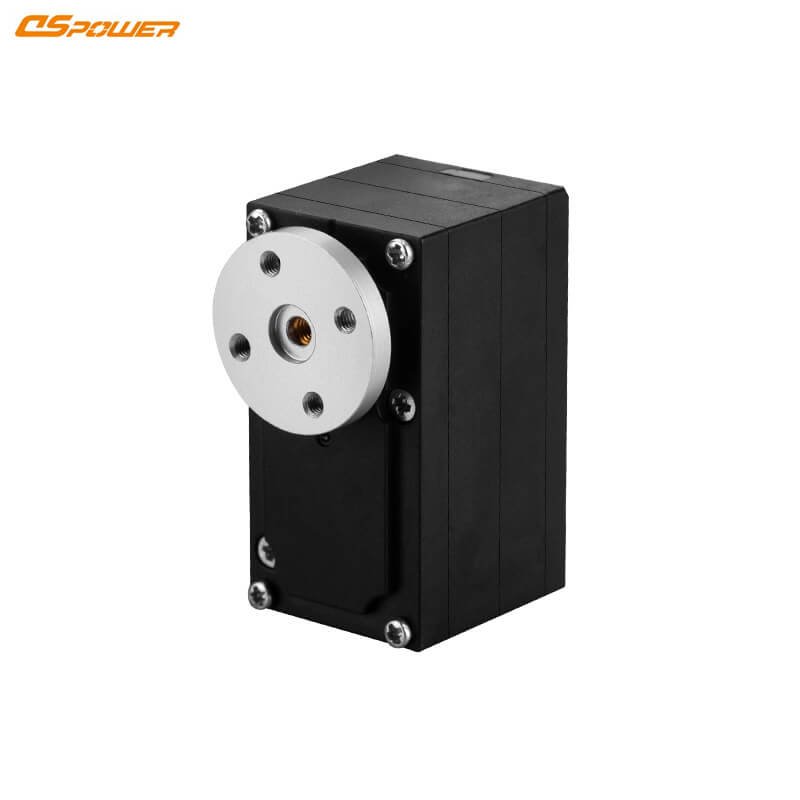

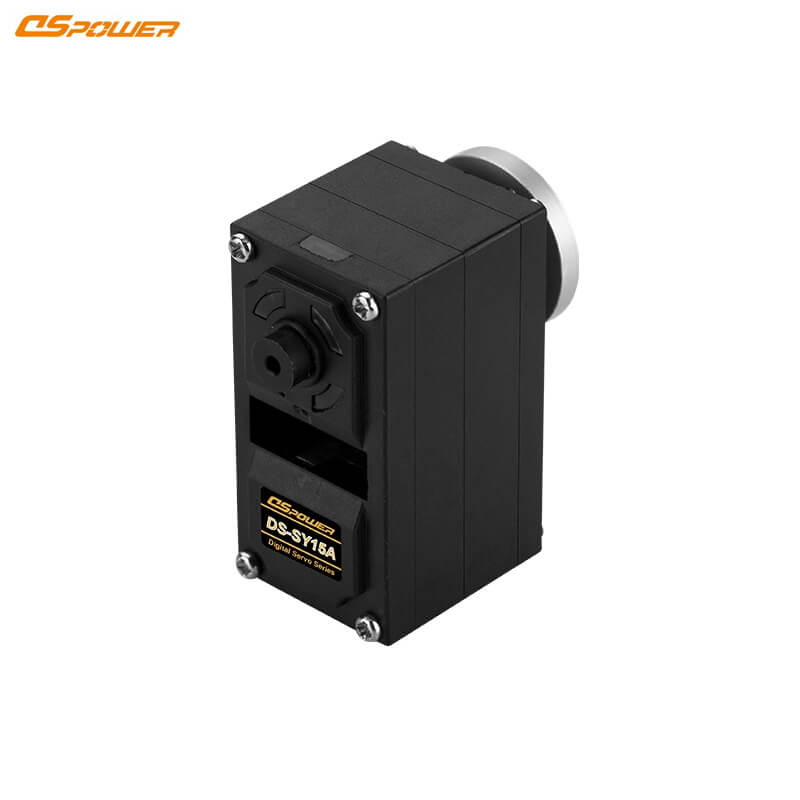

DSpower DS-SY15A Servo Motor
Regular price
$30.00
Unit price
DSpower DS-SY15A Servo Motor - DS-SY15A is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 5.0–12.6 V DC |
| No Load Current | ≤400 mA at 7.4V |
| Stall Current | ≤3.2 A at 7.4V |
| Stall Torque | ≥15 kgf·cm at 7.4V |
| Rotating Direction | CCW (96→4000) |
| Pulse Width Range | 0–4095 |
| Operating Travel Angle | 360° |
| Mechanical Limit Angle | 360° |
| Weight | 50 ± 1 g |
| Communication Interface | UART |
