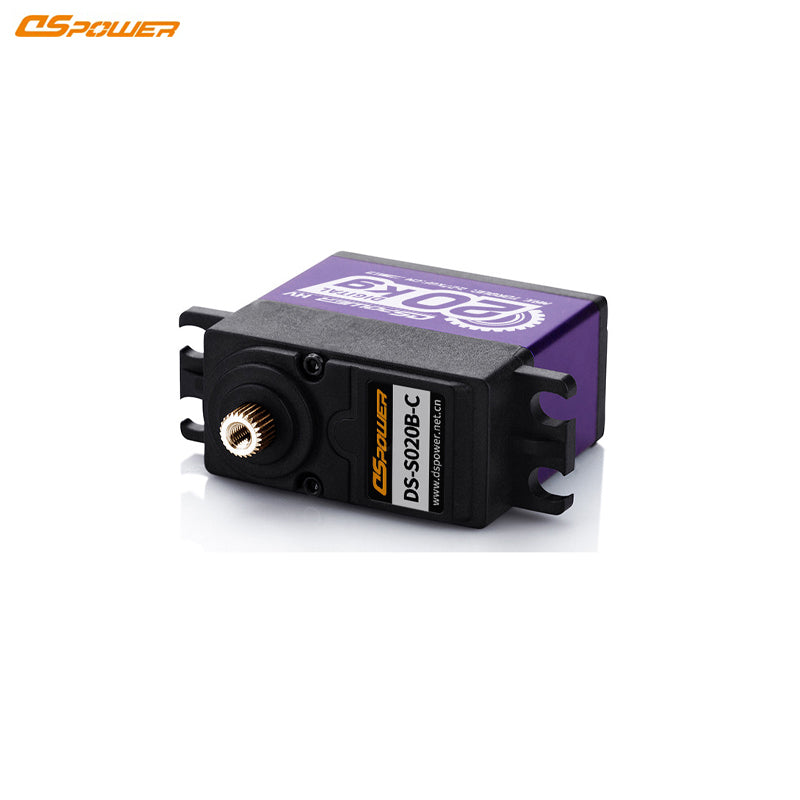

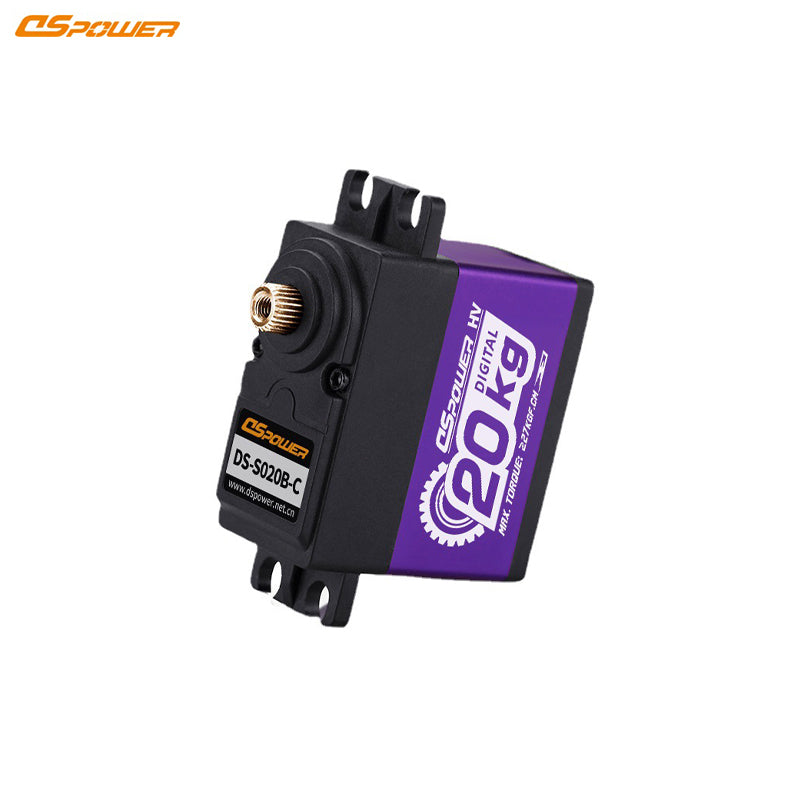

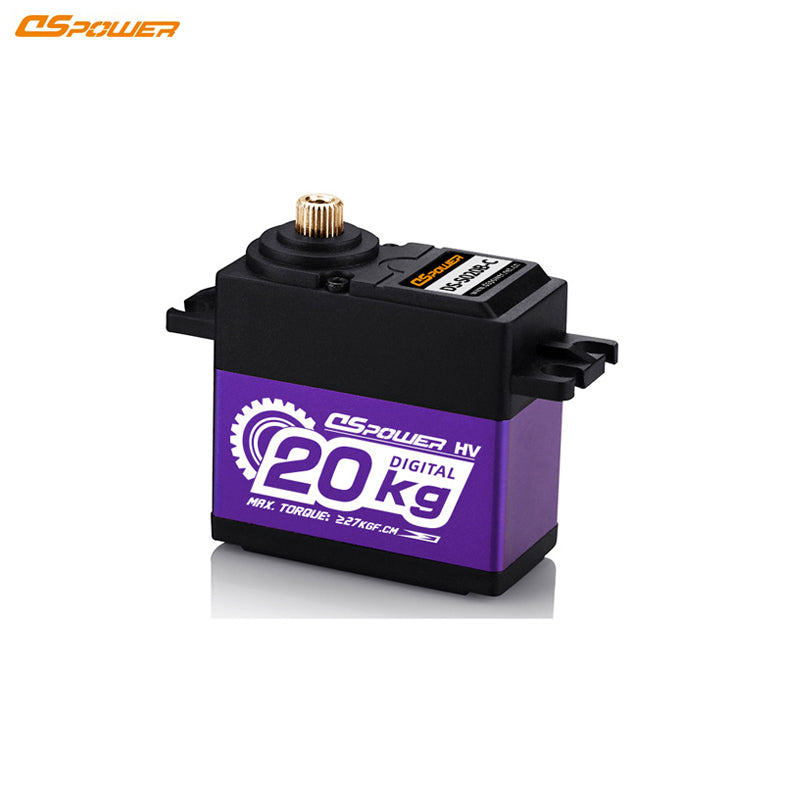

DSpower DS-S020B-C Servo Motor

$30.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 6.0–7.4 V DC
Stall Current ≤3.0 A at 6.0V
≤3.6 A at 7.4V
Rated Torque ≥22 kgf·cm at 6.0V
≥28 kgf·cm at 7.4V
No-Load Speed ≤0.26 Sec/60° at 6.0V
≤0.22 Sec/60° at 7.4V
Pulse Width Range 500–2500 μs
Operating Angle 90° ±10° (1000–2000 μs)
Maximum Operating Angle 180° ±10° (500–2500 μs)
Mechanical Limit Angle 360°
Weight 69 ± 1 g
Housing Material PA+30%GF, Aluminum middle case
Gear Material Metal Gears
Motor Type Core Motor

DSpower DS-S020B-C Servo Motor-DRAW.pdf
