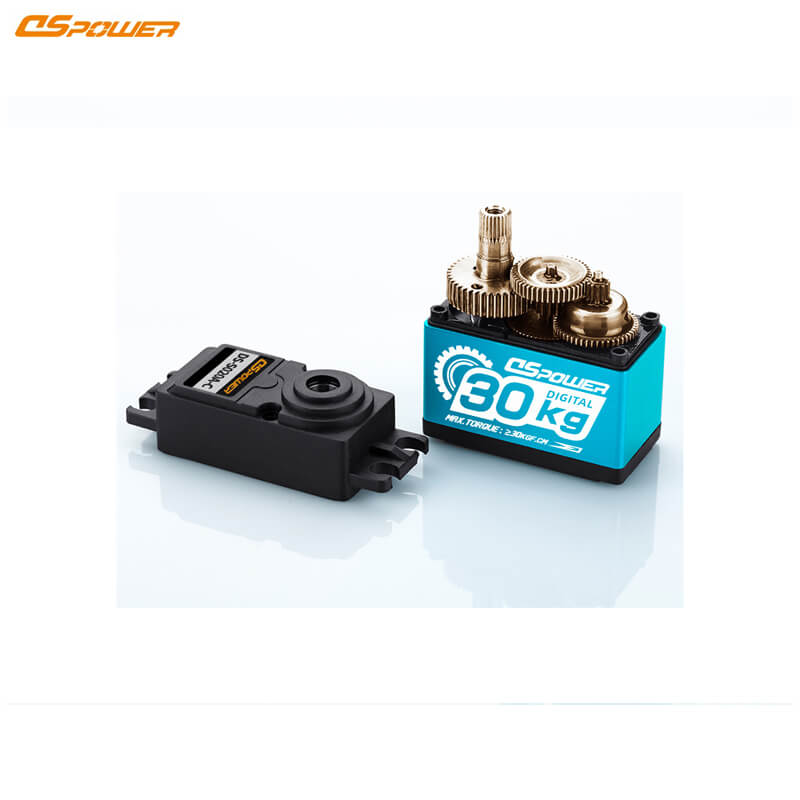

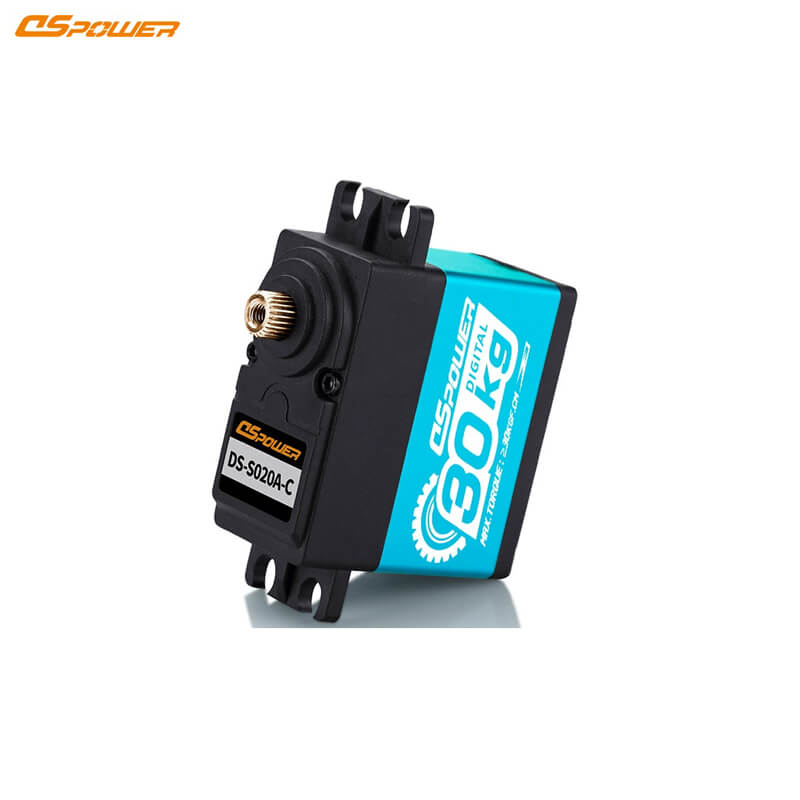

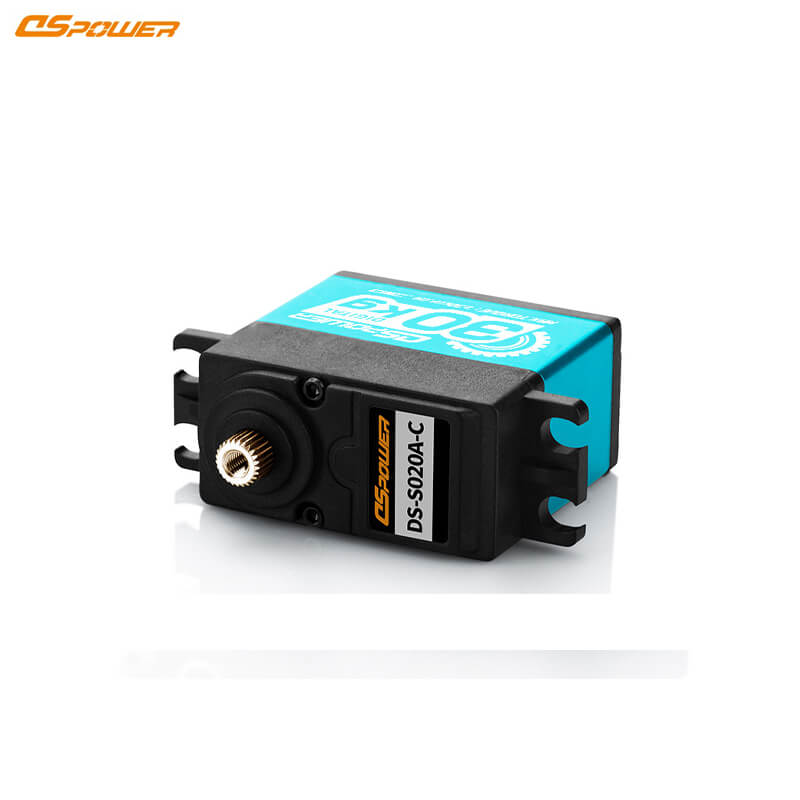

DSpower DS-S020A-C Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S020A-C Servo Motor - DS-S020A-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-S020A-C Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S020A-C Servo Motor - DS-S020A-C is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0–7.4 V DC |
| Stall Current |
≤4.5 A at 6.0V ≤6.0 A at 7.4V |
| Maximum Torque |
≥25 kgf·cm at 6.0V ≥32 kgf·cm at 7.4V |
| No-Load Speed |
≤0.20 Sec/60° at 6.0V ≤0.17 Sec/60° at 7.4V |
| Pulse Width Range | 500–2500 μs |
| Operating Angle | 90° ±10° (1000–2000 μs) |
| Maximum Operating Angle | 180° ±10° (500–2500 μs) |
| Mechanical Limit Angle | 360° |
| Weight | 70 ± 1 g |
| Housing Material | PA+30%GF, Aluminum middle case |
| Gear Material | Metal Gears |
| Motor Type | Core Motor |
