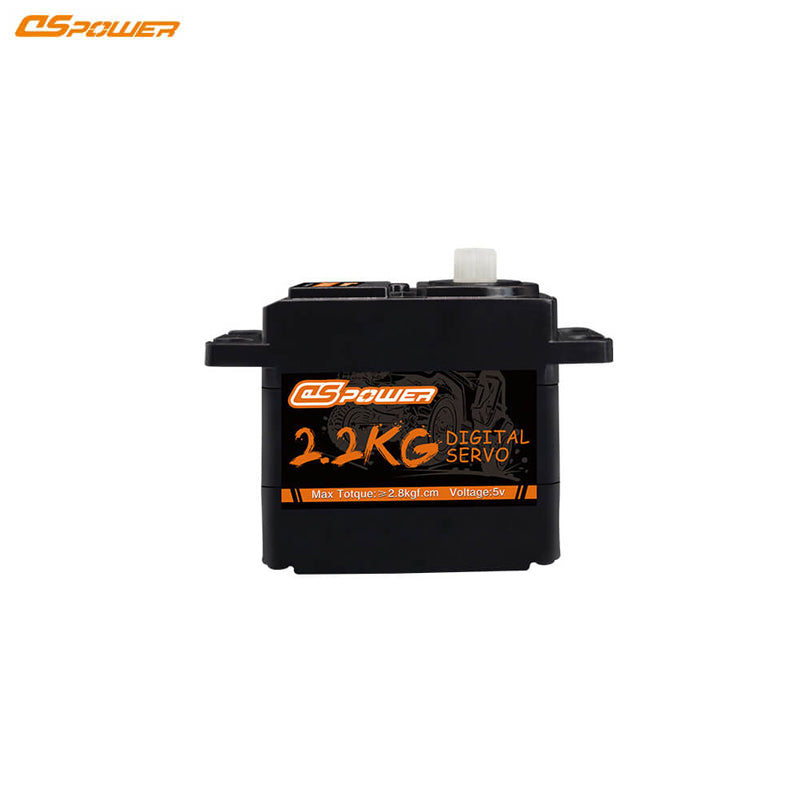

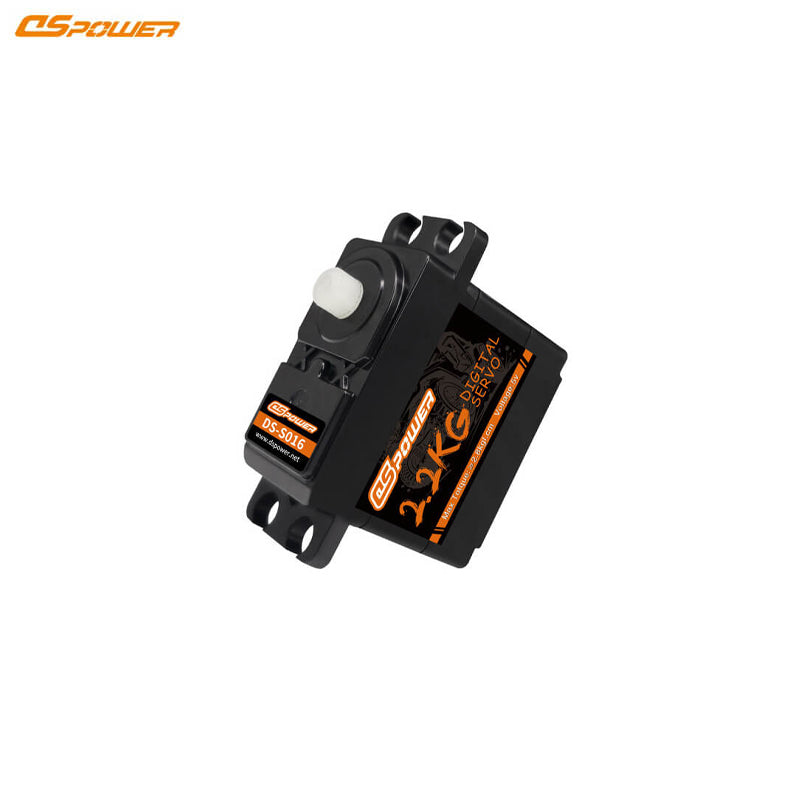

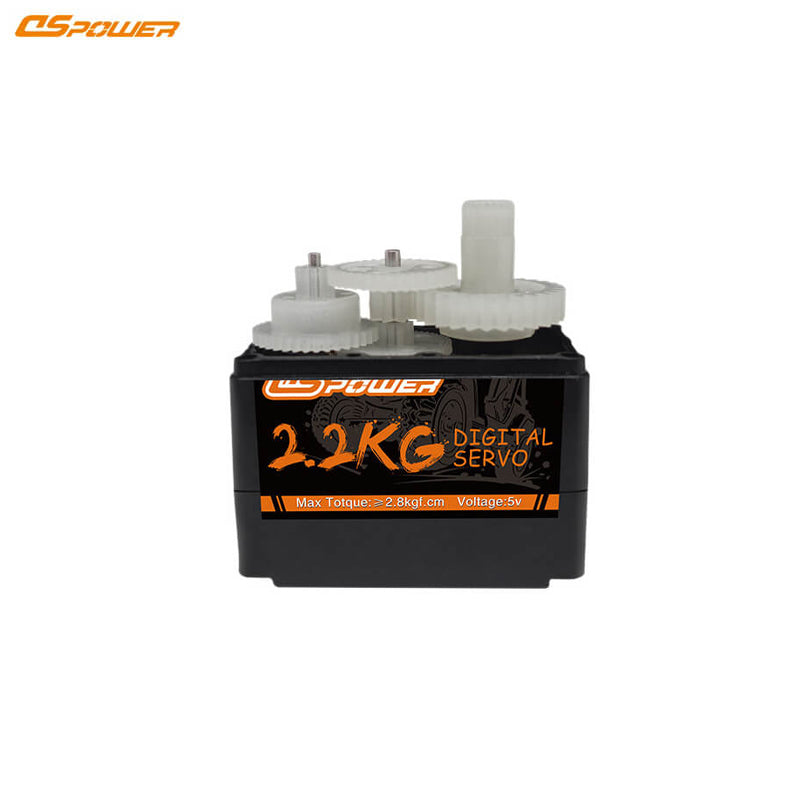

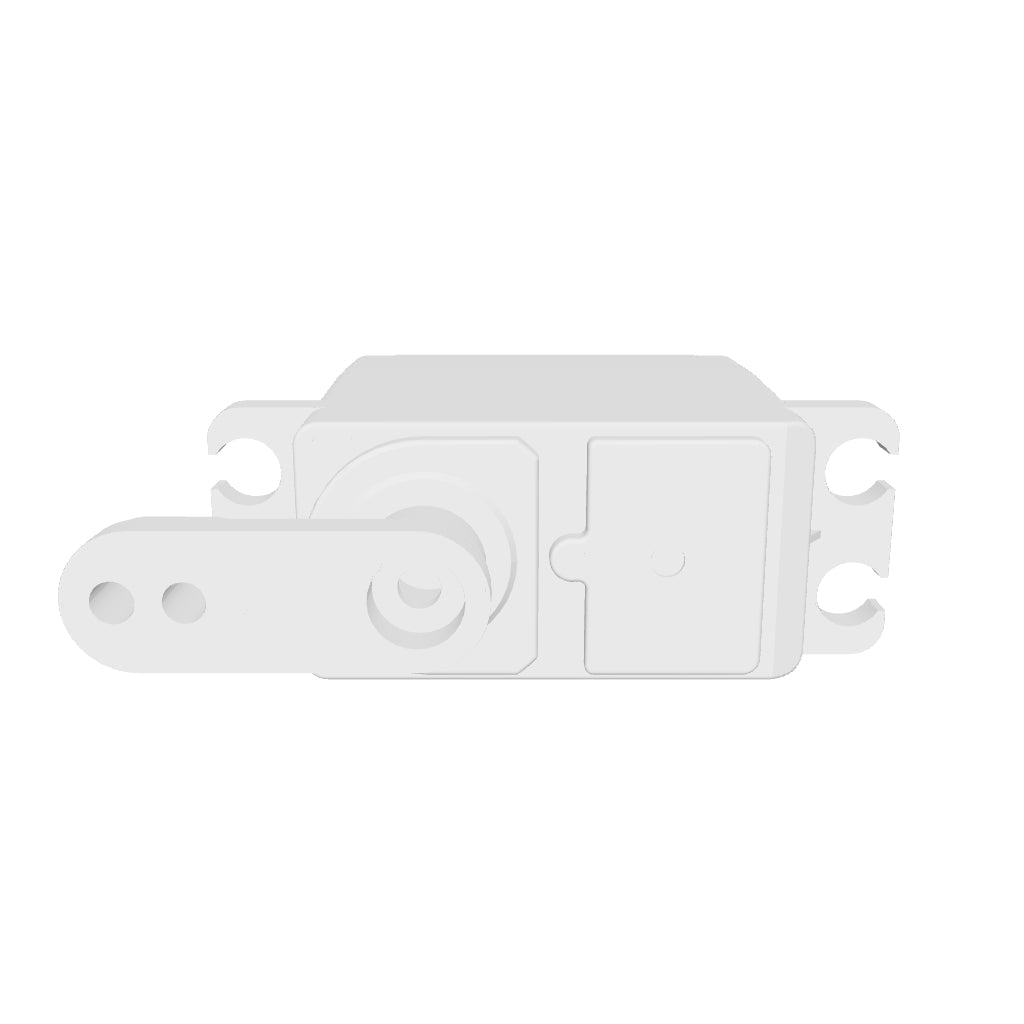

DSpower DS-S016 Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S016 Servo Motor - DS-S016 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 5V DC |
| Static Current | ≤10mA |
| Stall Current | ≤1.8A |
| Max Torque | ≥2.8kgf·cm |
| Rotating Direction | CW (1000→2000us) |
| No-load Speed | ≤0.12 sec/60° |
| Pulse Width Range | 700~2300us |
| Operating Travel Angle | 90°±10° |
| Centering Deviation | ≤1° |
| Weight | 18.5 ± 0.3 g |
| Communication Interface | PWM |
| Dead Band Width | ≤4 us |
| Backlash | ≤1° |
