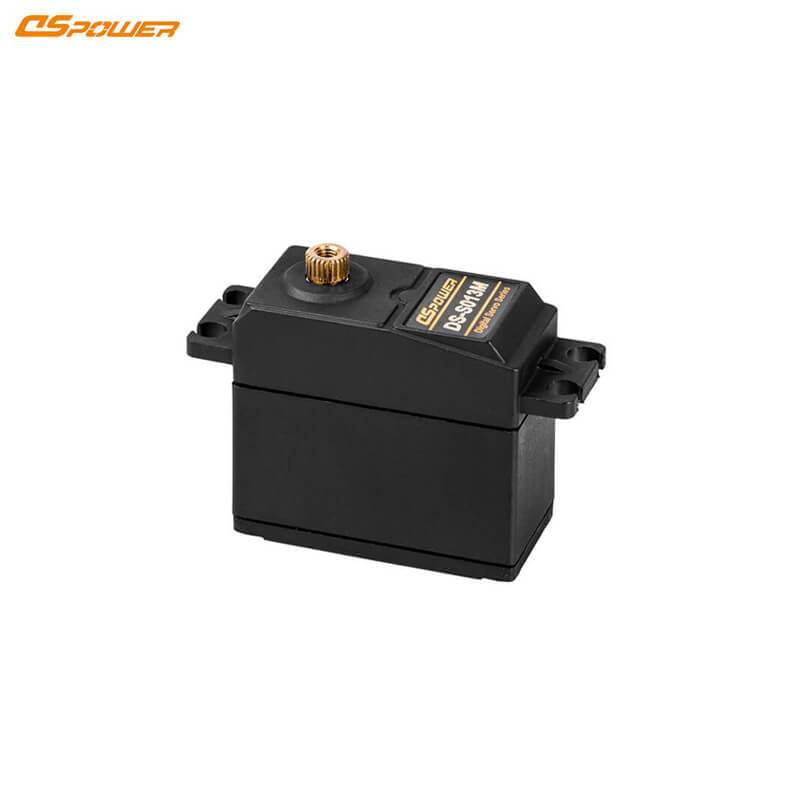

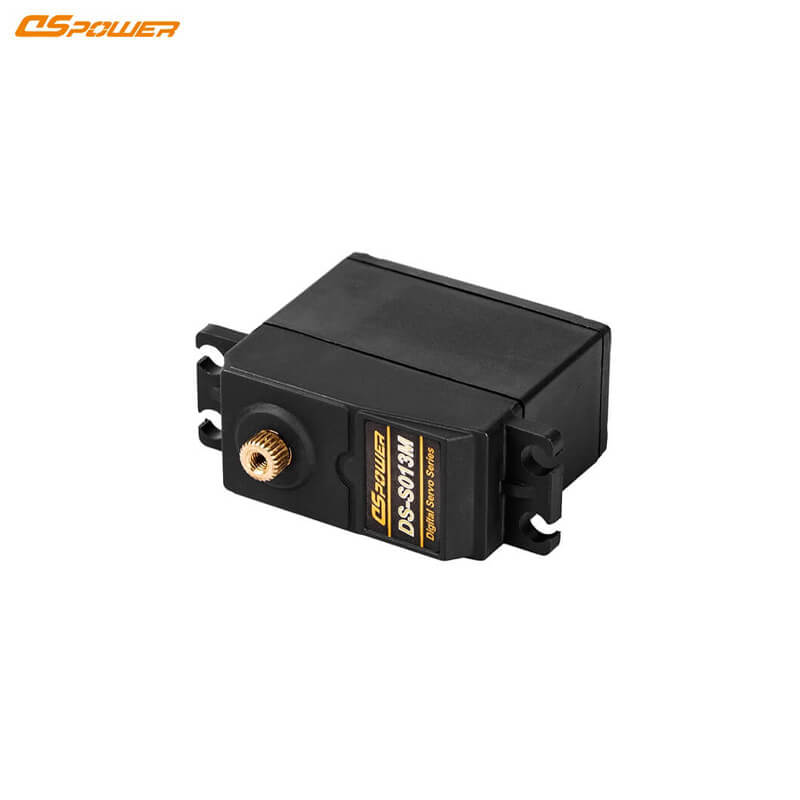

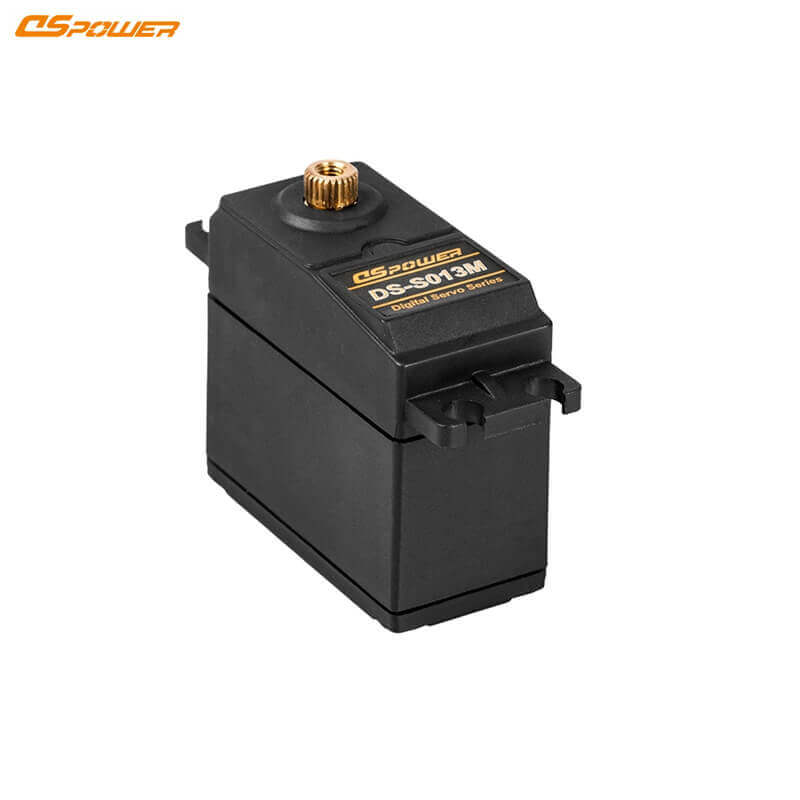

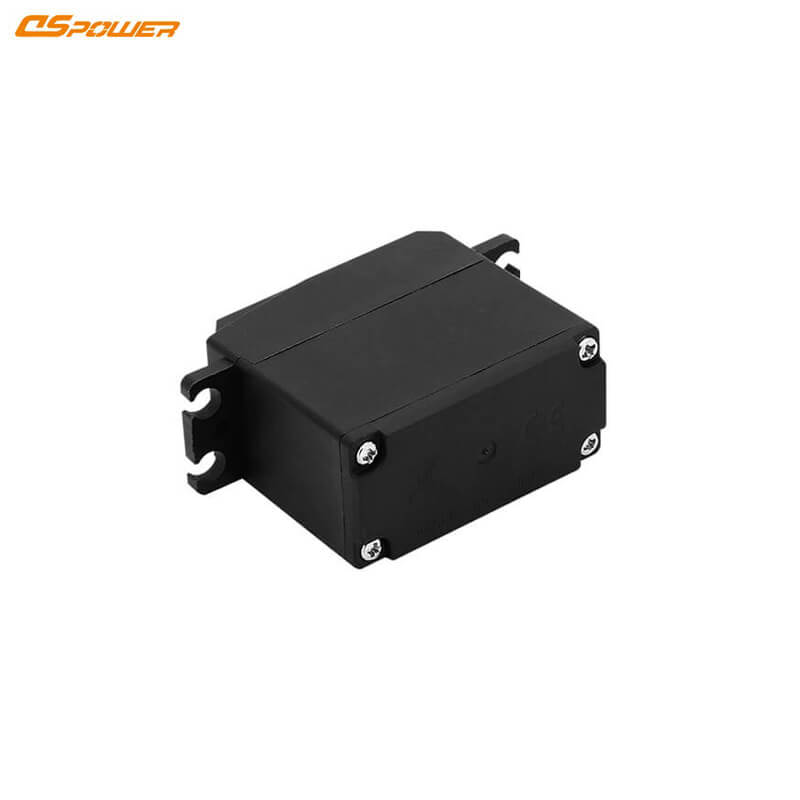

DSpower DS-S013M Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S013M Servo Motor - DS-S013M is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-S013M Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S013M Servo Motor - DS-S013M is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

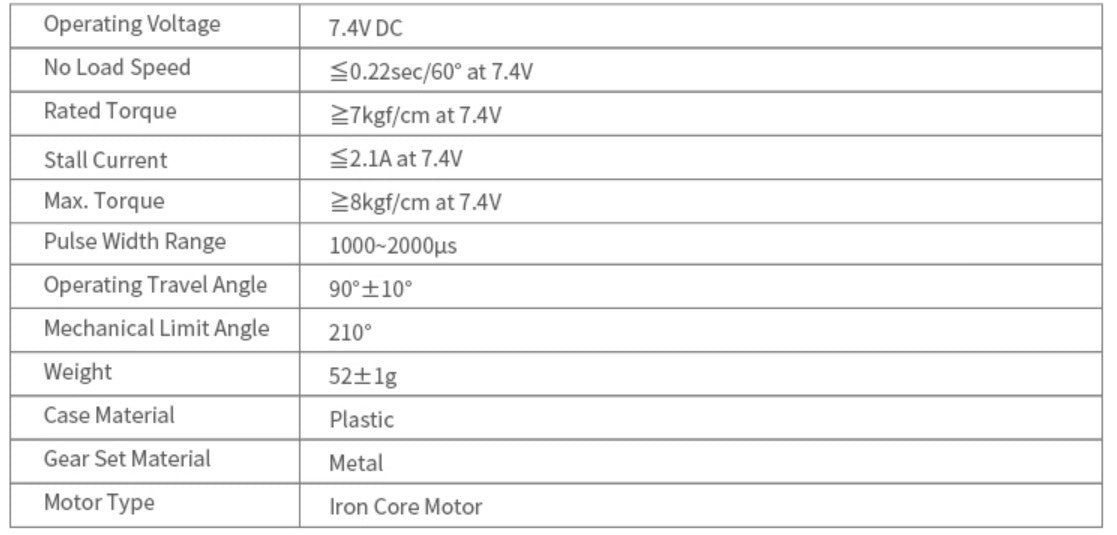

Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | DS-S013M | DS-S013 |
| Operating Voltage | 7.4V DC | 4.8-6V DC |
| No Load Speed | ≤0.22 sec/60° at 7.4V | - |
| No Load Current | - | ≤100mA at 4.8V |
| Rated Torque | ≥7 kgf·cm at 7.4V | - |
| Stall Current | ≤2.1A at 7.4V | ≤1.6A at 4.8V; ≤2.0A at 6.0V |
| Max. Torque | ≥8 kgf·cm at 7.4V | - |
| Stall Torque | - | ≥5.5 kgf·cm at 4.8V; ≥7.5 kgf·cm at 6.0V |
| Rotating Direction | - | CCW (1000→2000μs) |
| Pulse Width Range | 1000~2000μs | 500~2500μs |
| Operating Travel Angle | 90°±10° | 270°±10° |
| Mechanical Limit Angle | 210° | 360° |
| Weight | 52±1g | 52±1g |
| Case Material | Plastic | - |
| Gear Set Material | Metal | - |
| Motor Type | Iron Core Motor | - |
| Communication Interface | - | PWM |
