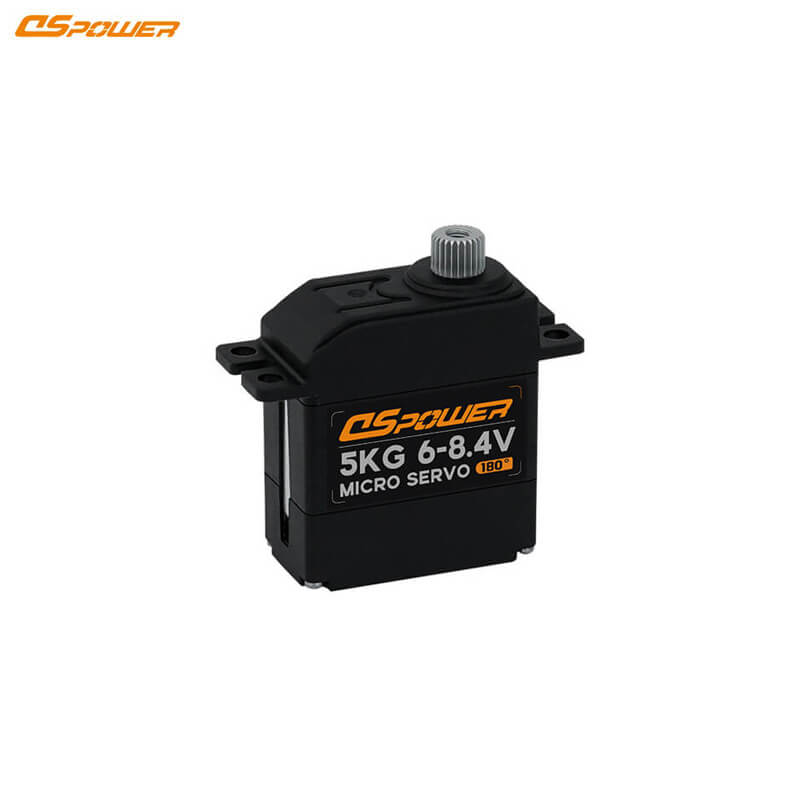

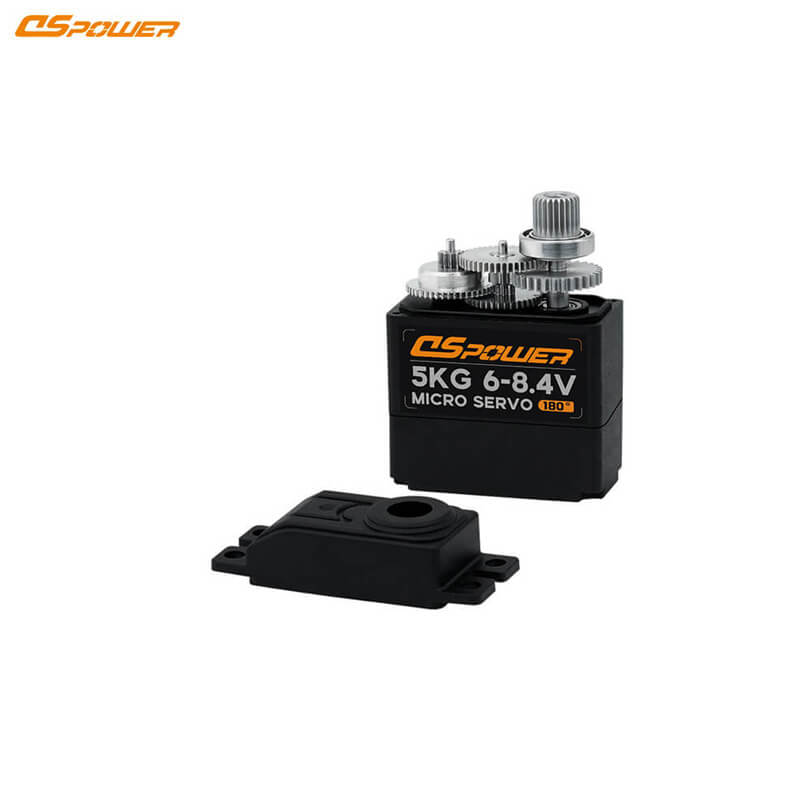

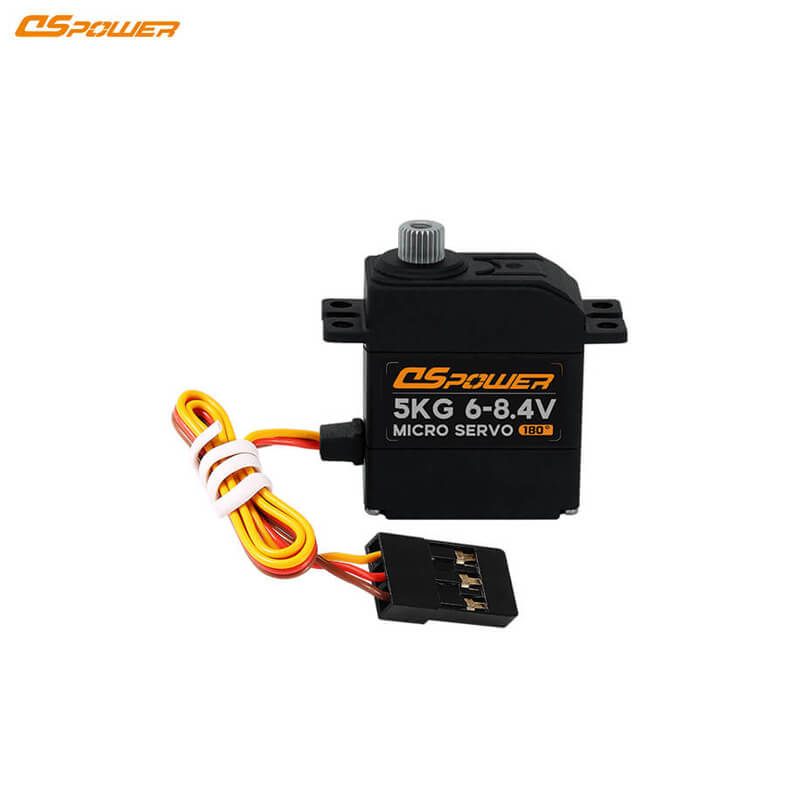

DSpower DS-S009B Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 6~8.4V DC
Static Current ≤30mA
Stall Current ≤1.5A at 7.4V
Stall Torque ≥5.0kgf·cm at 7.4V
Rotating Direction CCW (500~2500us)
No-load Speed ≤0.16 Sec/60° at 7.4V
Pulse Width Range 500us-2500us
Operating Travel Angle 180°±10°
L&R Angle Deviation ≤7°
Weight 15.9±0.5g
Communication Interface PWM
Output Shaft Specification Ø4.85×40T
Backlash ≤1°

DSpower DS-S009B Servo Motor-DRAW.pdf
