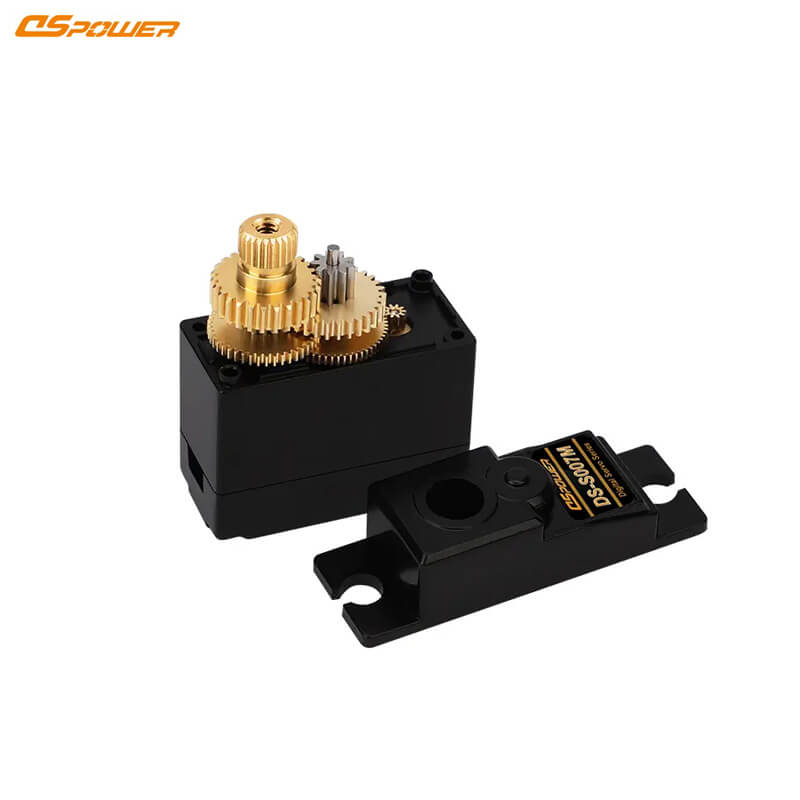

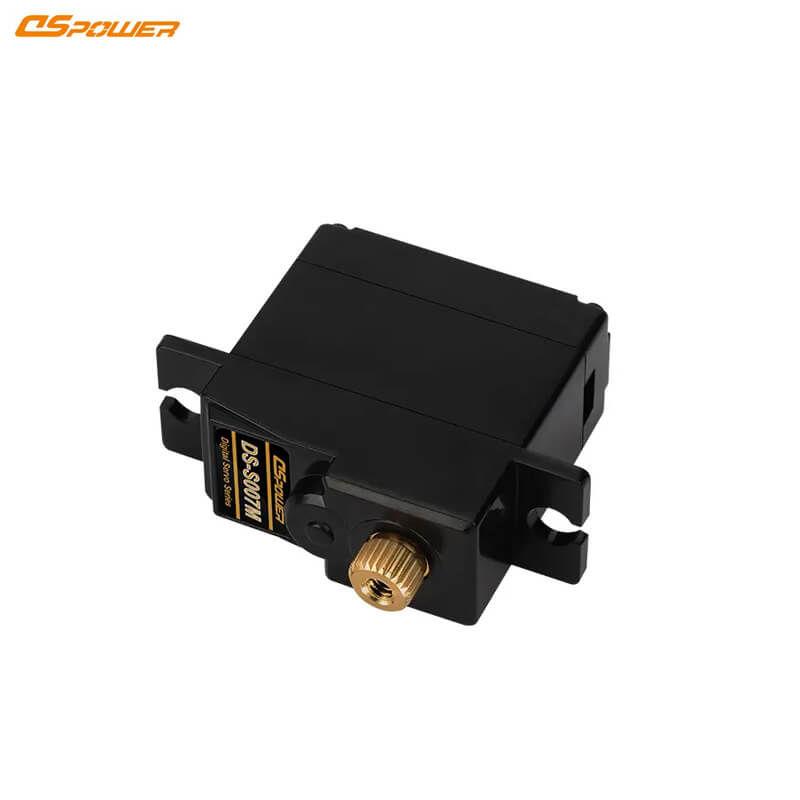

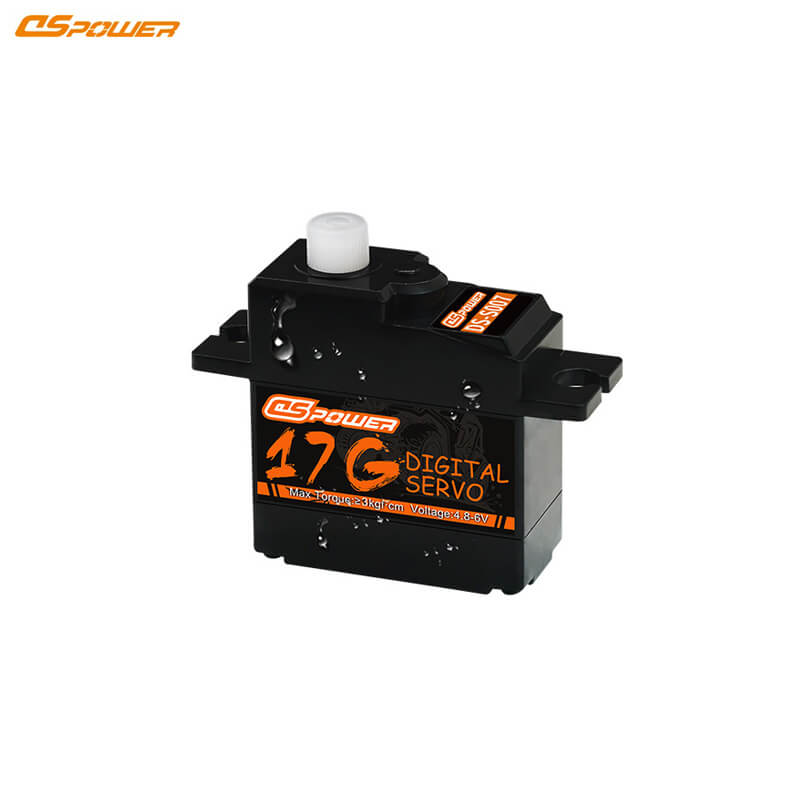

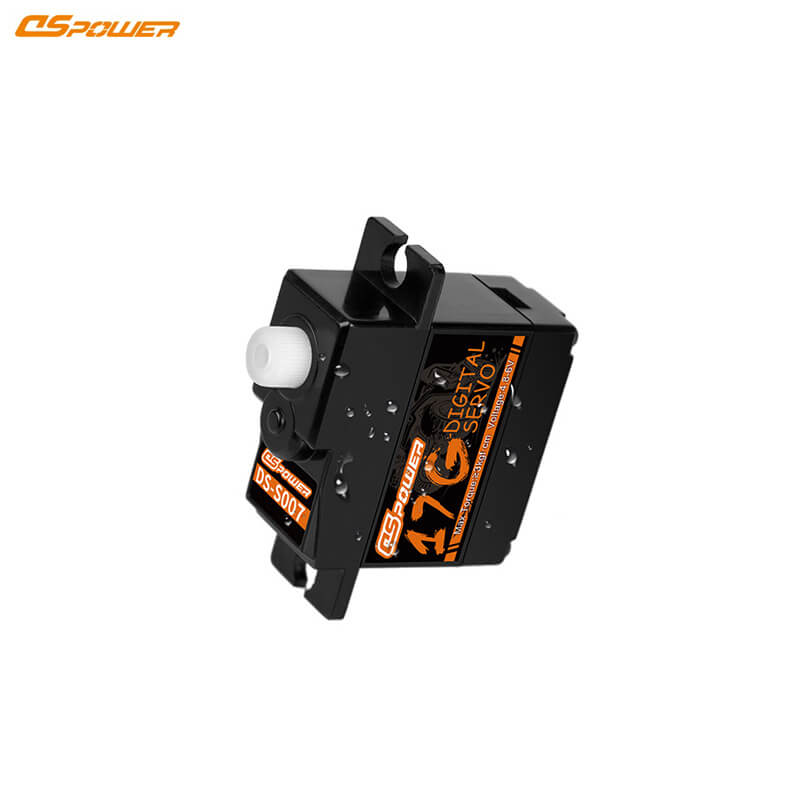

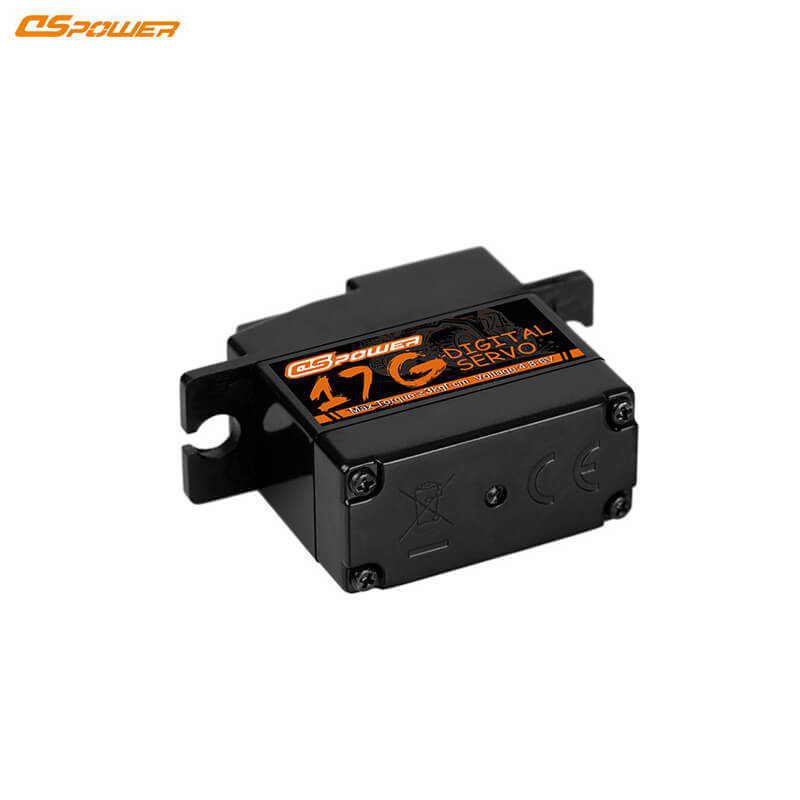

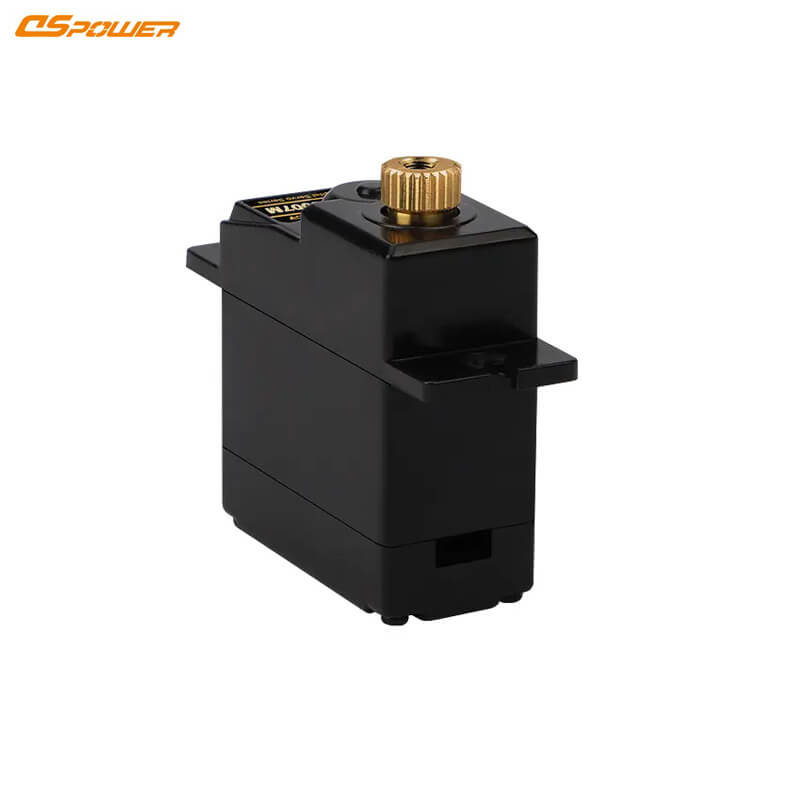

DSpower DS-S007M Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S007M Servo Motor - DS-S007 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-S007M Servo Motor
Regular priceFrom
$25.00
Unit price
DSpower DS-S007M Servo Motor - DS-S007 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value | Value |
|---|---|---|
| Model | DS-S007 | DS-S007M |
| Operating Voltage | 4.8V - 6VDC | 4.8~6.0V DC |
| Static Current | ≤20mA | - |
| Stall Current | ≤950mA at 4.8V, ≤1.2A at 6.0V | ≤1500mA at 4.8V; ≤1800mA at 6.0V |
| Max Torque | ≥3kgf·cm at 4.8V, ≥4kgf·cm at 6.0V | ≥3.80kgf·cm at 4.8V; ≥4.20kgf·cm at 6.0V |
| Rotating Direction | CCW (1000→2000us) | - |
| No-load Speed | ≤0.12 sec/60° at 4.8V, ≤0.1 sec/60° at 6.0V | ≤0.10 sec/60° at 4.8V; ≤0.12 sec/60° at 6.0V |
| Pulse Width Range | 500~2500us | - |
| Operating Travel Angle | 90°±10° (1000~2000us) | 180°±2° (500~2000μs) |
| Return Angle Deviation | ≤1° | - |
| Case Material | ABS | ABS |
| Communication Interface | PWM | PWM |
| Wire Length | 200±10mm | - |
| Motor Type | Core motor | Core motor |
| Gear Set Material | Plastic gear | Metal gear |
| Consumption Current (No-load) | - | ≤200mA at 4.8V; ≤210mA at 6.0V |
| Remote Control Angle | - | 90°±2° |
| Dead Band Width | - | ≤5us |
| Mechanical Limit Angle | - | 360° |
| Horn Type | - | 25T / Φ5.9mm |
| Weight | - | 20.7g |
| Dimensions | - | 29.6×13.2×40mm |
