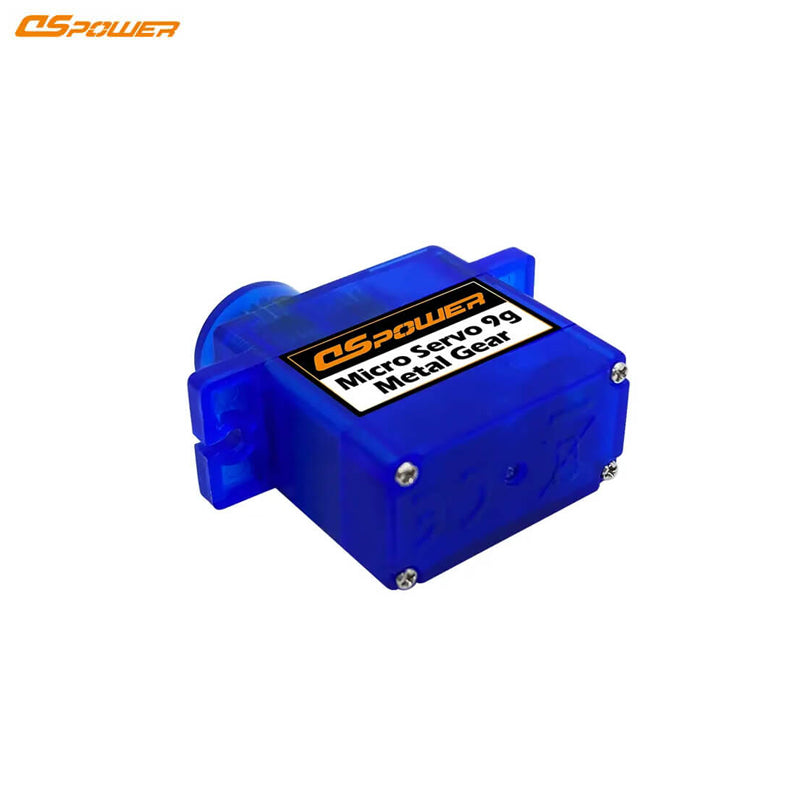

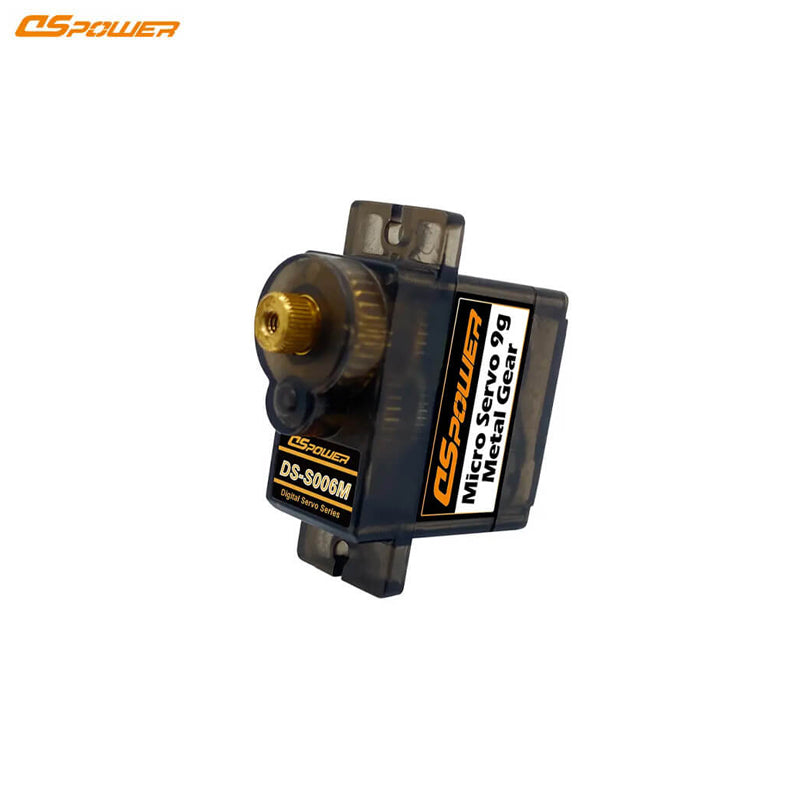

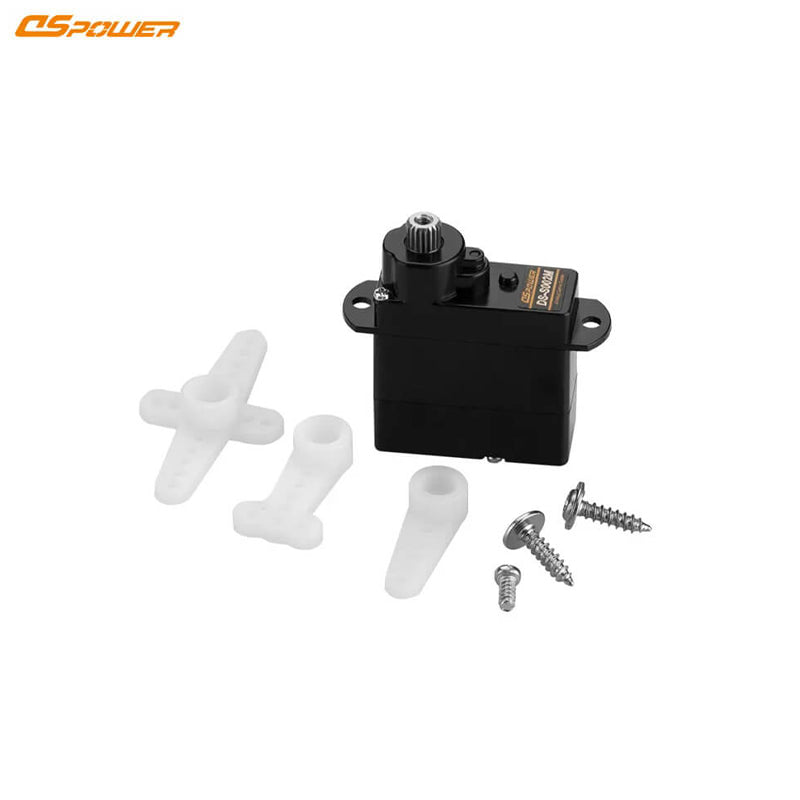

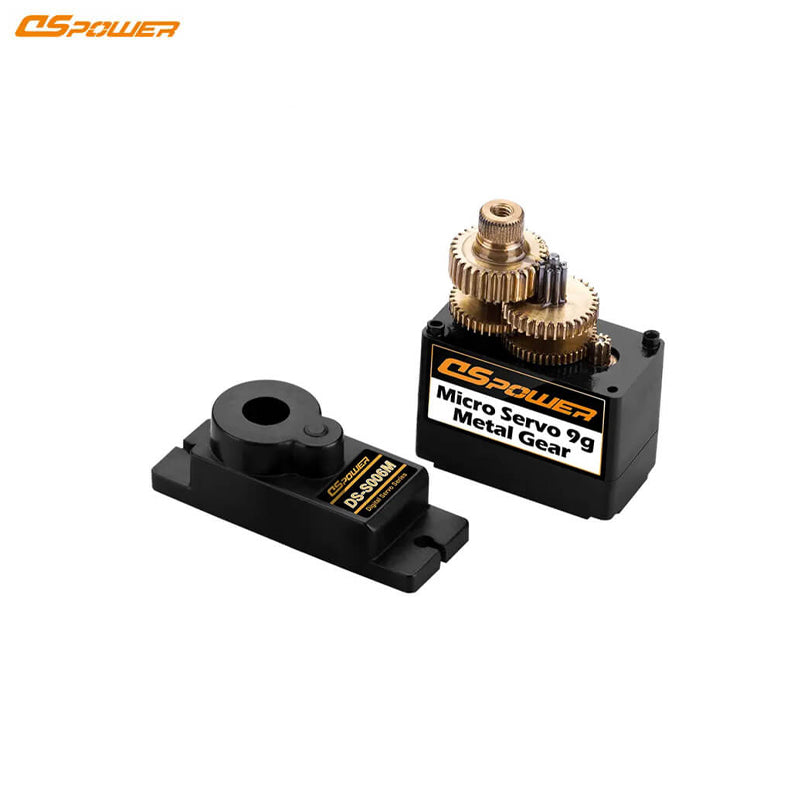

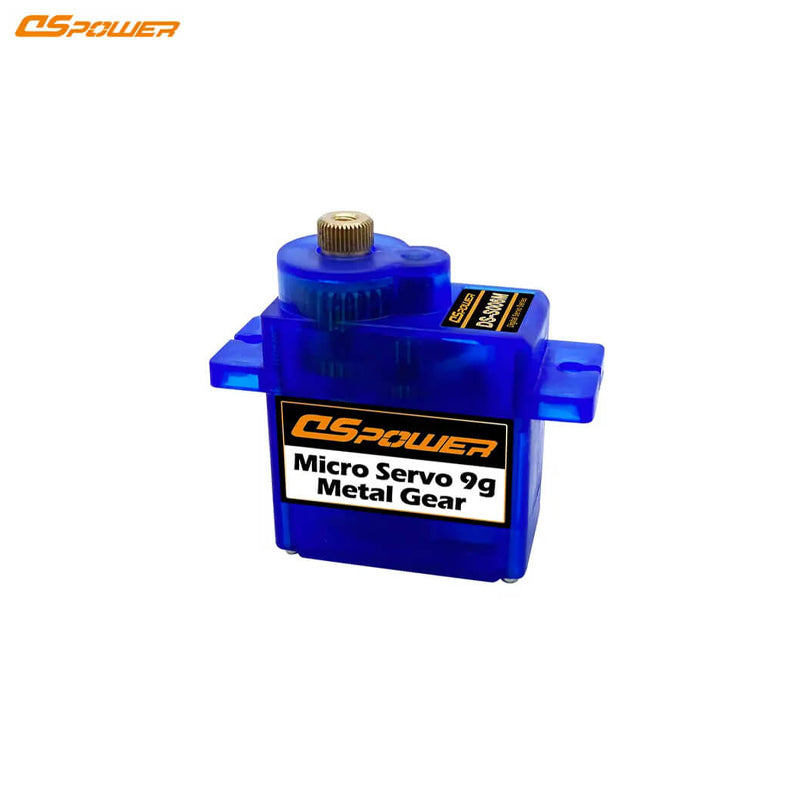

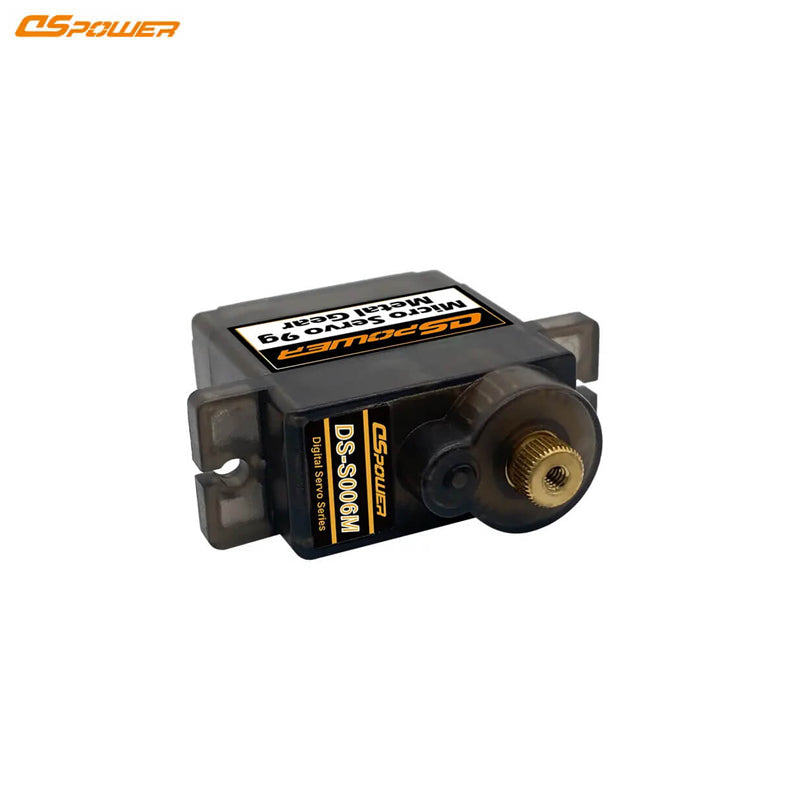

DSpower DS-S006M Servo Motor

$40.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 4.8 ~ 6 V DC
No Load Speed ≤0.13 sec/60° at 4.8V (REF.)
≤0.11 sec/60° at 6.0V (STD.)
Stall Current ≤700 mA at 4.8V (REF.)
≤800 mA at 6.0V (STD.)
Stall Torque ≥1.3 kgf·cm at 4.8V (REF.)
≥1.5 kgf·cm at 6.0V (STD.)
Pulse Width Range 500 ~ 2500 μs
Operating Travel Angle 90° ± 10°
Mechanical Limit Angle 210°
Weight 13.5 ± 0.5 g
Case Material ABS
Gear Set Material Metal gear
Motor Type Coreless motor
