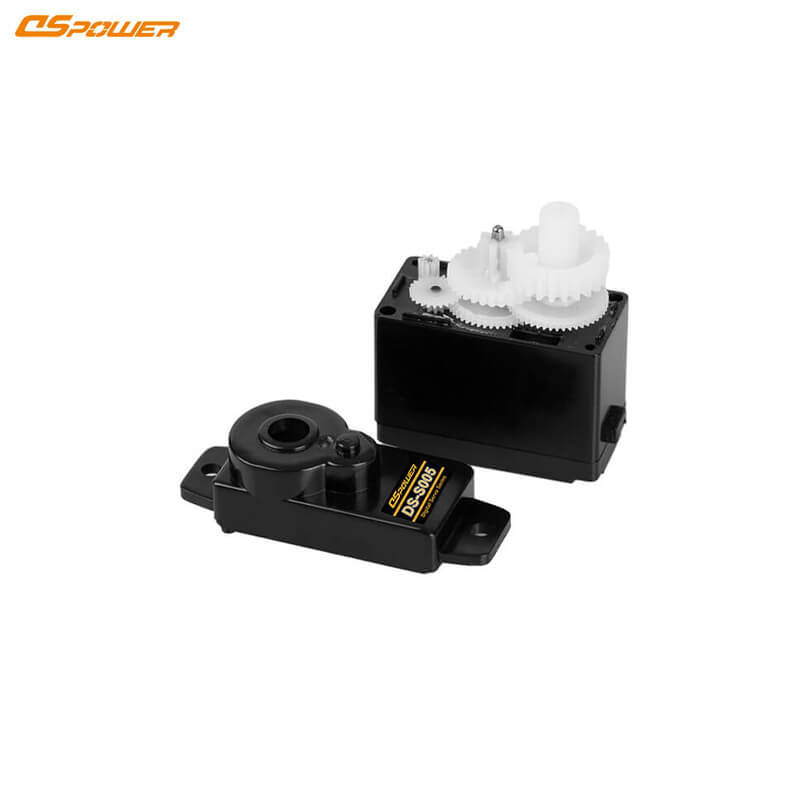

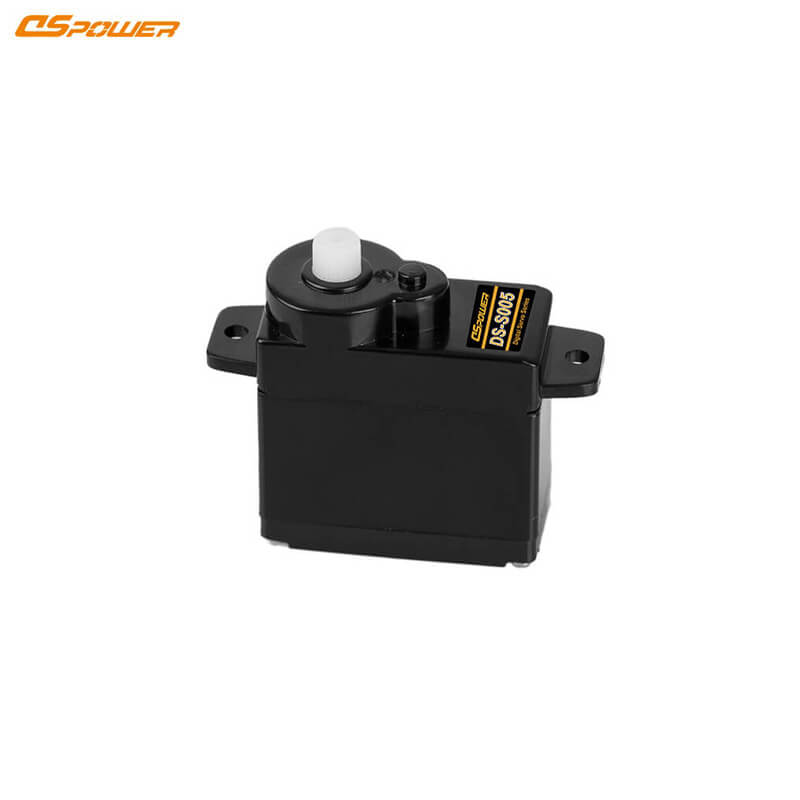

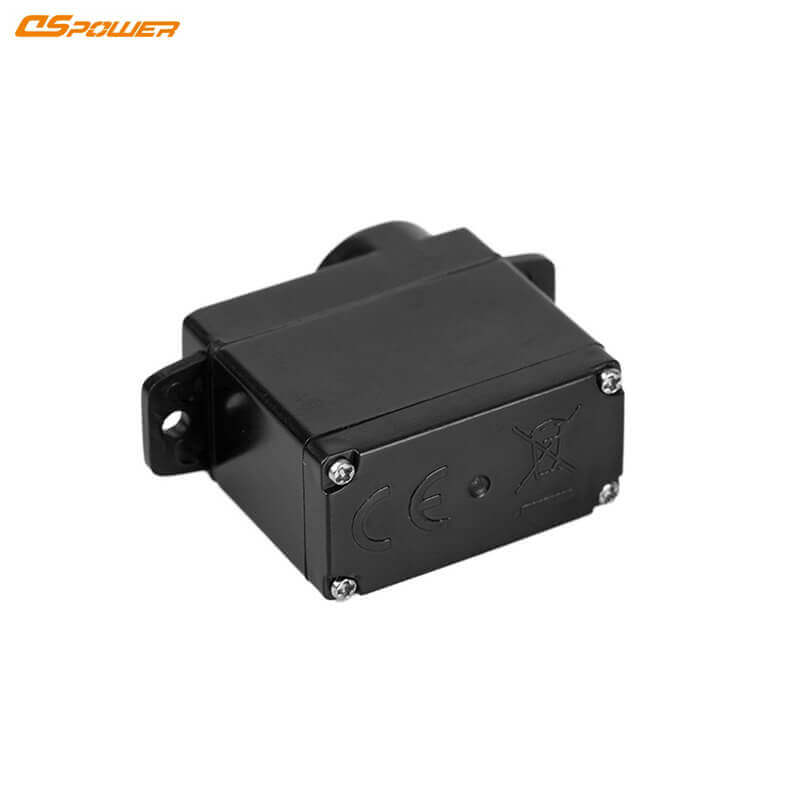

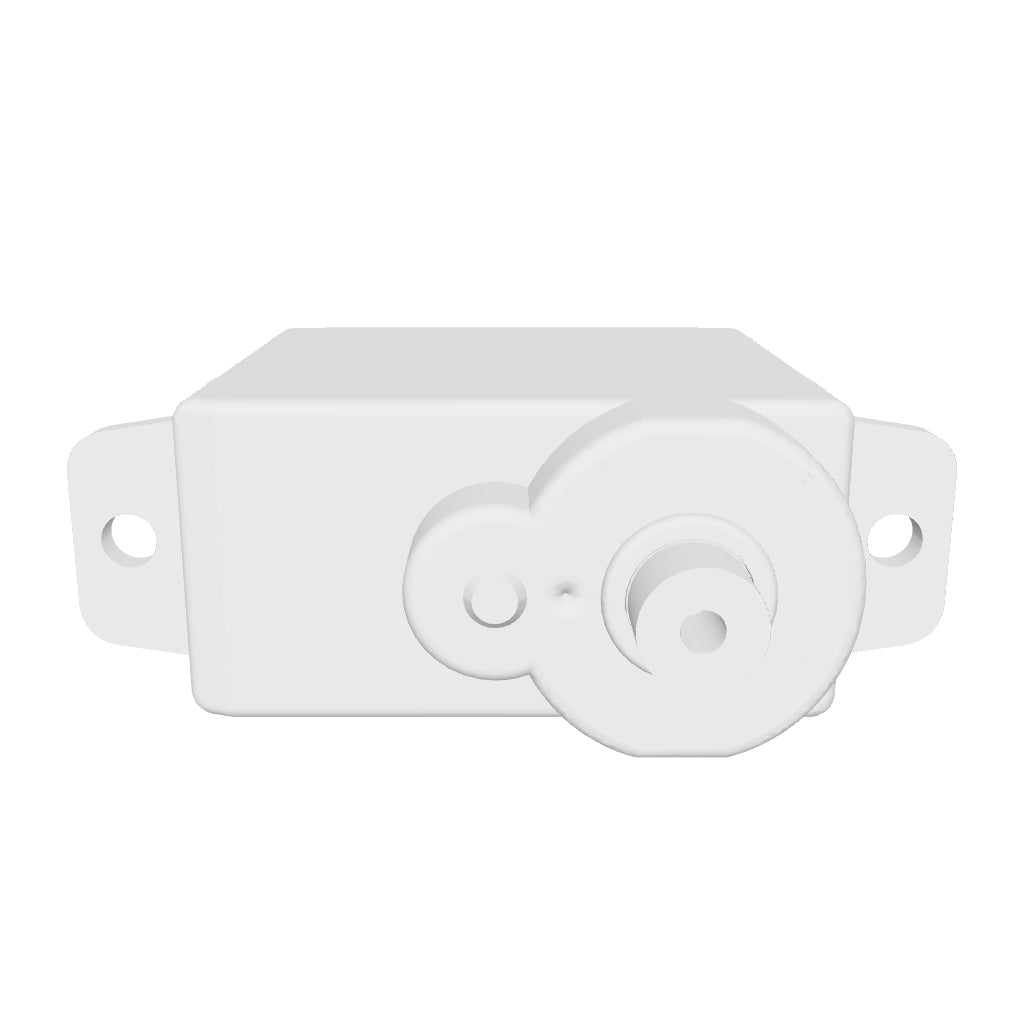

DSpower DS-S005 Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage Range 4.8-6V
No Load Current ≤150mA at 6.0V
Stall Current ≤780mA at 6.0V
Stall Torque* ≥1.4kgf·cm at 6.0V
Rotating Direction* CCW (1000→2000μs)
Pulse Width Range 500-2500μs
Operating Travel Angle 90°±10° (1000~2000μs)
Backlash —
Weight 7.5±0.5g
Output Shaft Specification 28T / Φ3.90mm
Wire Length JR 2.54mm connector, L=245±5mm

DSpower DS-S005 Servo Motor.pdf
