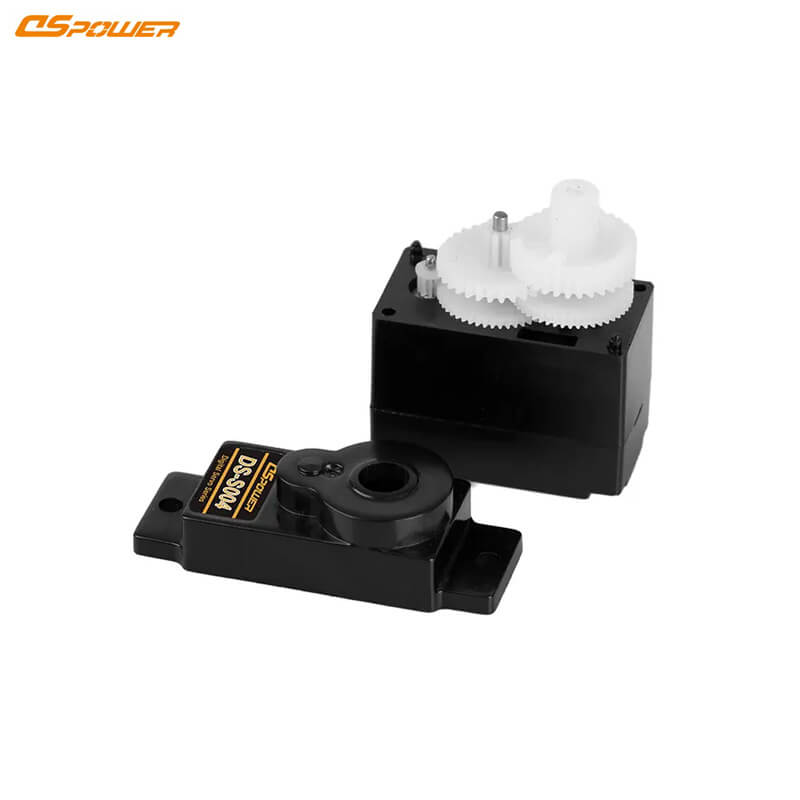

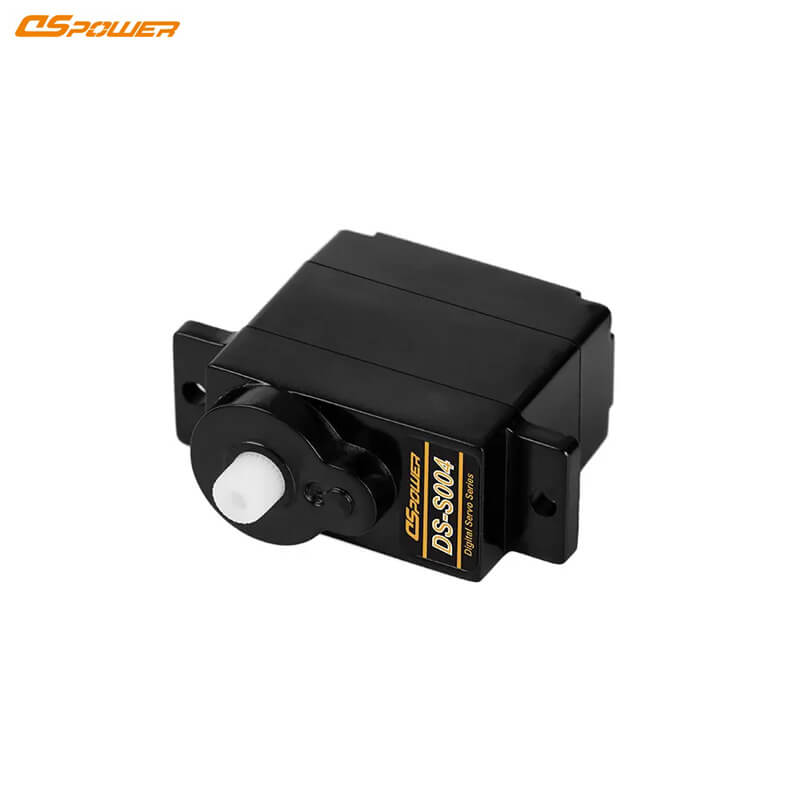

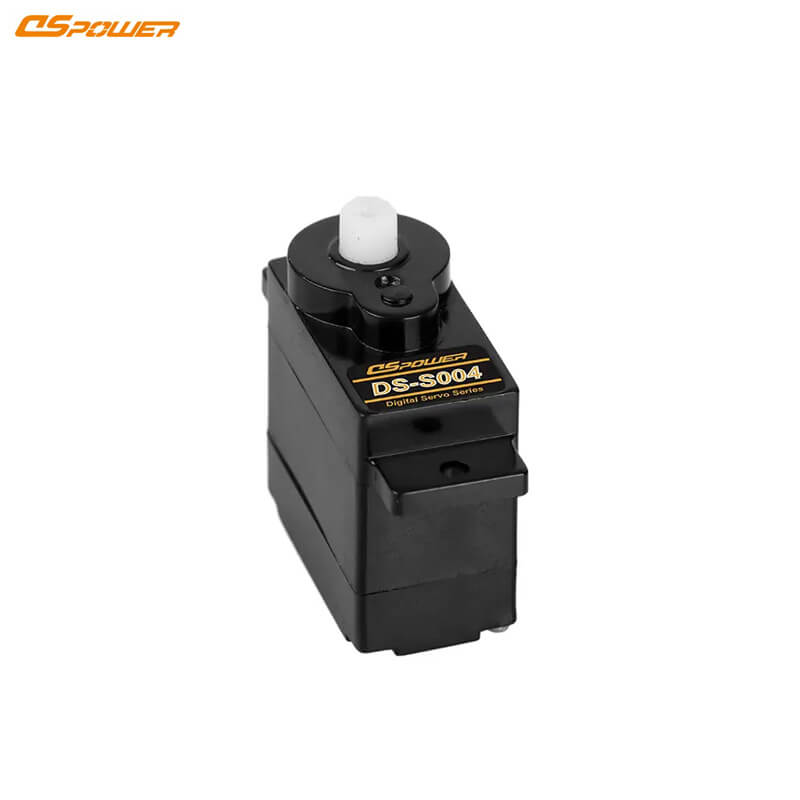

DSpower DS-S004 Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S004 Servo Motor - DS-S004 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-S004 Servo Motor
Regular price
$25.00
Unit price
DSpower DS-S004 Servo Motor - DS-S004 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 4.8 – 6 V |
| No Load Current | ≤90 mA |
| Stall Current | ≤700 mA |
| Stall Torque | ≥0.9 kgf·cm |
| Rotating Direction | CCW (1000 → 2000 μs) |
| Pulse Width Range | 500 – 2500 μs |
| Operating Travel Angle | 90° ± 10° (1000 ~ 2000 μs) |
| Return Angle Deviation | ≤1° |
| Weight | 6 ± 0.5 g |
| Output Shaft Specification | 28T / Φ3.90 mm |
| Wire Length | 245 ± 5 mm |
