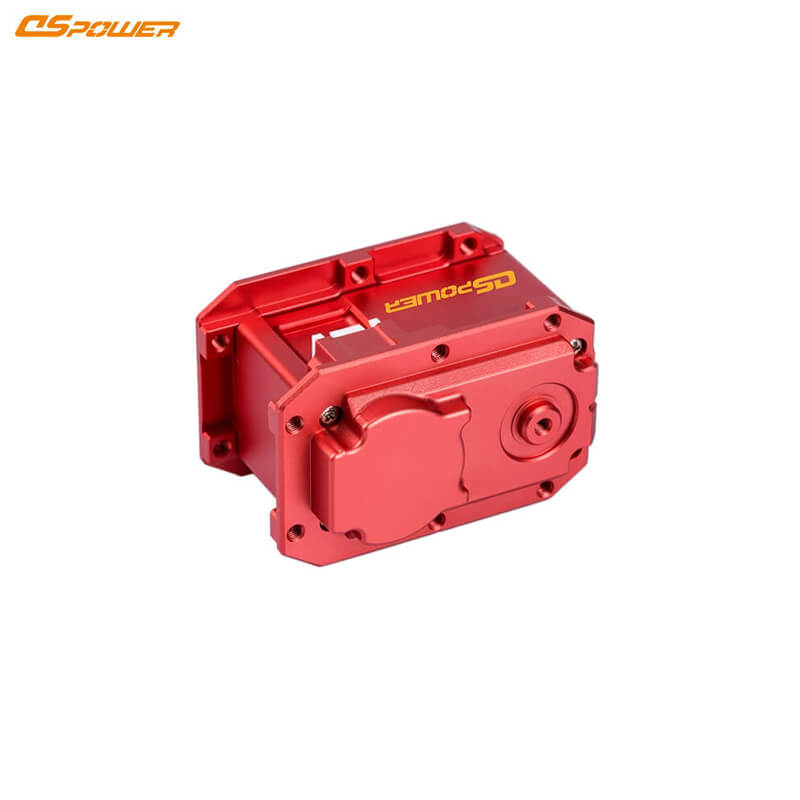

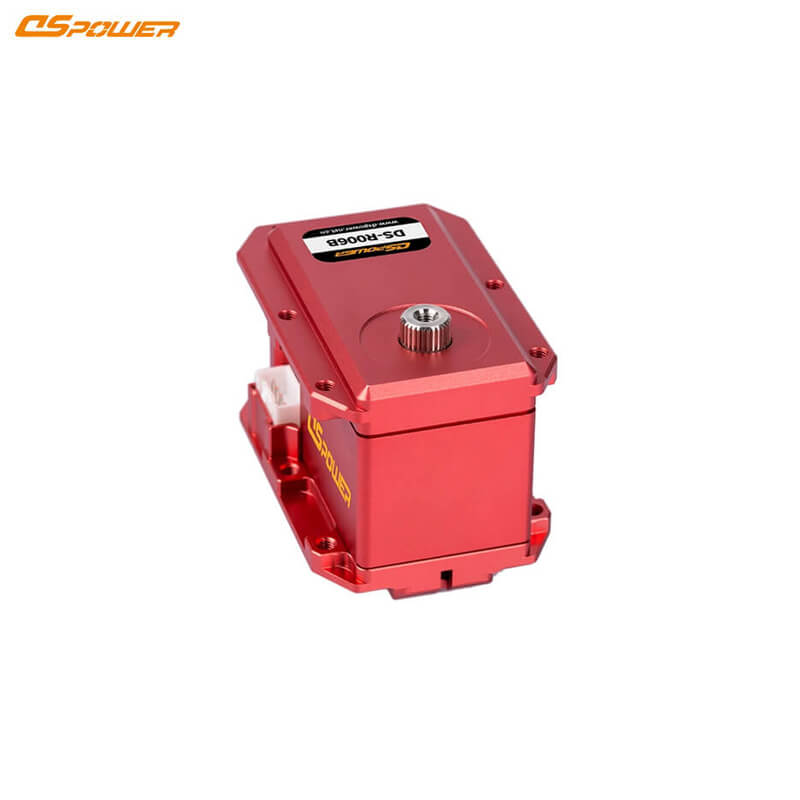

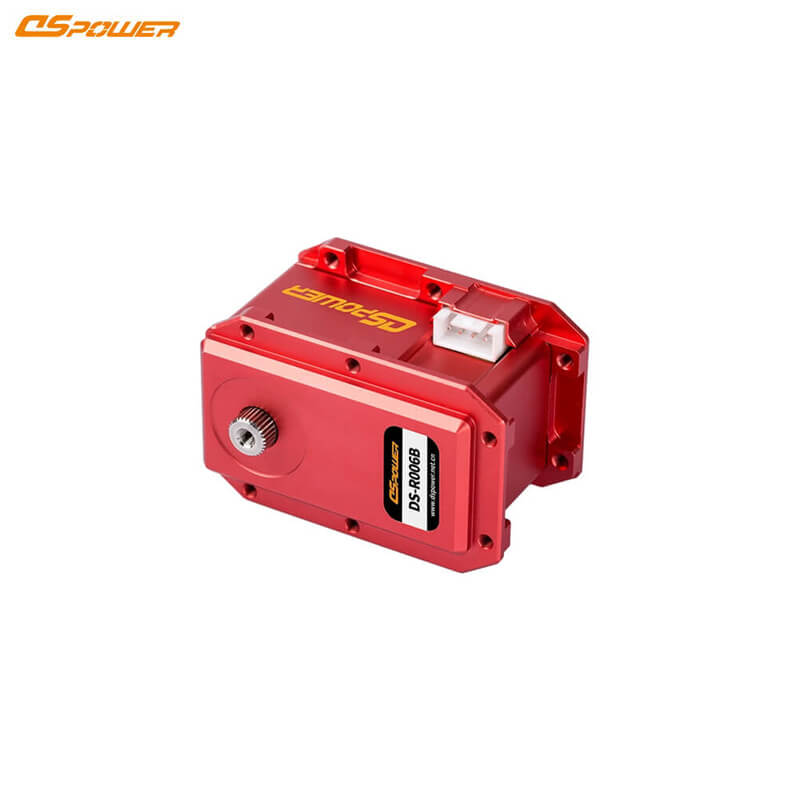

DSpower DS-R006B Servo Motor
Regular price
$310.00
Unit price
DSpower DS-R006B Servo Motor - DS-R006B is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 10.0~14.8V DC |
| No Load Speed | ≤0.29 Sec./60° at 12.0V |
| Rated Torque | 20 kgf·cm at 12.0V |
| Stall Current | ≤7.5A at 12.0V |
| Stall Torque | ≥80 kgf·cm at 12.0V |
| Pulse Width Range | 96~4000μs |
| Operating Travel Angle | 310°±10° |
| Mechanical Limit Angle | 360° |
| Weight | 162±2g |
| Case Material | Metal |
| Gear Set Material | Metal Gears |
| Motor Type | Coreless Motor |
