DSpower

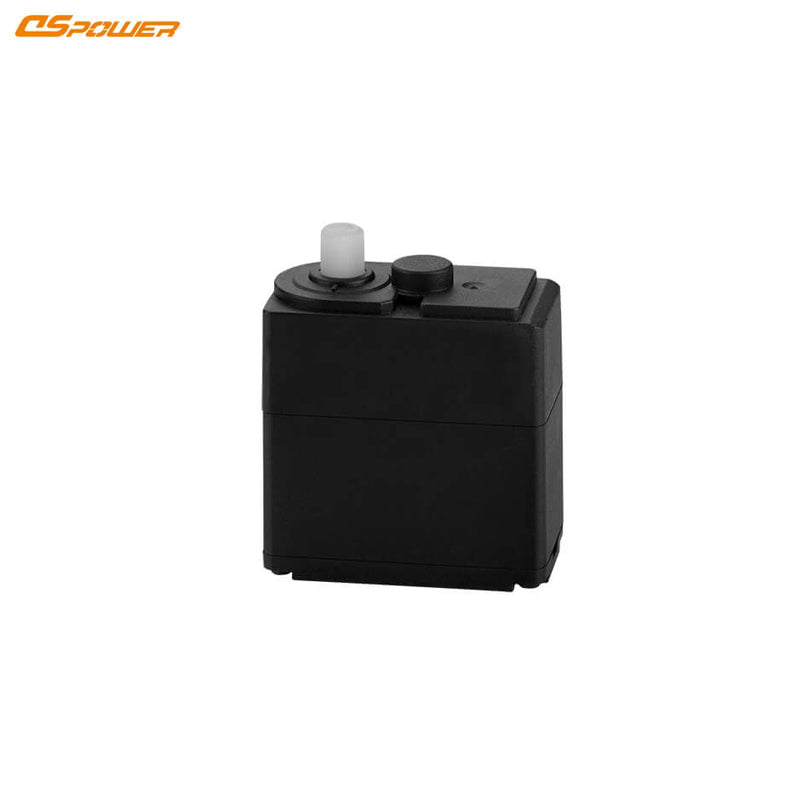

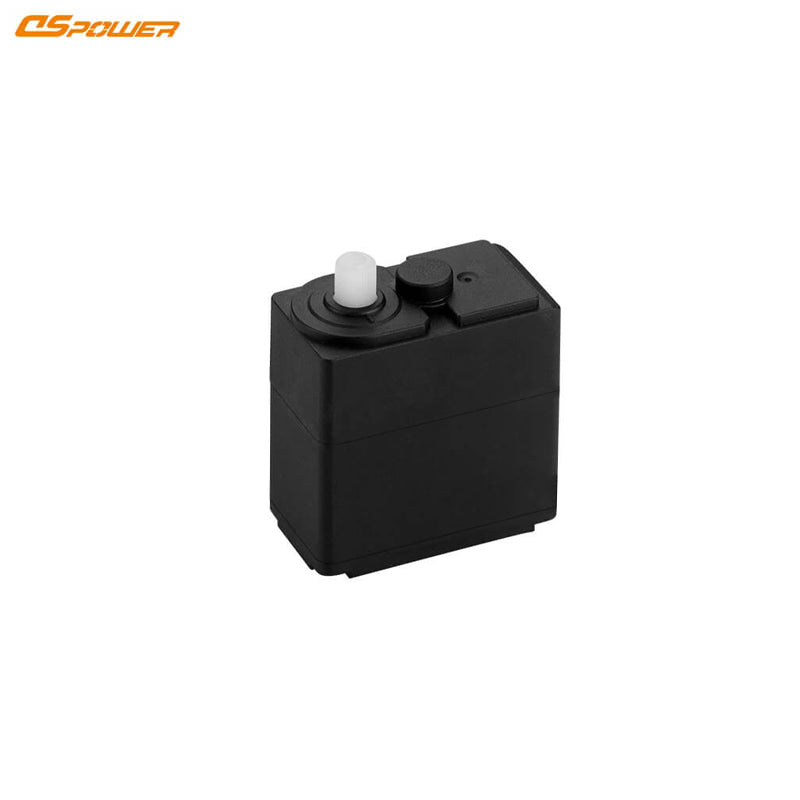

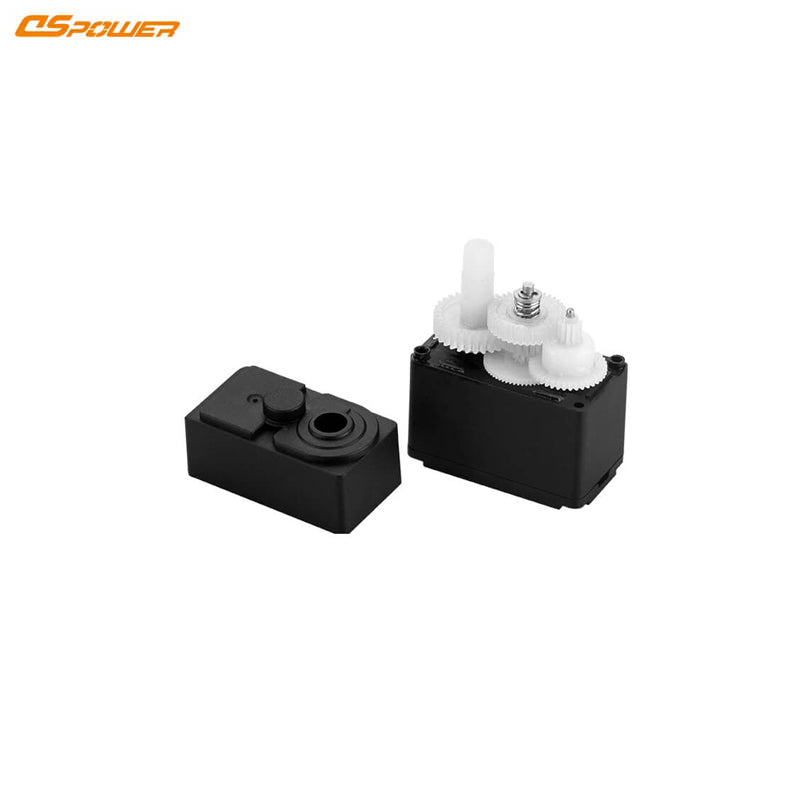

DSpower DS-R005 Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information




Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 4.8-6V DC
No Load Speed ≤0.15 sec./60° at 4.8 V
≤0.13 sec./60° at 6.0 V
No Load Current ≤110 mA at 4.8 V
≤120 mA at 6.0 V
Stall Current ≤700 mA at 4.8 V
≤800 mA at 6.0 V
Stall Torque ≥1.6 kgf·cm at 4.8 V
≥2.0 kgf·cm at 6.0 V
Pulse Width Range 500~2500 μs
Operating Travel Angle 180° ± 10°
Mechanical Limit Angle 360°
Weight 20 ± 0.5 g
Case Material ABS
Gear Set Material Plastic gear
Motor Type Iron Core

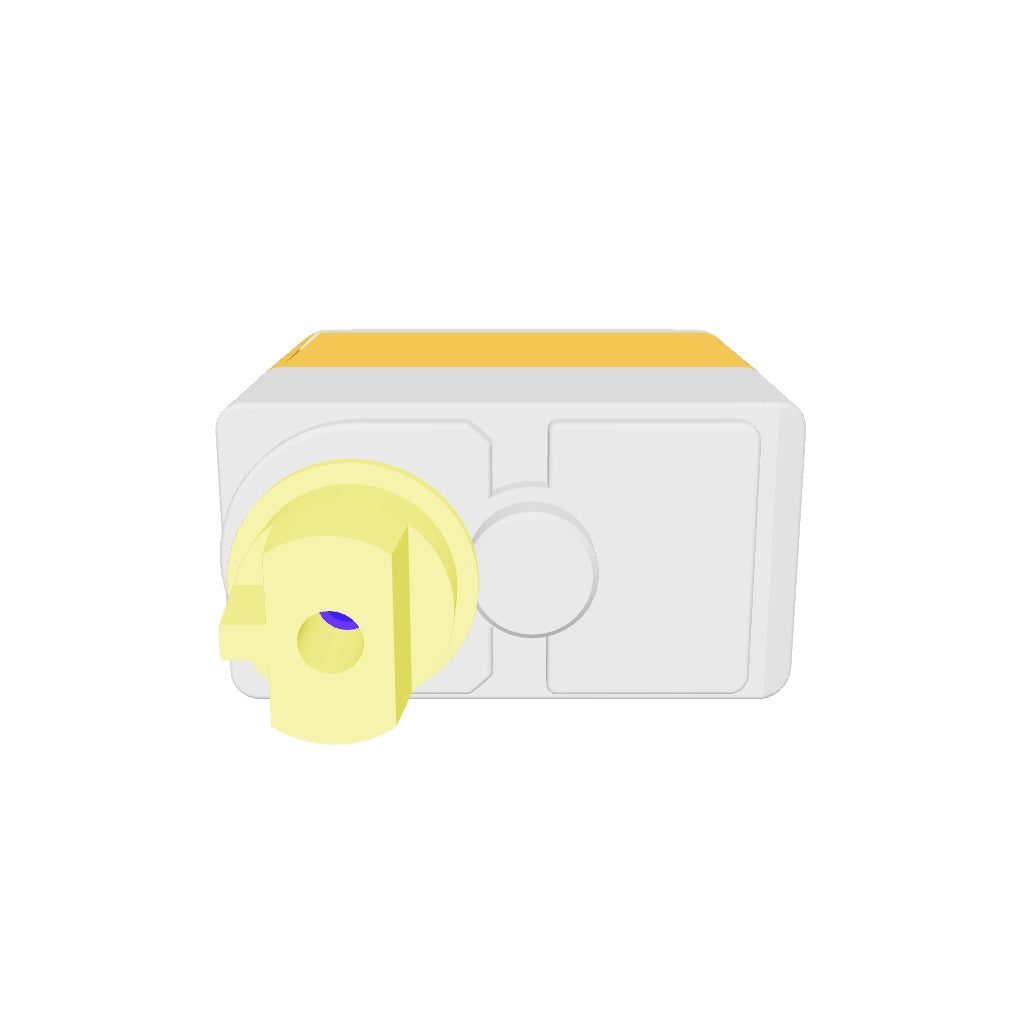

DSpower DS-R005 Servo Motor-DRAW.pdf
