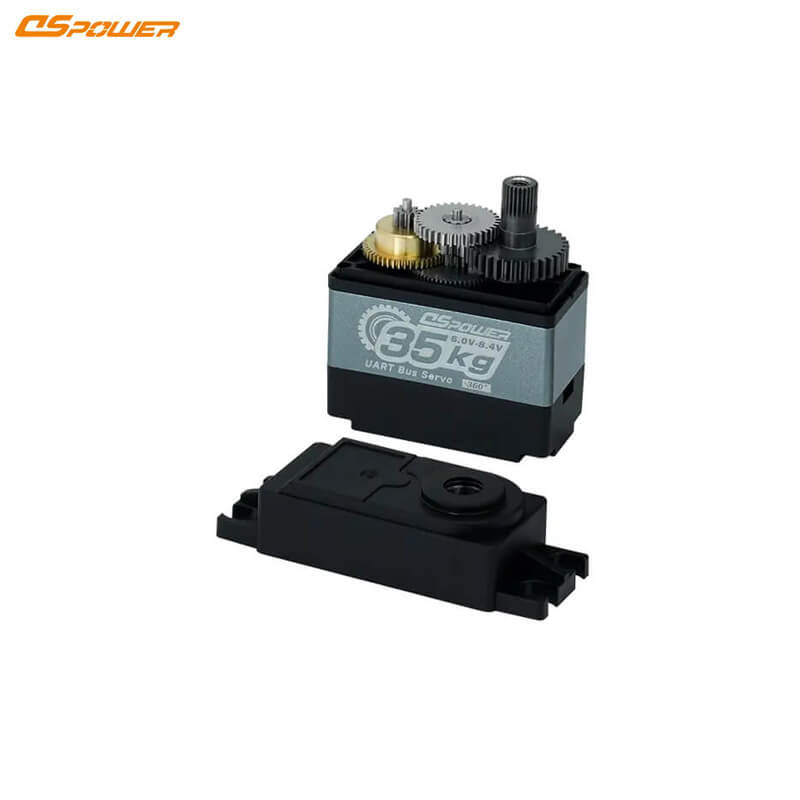

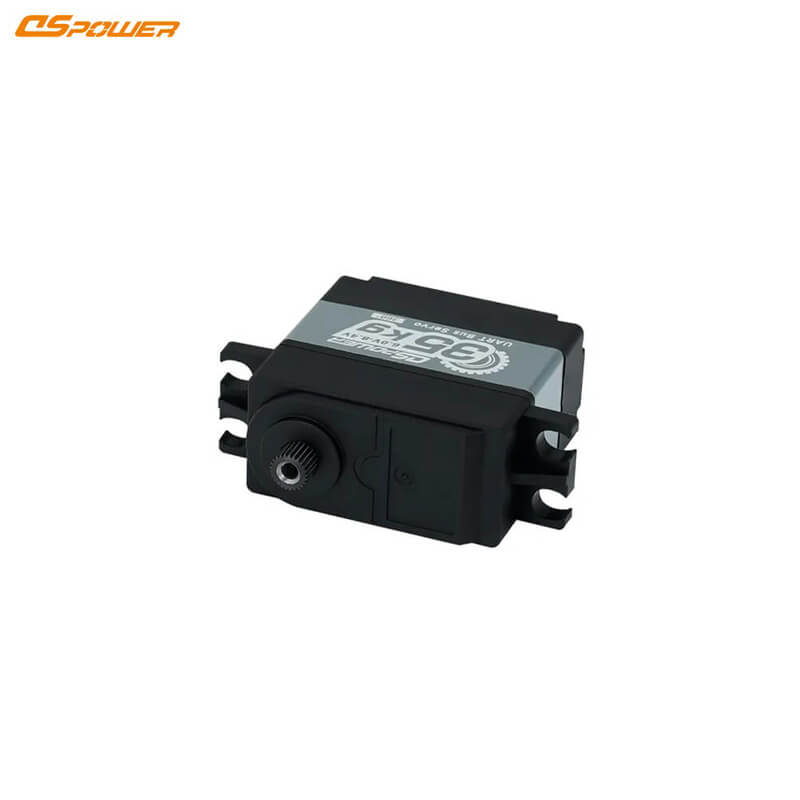

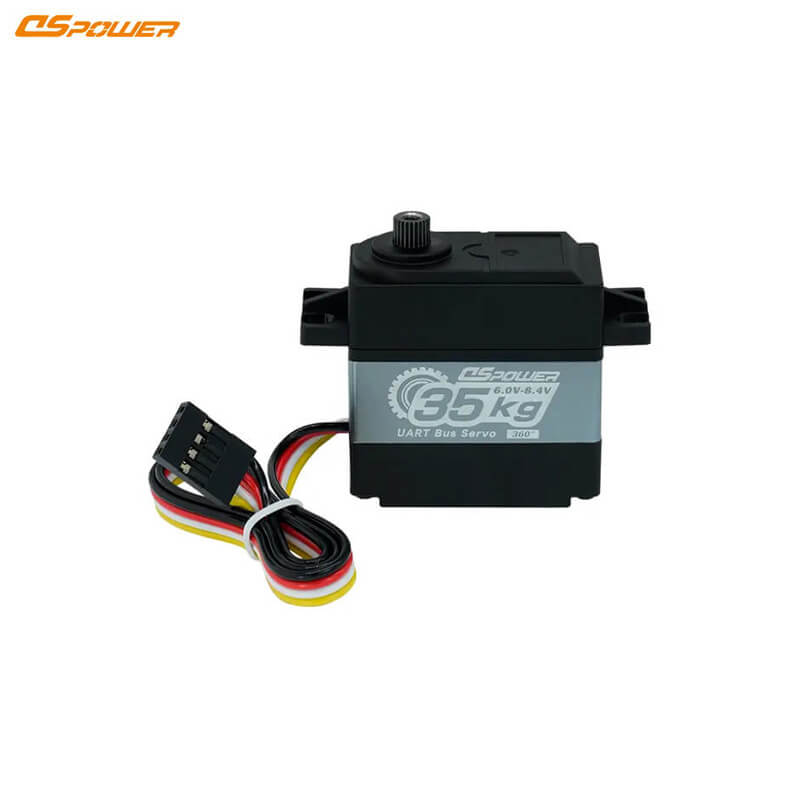

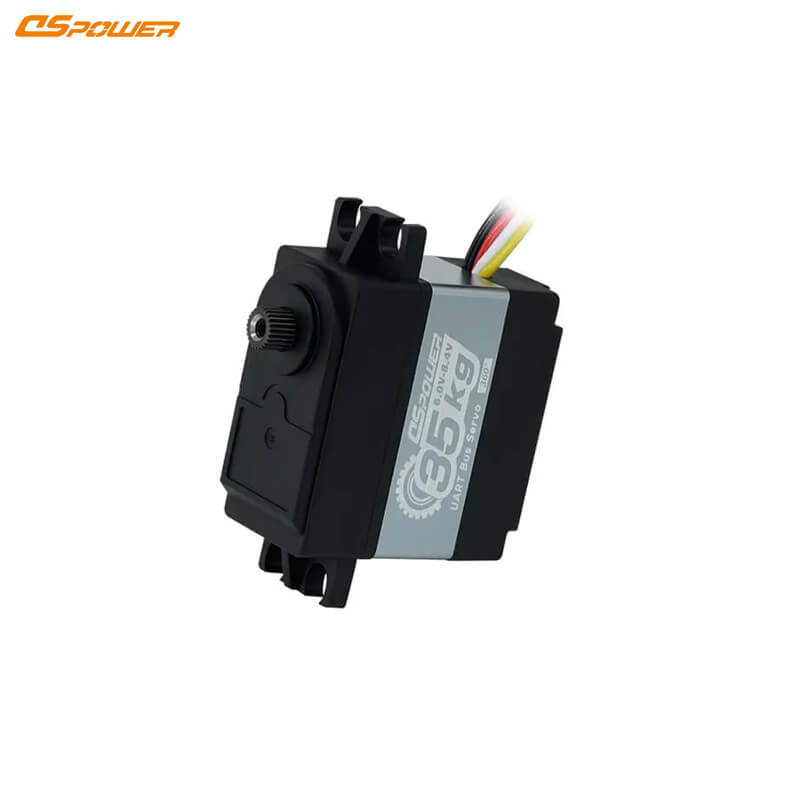

DSpower DS-R003D Servo Motor

$45.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 6~8.4V DC
Static Current ≤30mA
Stall Current ≤5A
Stall Torque ≥35kgf·cm
Rotating Direction CCW (0~4095)
No-load Speed ≤0.23 Sec/60°
Pulse Width Range 0-4095
Operating Travel Angle 360°
L&R Angle Deviation ±5°
Weight 67.5±0.8g
Communication Interface RS485 Serial Port
Output Shaft 25T/D6
Backlash ≤1°

DSpower DS-R003D Servo Motor.pdf
