DSpower | SKU:

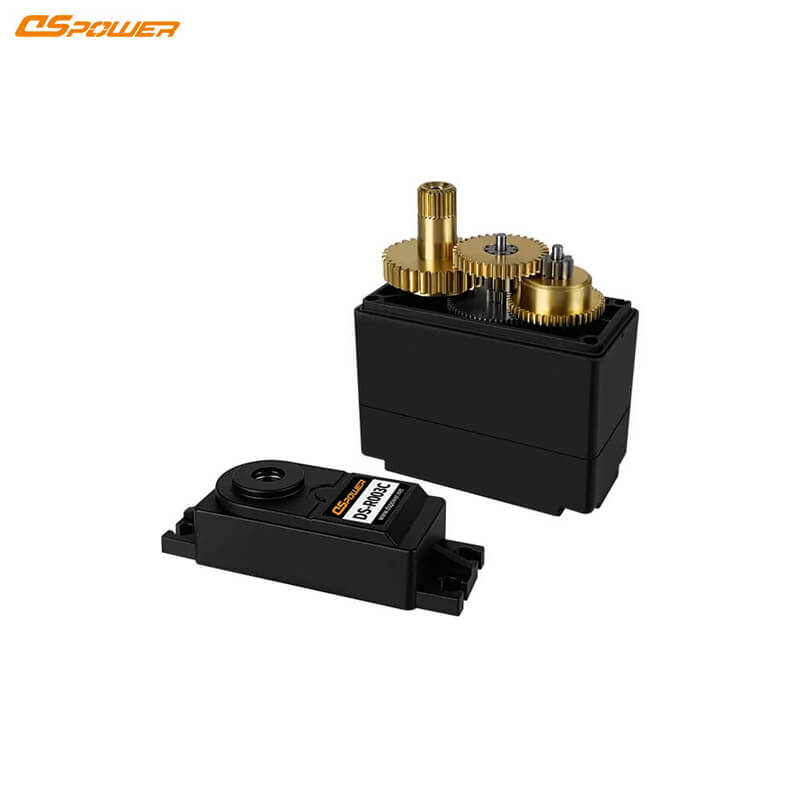

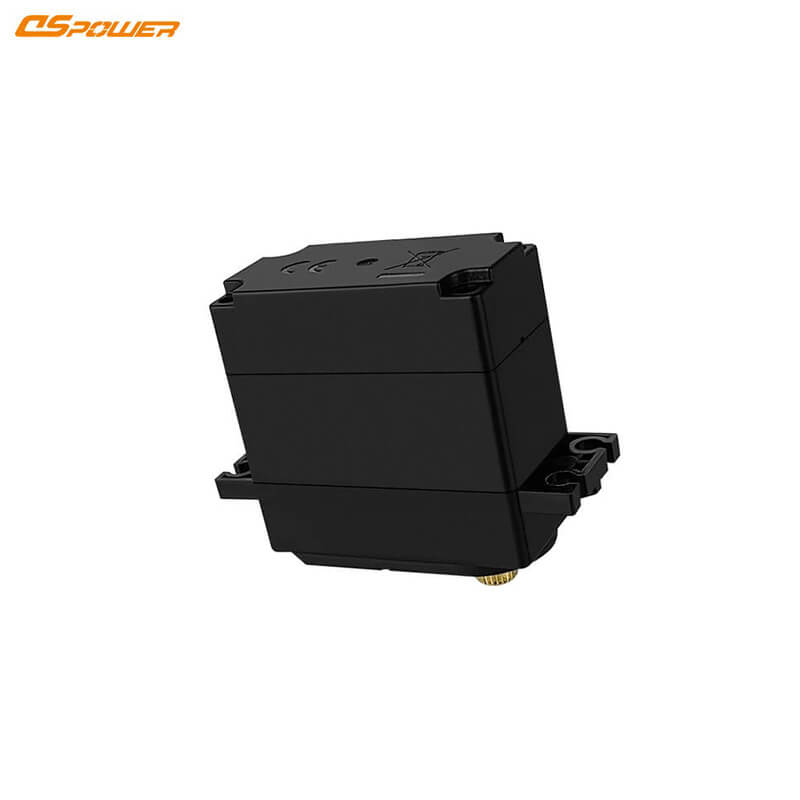

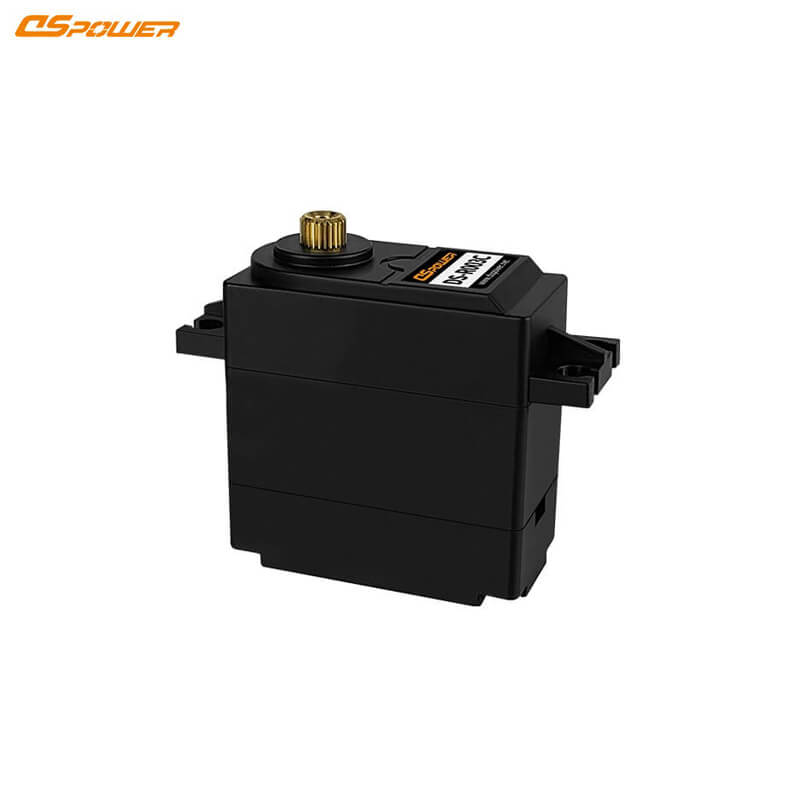

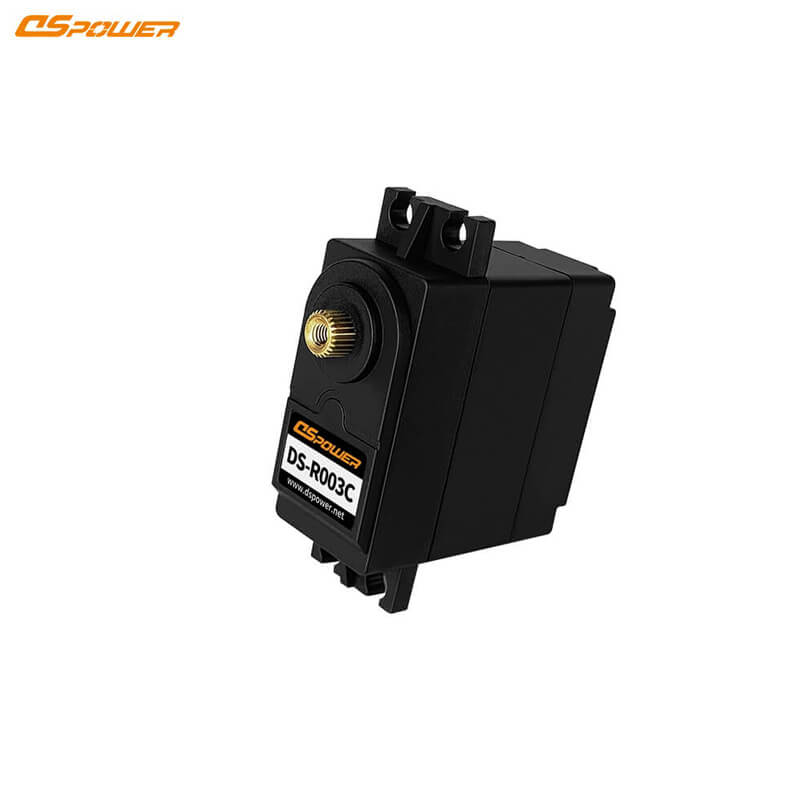

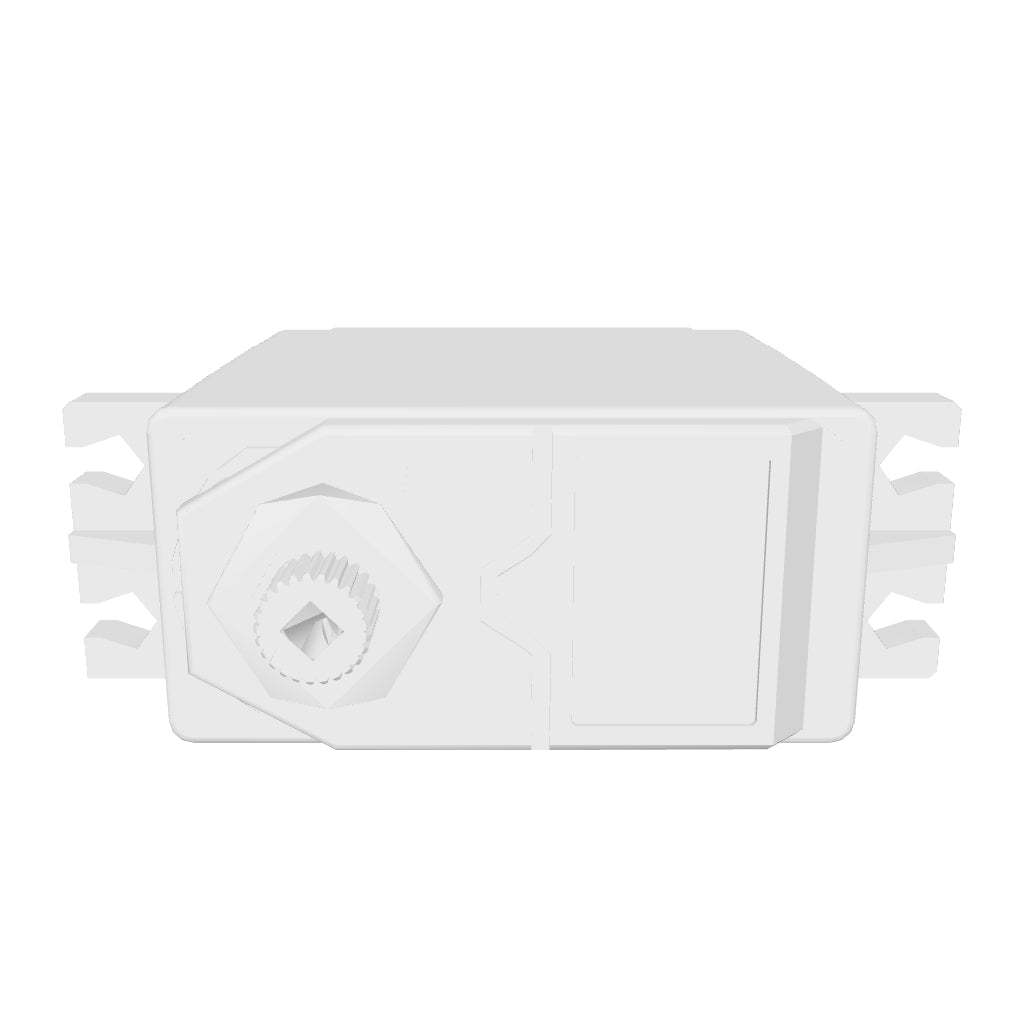

DSpower DS-R003C Servo Motor
Regular price
$25.00
Unit price
DSpower DS-R003C Servo Motor - DS-R003C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-R003C Servo Motor
Regular price
$25.00
Unit price
DSpower DS-R003C Servo Motor - DS-R003C is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0~8.4V DC |
| No Load Speed | ≤0.16sec./60° |
| Rated Torque | 8.0kgf·cm |
| Stall Current | ≤5.0A |
| Stall Torque | ≥35kgf·cm |
| Pulse Width Range | 500~2500μs |
| Operating Travel Angle | 180°±10° |
| Mechanical Limit Angle | 360° |
| Weight | 66.8±1.5g |
| Case Material | PA66 |
| Gear Set Material | Metal |
| Motor Type | Core motor |
