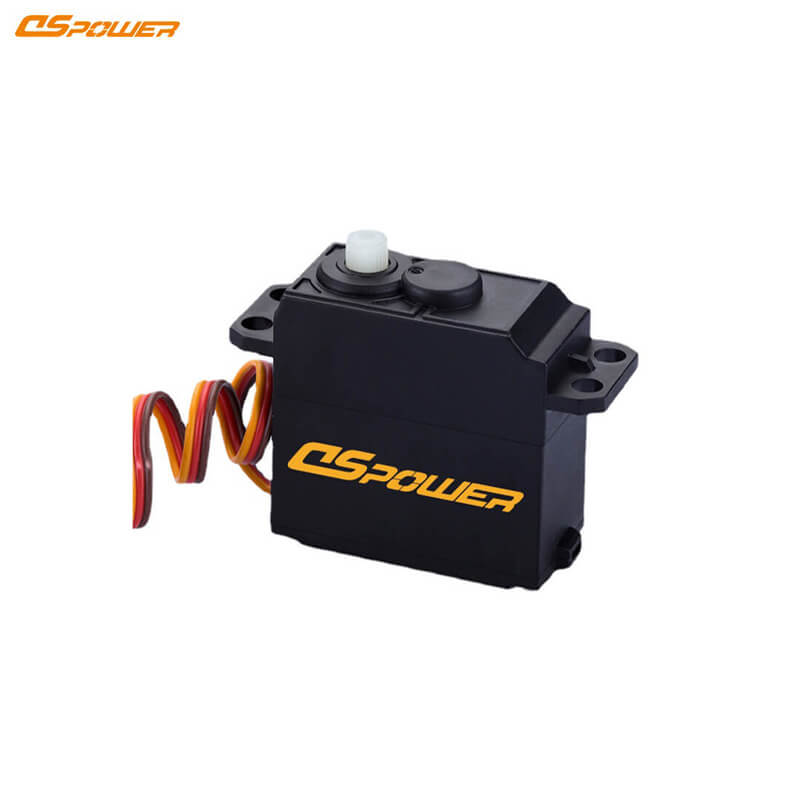

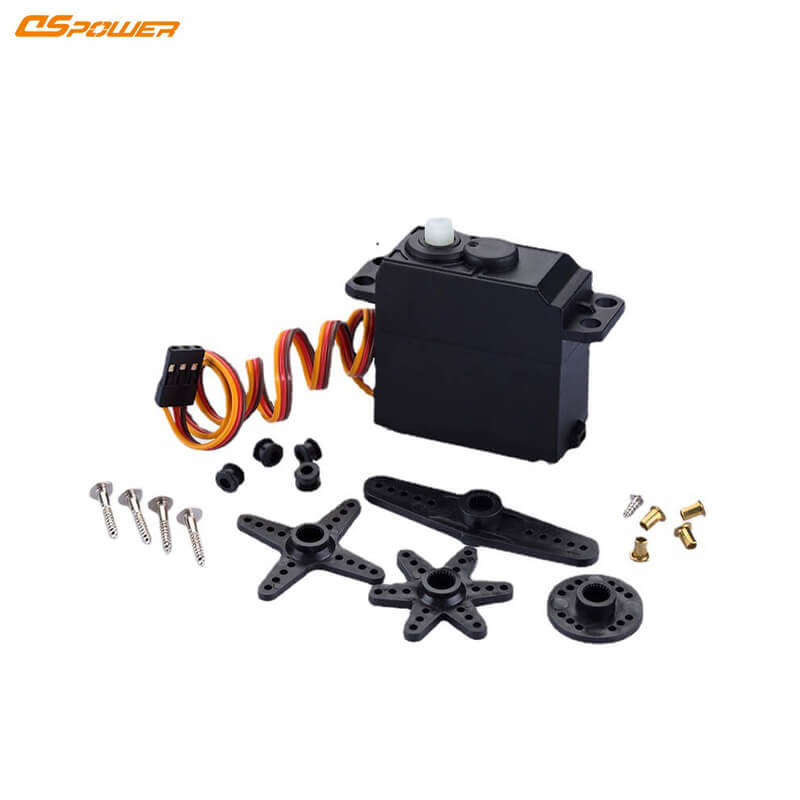

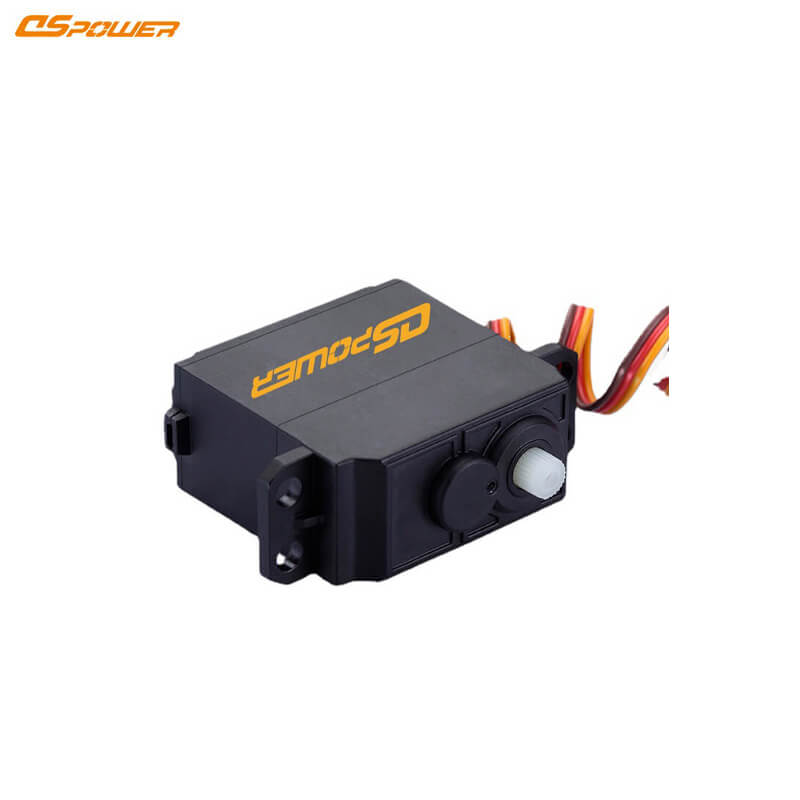

DSpower DS-R001 Servo Motor
Regular price
$25.00
Unit price
DSpower DS-R001 Servo Motor - DS-R001 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-R001 Servo Motor
Regular price
$25.00
Unit price
DSpower DS-R001 Servo Motor - DS-R001 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 4.8~6.0V DC |
| Static Current | ≤10mA at 6.0V |
| Stall Current | ≤1.65A at 6.0V |
| Stall Torque | ≥8kgf·cm |
| Rotating Direction | CCW (500→2500μs) |
| No-load Speed | ≤0.21 Sec/60° |
| Pulse Width Range | 500~2500μs |
| Operating Travel Angle | 180° |
| Return Angle Deviation | ≤1° |
| Weight | 52g |
| Communication Interface | PWM |
| Output Shaft Specification | 25T/Ø5.90mm |
| Plug | JR2.54 |
