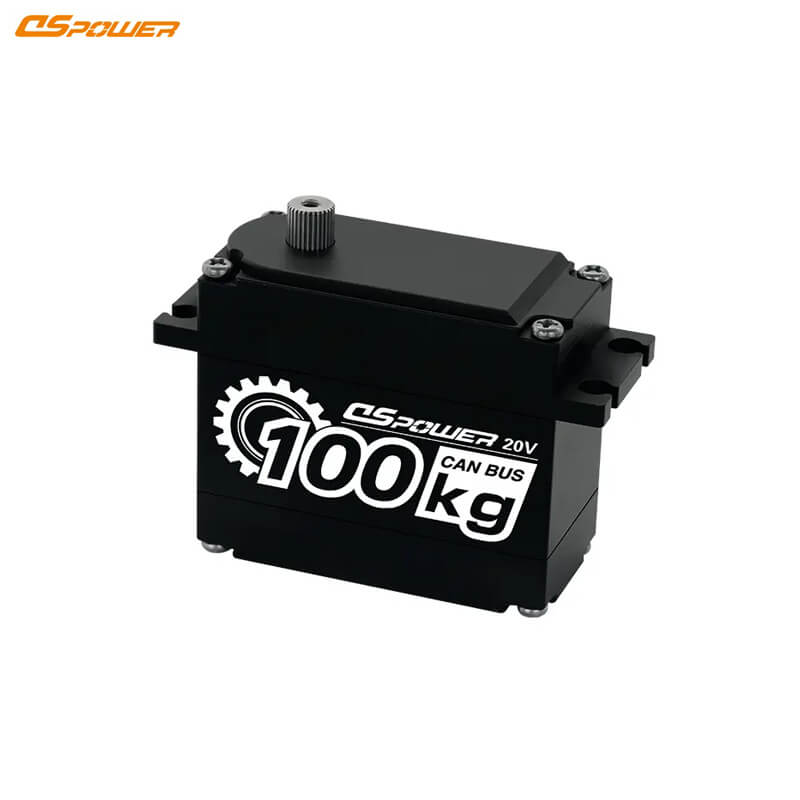

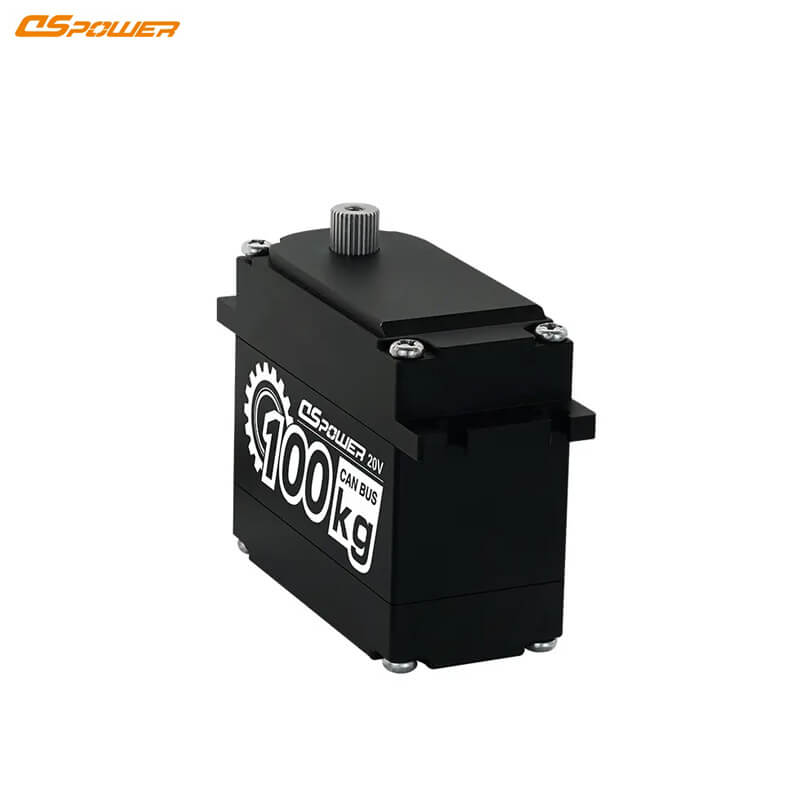

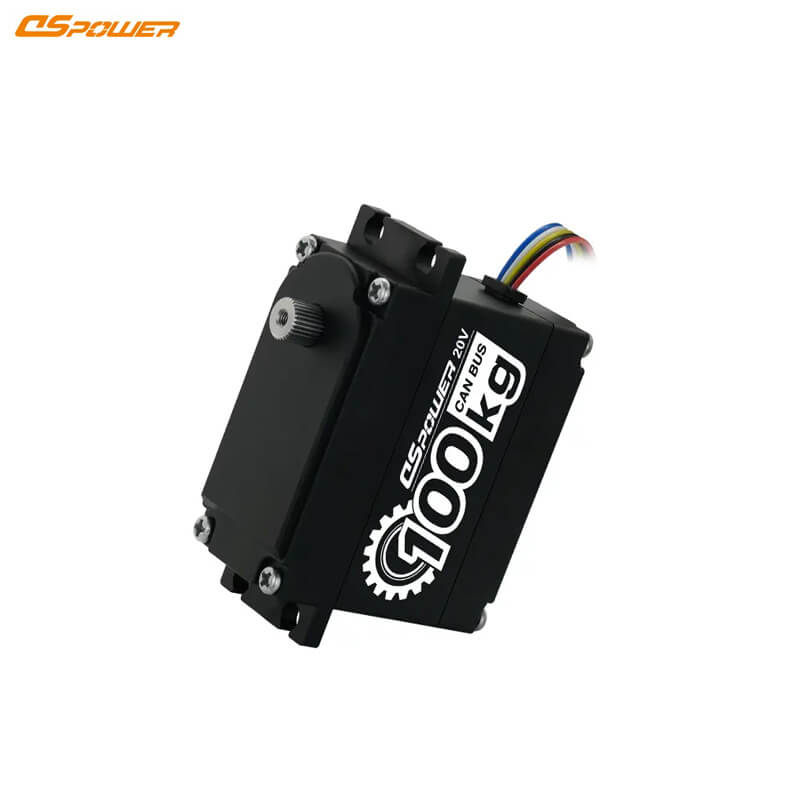

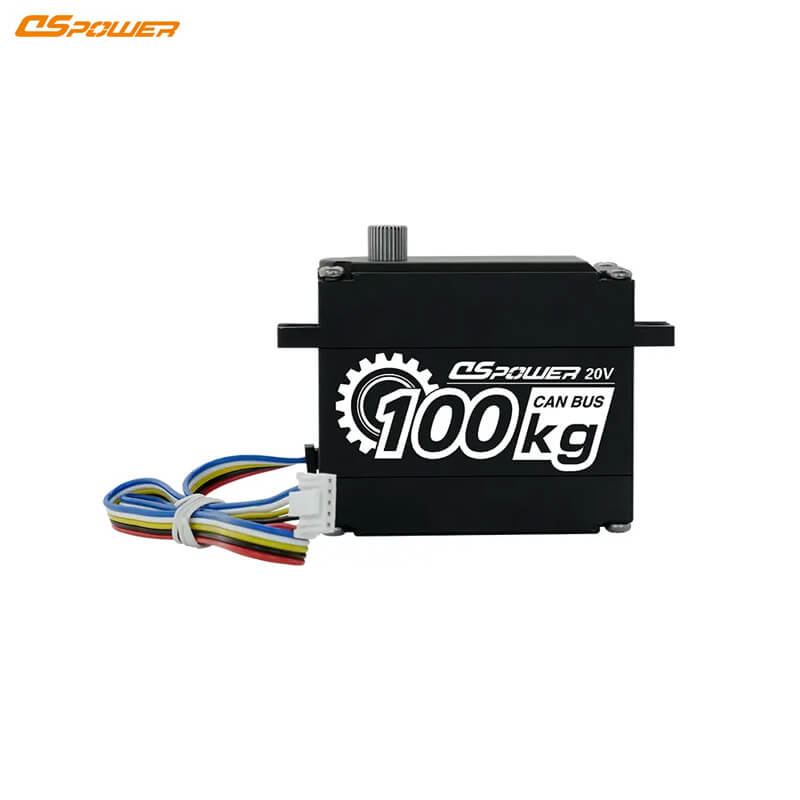

DSpower DS-P008 Servo Motor

$100.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Operating Voltage 14 – 22 V DC
Static Current TBD
Stall Current ≤3.5 A
Rated Torque 15 kgf·cm
Rotating Direction CCW
No-load Speed ≤0.27 sec/60°
Pulse Width Range 0 – 4096
Operating Travel Angle 360°
L&R Angle Deviation TBD
Weight TBD
Communication Interface CAN
Output Shaft 30T / D8
Backlash ≤1°

DSpower DS-P008 Servo Motor.pdf
