DSpower

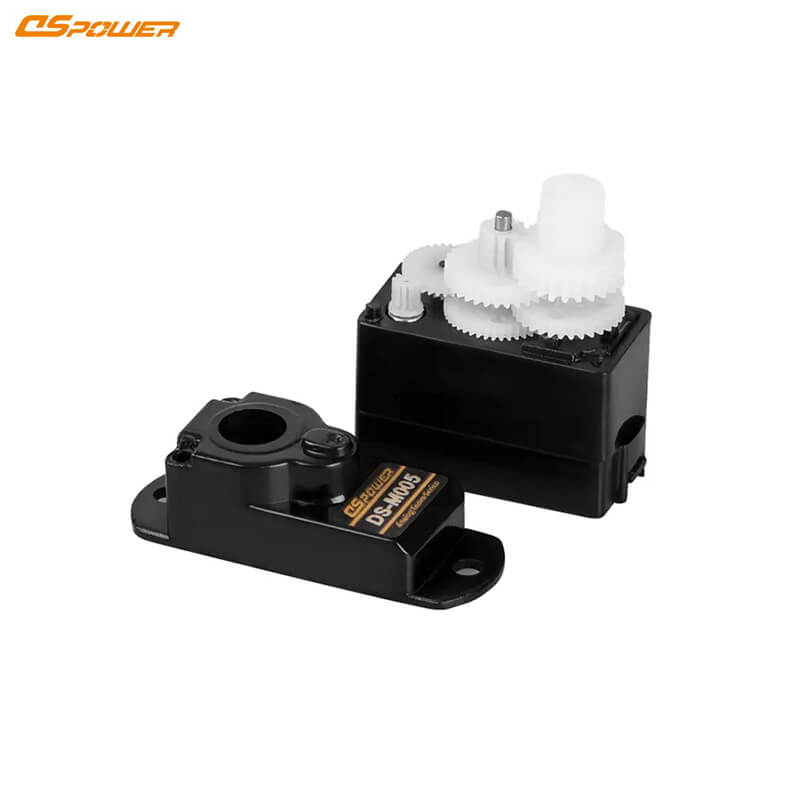

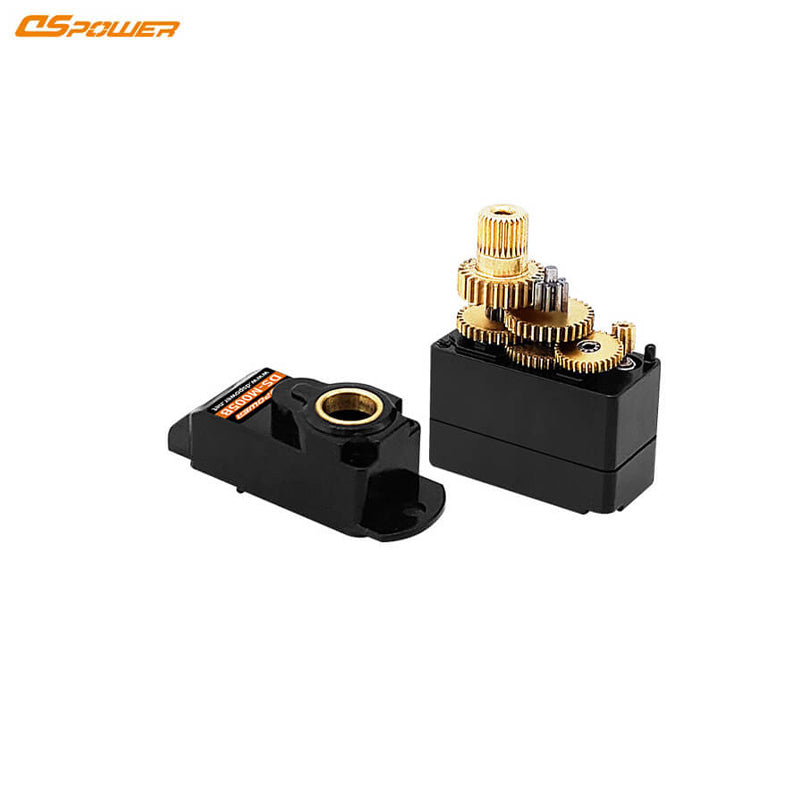

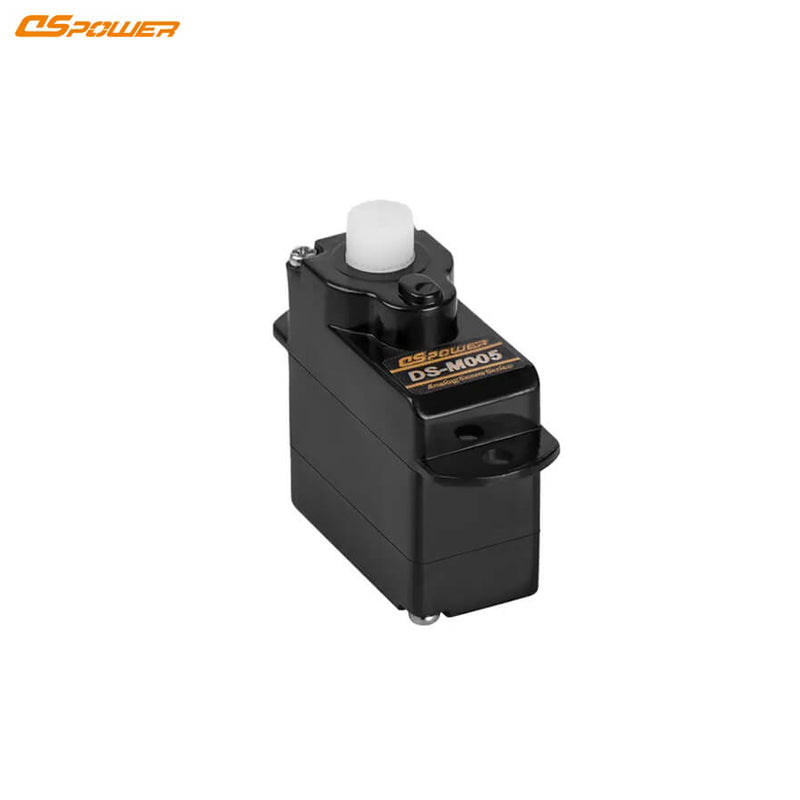

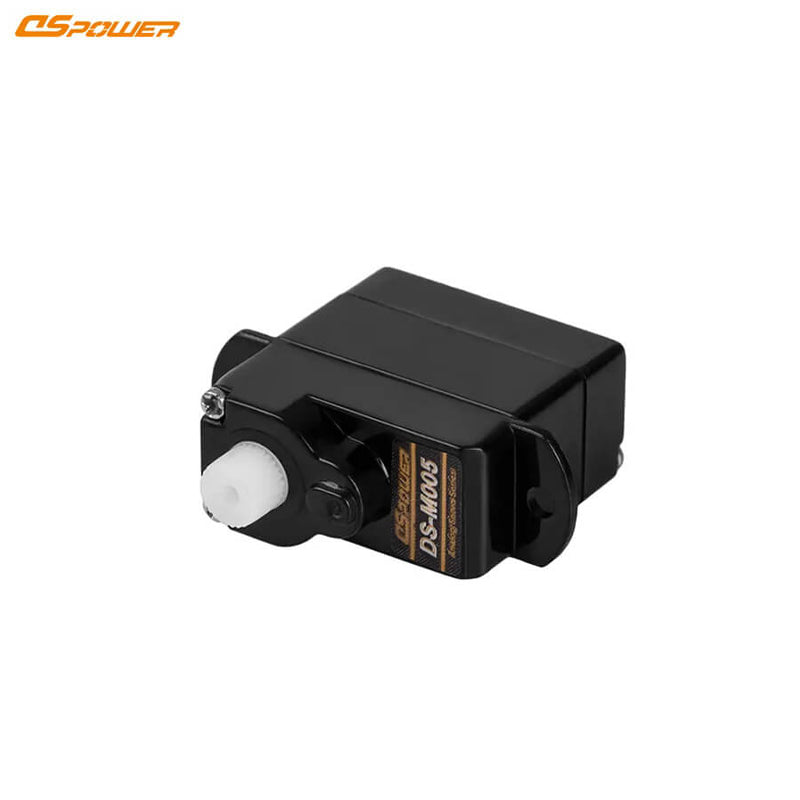

DSpower DS-M005 Servo Motor

$25.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value
Brand DSpower DSpower
Product Model DS-M005 DS-M005B
Operating Voltage 3.7 – 4.2 V 5 V DC
Static Current ≤20 mA ≤40 mA
Stall Current ≤350 mA ≤550 mA at 4.8V, ≤600 mA at 6V
Stall Torque ≥0.35 kgf·cm ≥0.45 kgf·cm at 4.8V, ≥0.5 kgf·cm at 6V
Rotating Direction CCW (1000 → 2000 μs) CCW (1000 → 2000 µs)
No-load Speed 0.075 sec/60° 0.11 sec/60°
Pulse Width Range 500 ~ 2500 μs (180°) 500 ~ 2500 µs
Operating Travel Angle 90° (1000 ~ 2000 μs) 90°
Return Angle Deviation ≤1° ≤1°
Weight 2.2 ± 0.3 g 4.8 ± 0.2 g
Communication Interface PWM PWM
Wire Length 150 mm 250 mm
Output Shaft 28T / Φ3.90 mm 28T / Φ3.90 mm
Plug JR 2.54 JR 2.54

DSpower DS-M005 Servo Motor.pdf
