DSpower

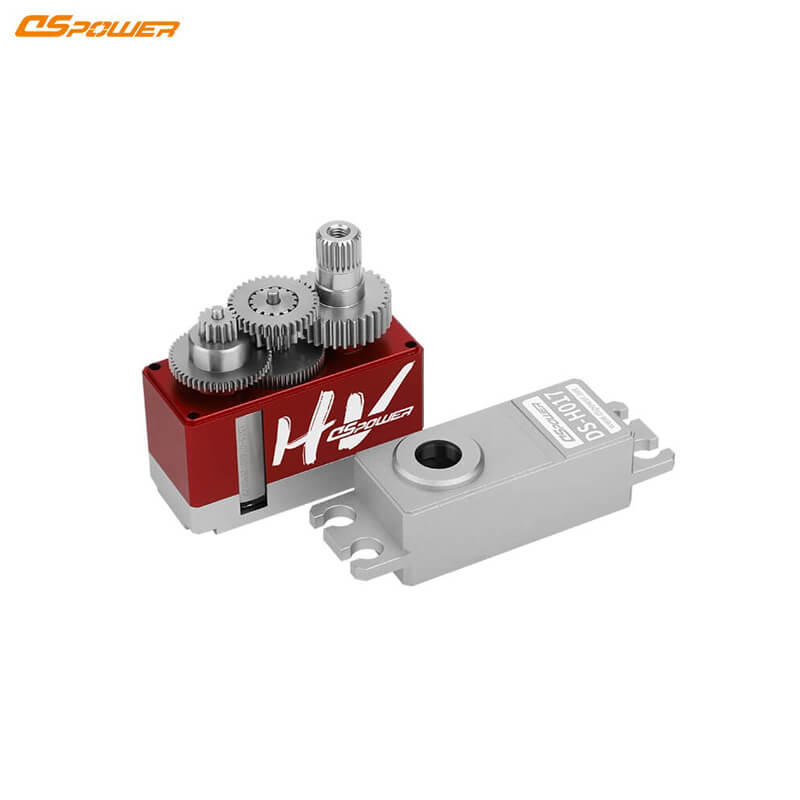

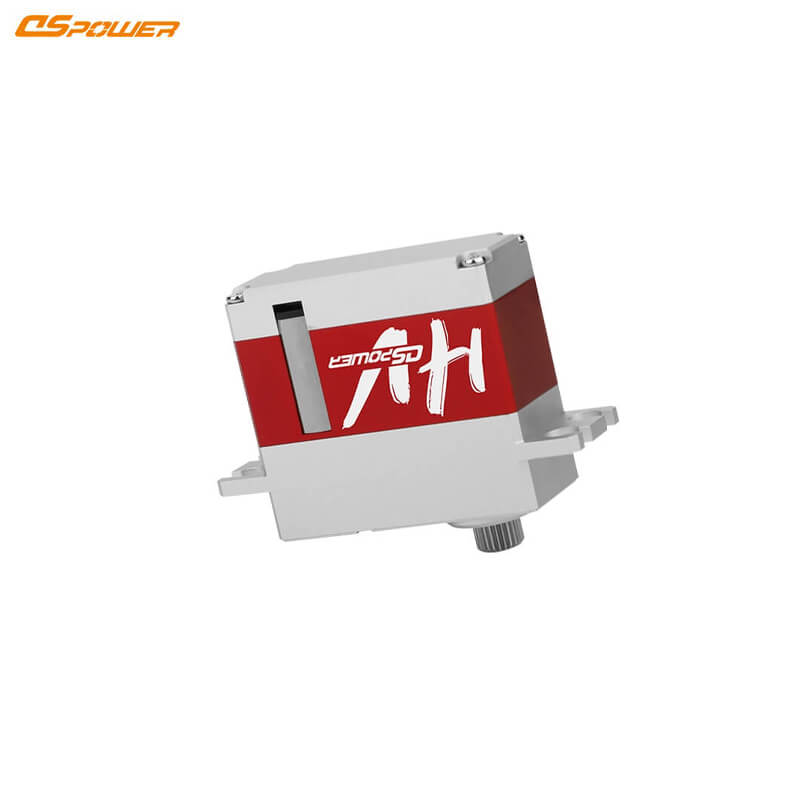

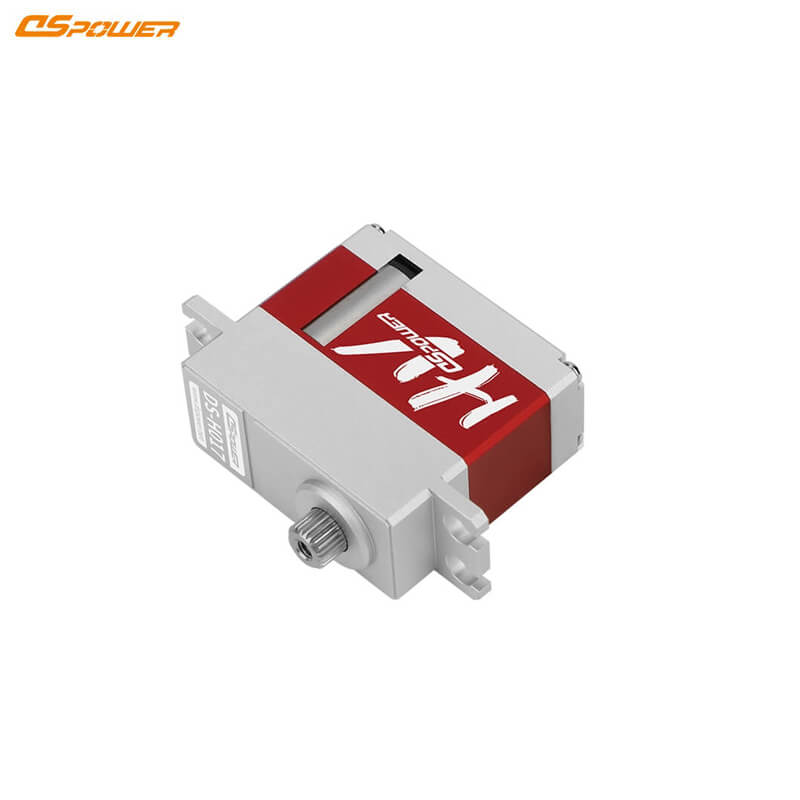

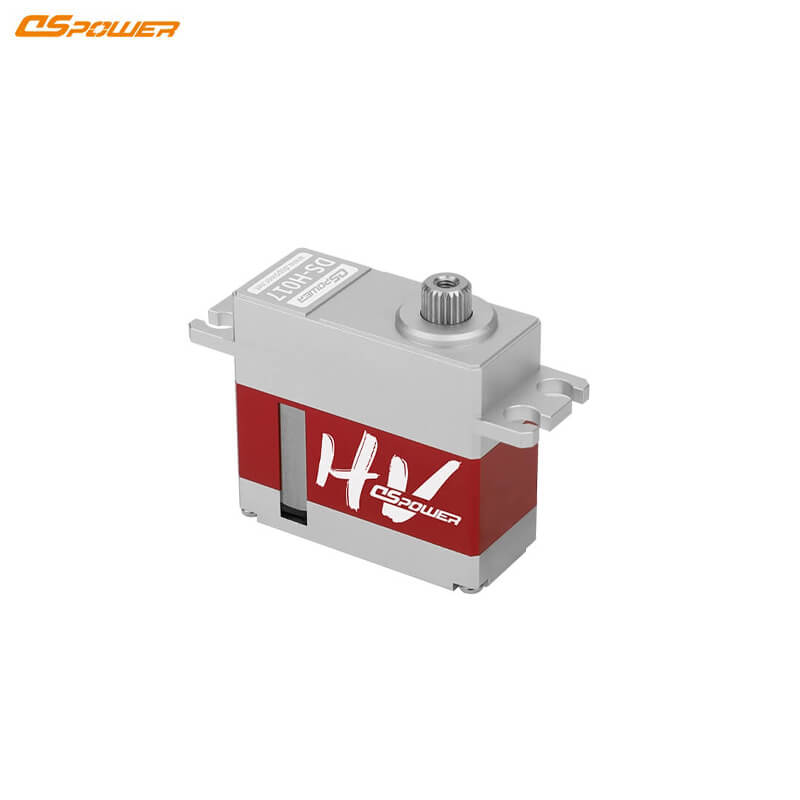

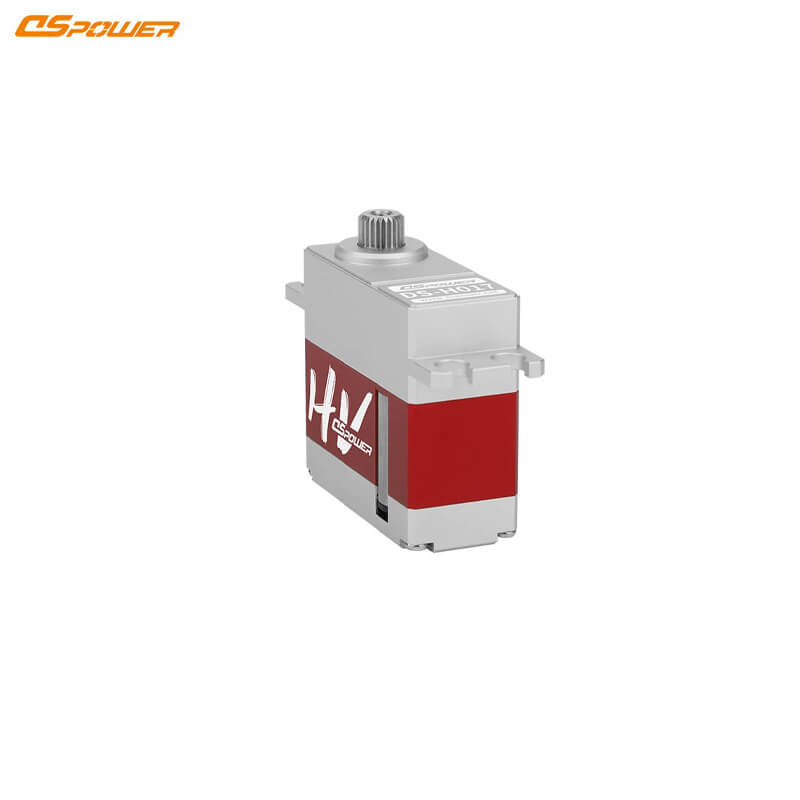

DSpower DS-H017 Servo Motor

$80.00

Version

DS-H017

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value
Operating Voltage	6.0~8.4V DC
No Load Speed	≤0.085sec./60° at 6.0 V
	≤0.065sec./60° at 8.4 V
No Load Current	≤300 mA at 6.0 V
	≤420 mA at 8.4 V
Stall Current	≤1.8A at 6.0 V
	≤2.3A at 8.4 V
Stall Torque	≥5 kgf·cm at 6.0 V
	≥7 kgf·cm at 8.4 V
Pulse Width Range	1000~2000μs
Operating Travel Angle	95°±10°
Maximum Travel Angle	115°±10°
Weight	37.5±1.5g
Case Material	Plastic Casing + Aluminium Alloy
Gear Set Material	Metal Gears
Motor Type	Core Motor

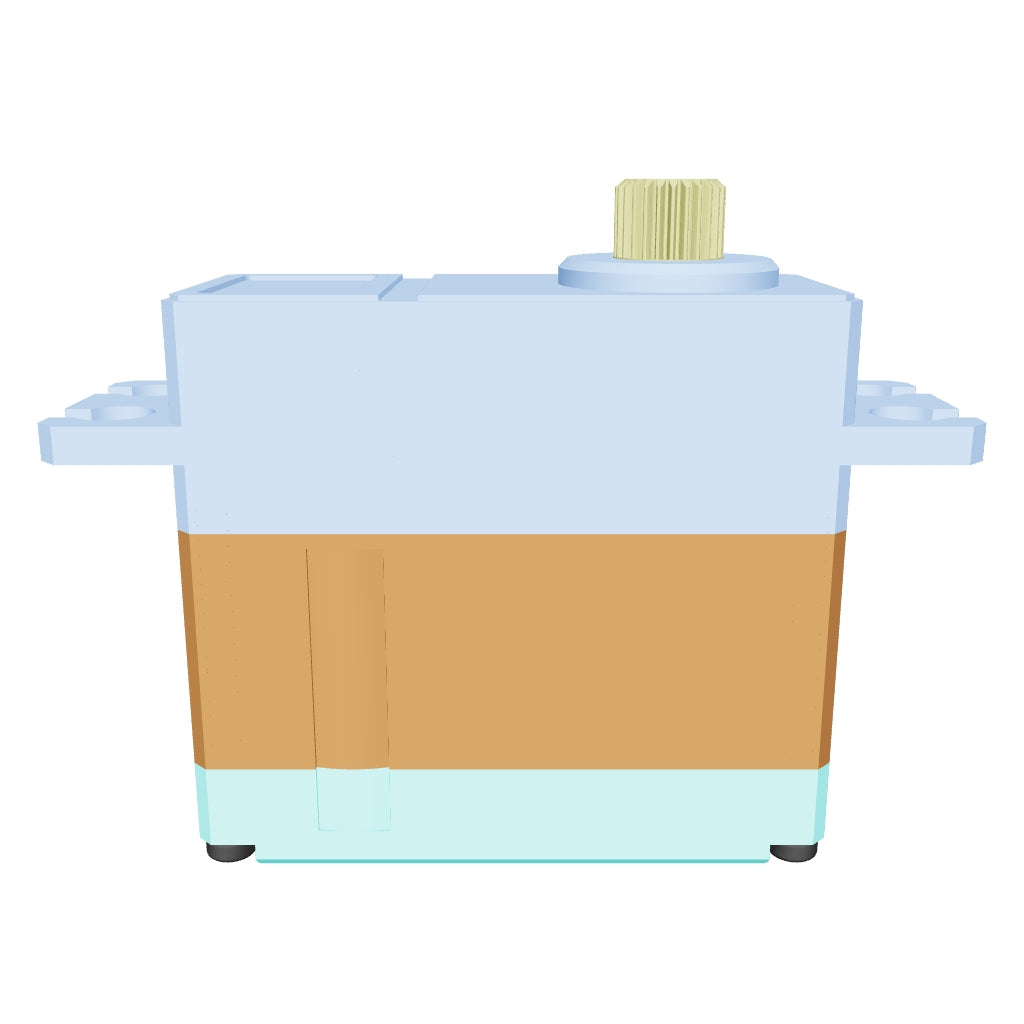

DSpower DS-H017 Servo Motor-DRAW.pdf
