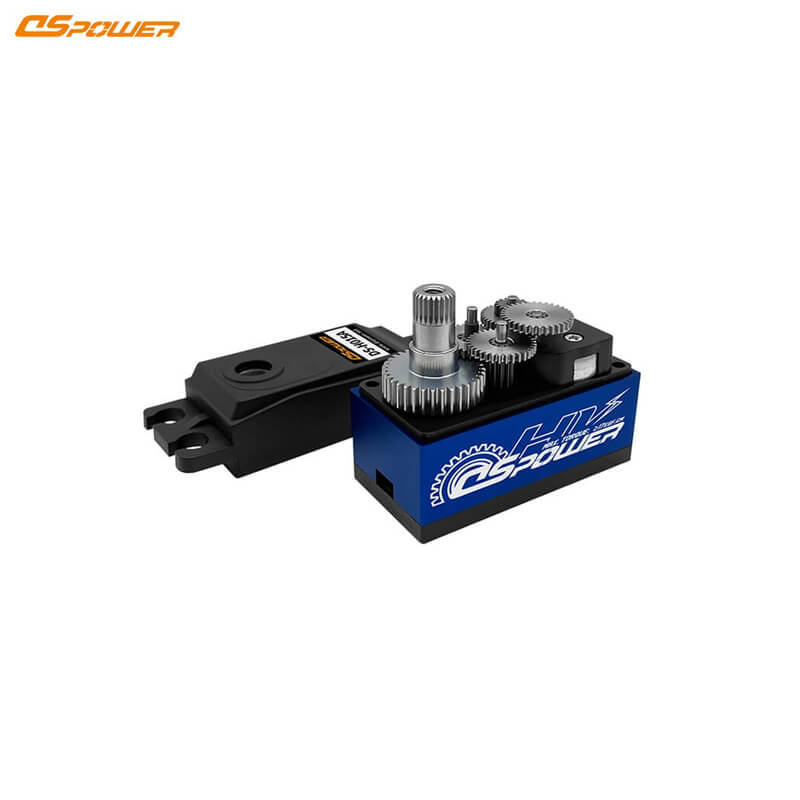

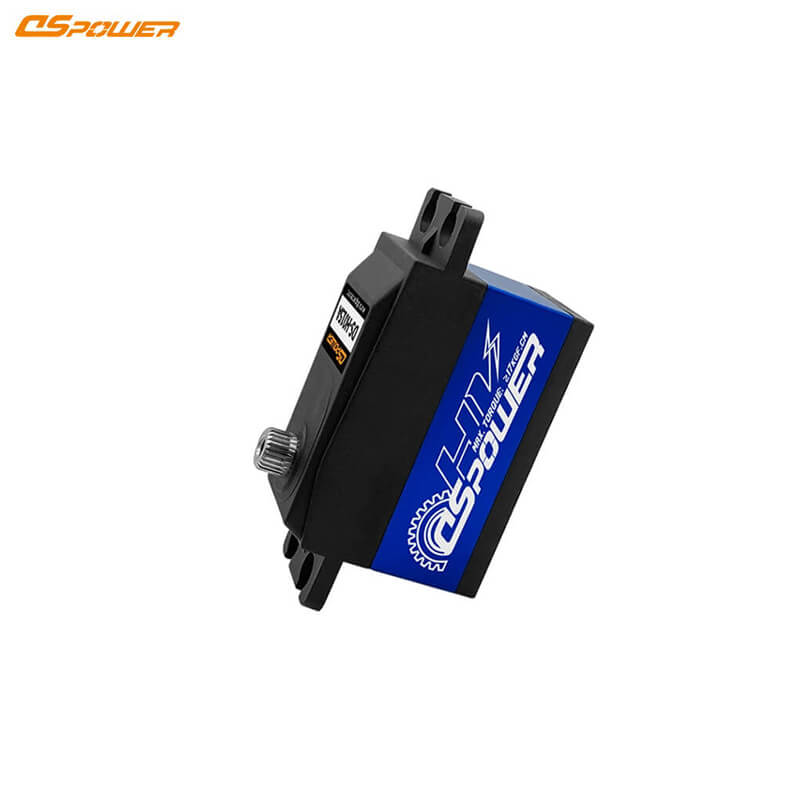

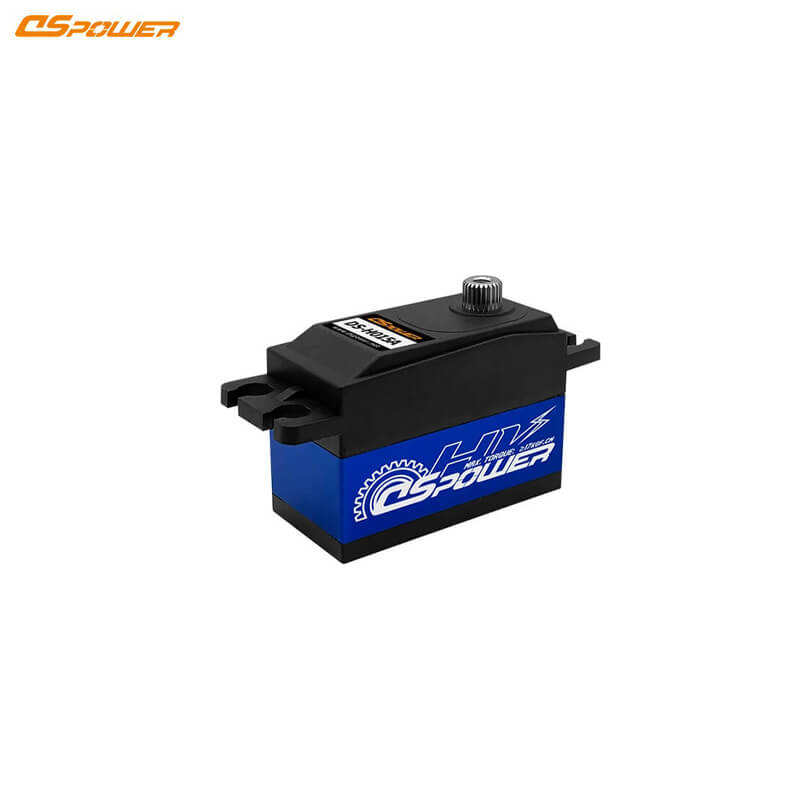

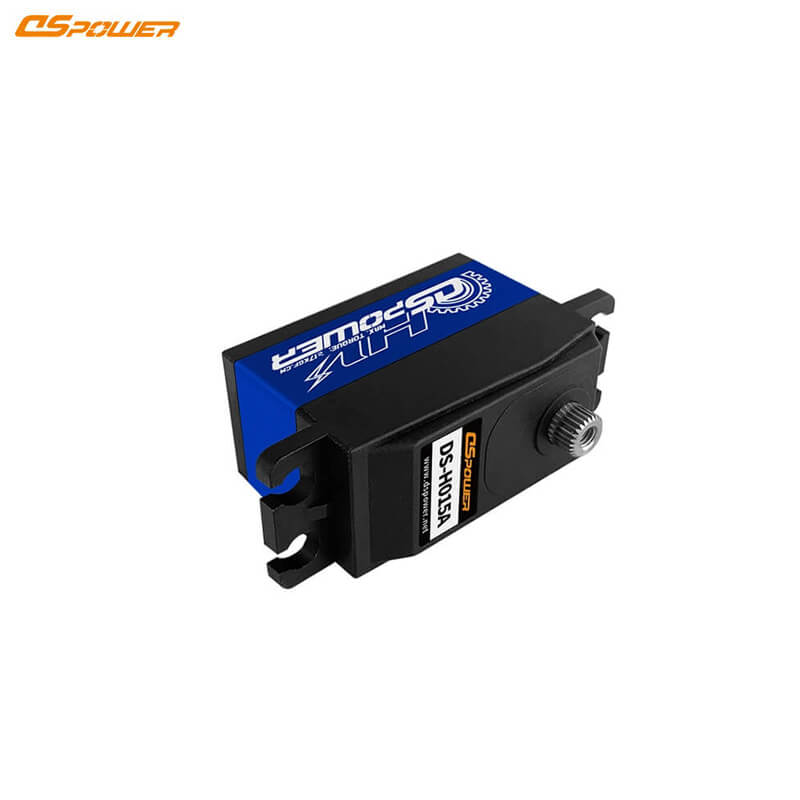

DSpower DS-H015A Servo Motor

$25.00

Version

DS-H015A

Delivery and Shipping

We automatically select the most cost-effective carrier from China for each destination country
Shipping rates are dynamically calculated based on real-time quotes
Final rates may vary due to promotional offers or carrier adjustments

Application Scenarios

Humanoid Robots

Robotic Arms

Exoskeletons

Quadruped Robots

AGV Vehicles

ARU Robots

Technical Specifications

Parameter	Value
Operating Voltage	6.0~7.4V DC
No Load Speed	≤0.16sec./60° at 6.0V
	≤0.12sec./60° at 7.4V
Rated Torque	13kgf·cm at 6.0V
	16kgf·cm at 7.4V
Stall Current	≤3.6A at 6.0V
	≤4.2A at 7.4V
Consumption Current (No Load)	≤90 mA at 6.0V
	≤100 mA at 7.4V
Pulse Width Range	500~2500 us
Operating Travel Angle	180° ±10° (500~2500 us)
Mechanical Limit Angle	360°
Weight	42.5 ± 0.5g
Case Material	Plastic Casing + aluminium alloy
Gear Set Material	Metal Gears
Motor Type	Iron core motor

DSpower DS-H015A Servo Motor-DRAW.pdf
