DSpower | SKU:

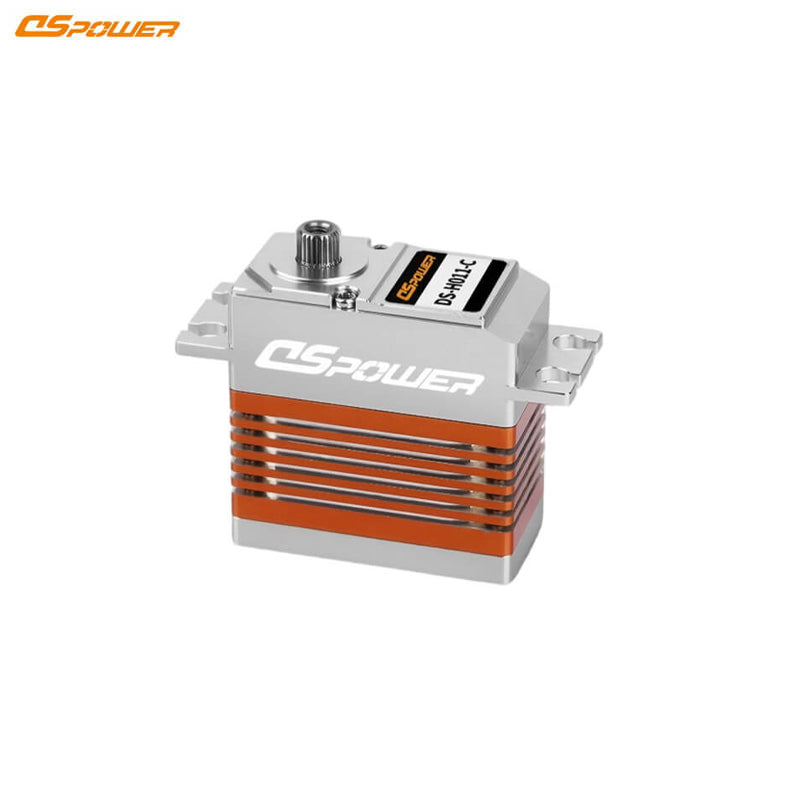

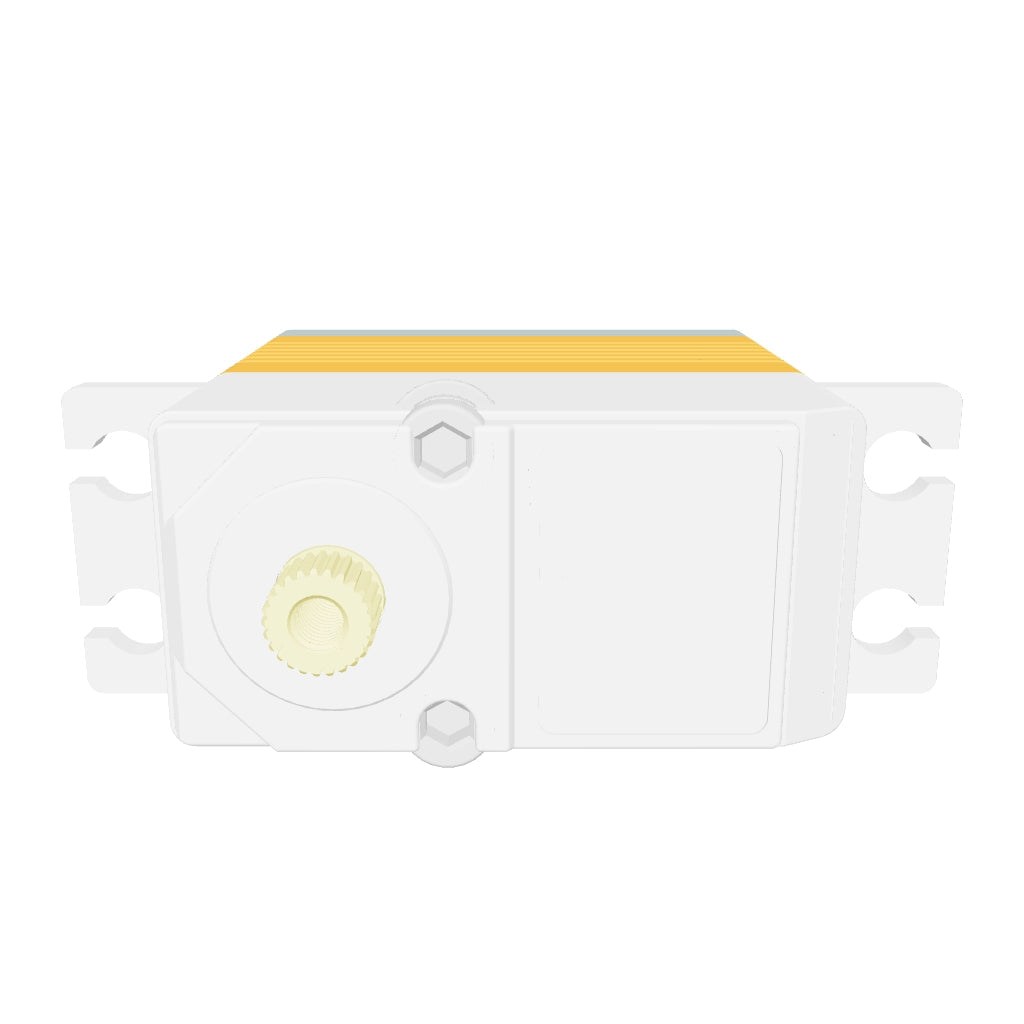

DSpower DS-H011-C Servo Motor
Regular price
$60.00
Unit price
DSpower DS-H011-C Servo Motor - DS-H011-C(25kg) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-H011-C Servo Motor
Regular priceFrom
$60.00
Unit price
DSpower DS-H011-C Servo Motor - DS-H011-C(25kg) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0~7.4V DC |
| No Load Speed |
≤0.2 sec./60° at 6.0V ≤0.18 sec./60° at 7.4V |
| Rated Torque |
14 kgf·cm at 6.0V 16 kgf·cm at 7.4V |
| Stall Current |
≤2.8A at 6.0V ≤3.3A at 7.4V |
| Stall Torque |
≥25.0 kgf·cm at 6.0V ≥28.0 kgf·cm at 7.4V |
| Pulse Width Range | 500~2500 μs |
| Operating Travel Angle | 180°±10° |
| Mechanical Limit Angle | 210° |
| Weight | 70g ±1 |
| Case Material | Full CNC alloy high-grade aluminum shell |

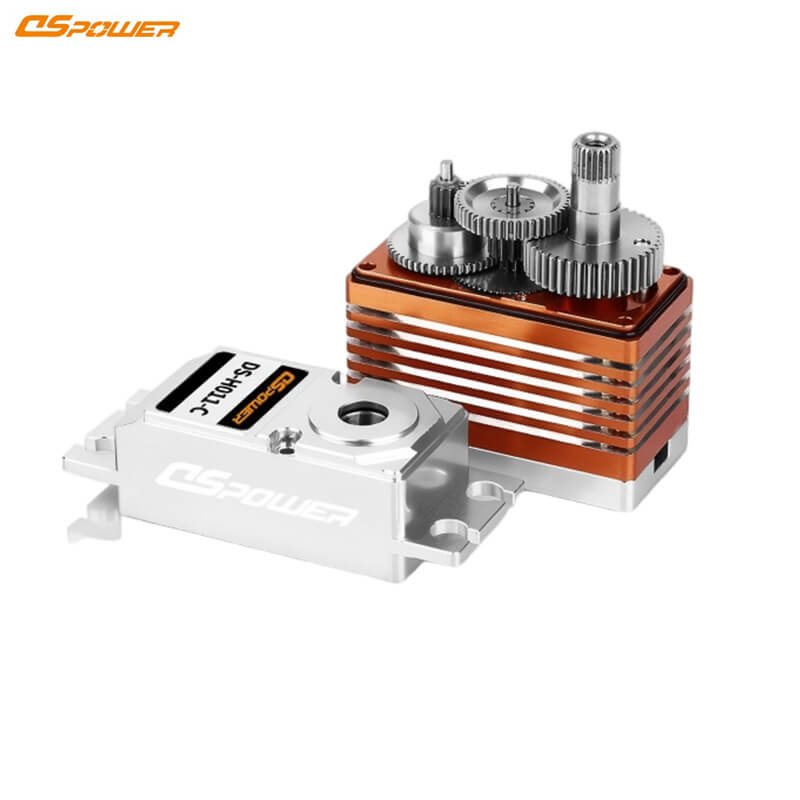

| Gear Set Material | Strong steel gear train |
| Motor Type | Coreless Motor |
