DSpower | SKU:
DSpower DS-H008-C Servo Motor
Regular price
$50.00
Unit price
DSpower DS-H008-C Servo Motor - DS-H008-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

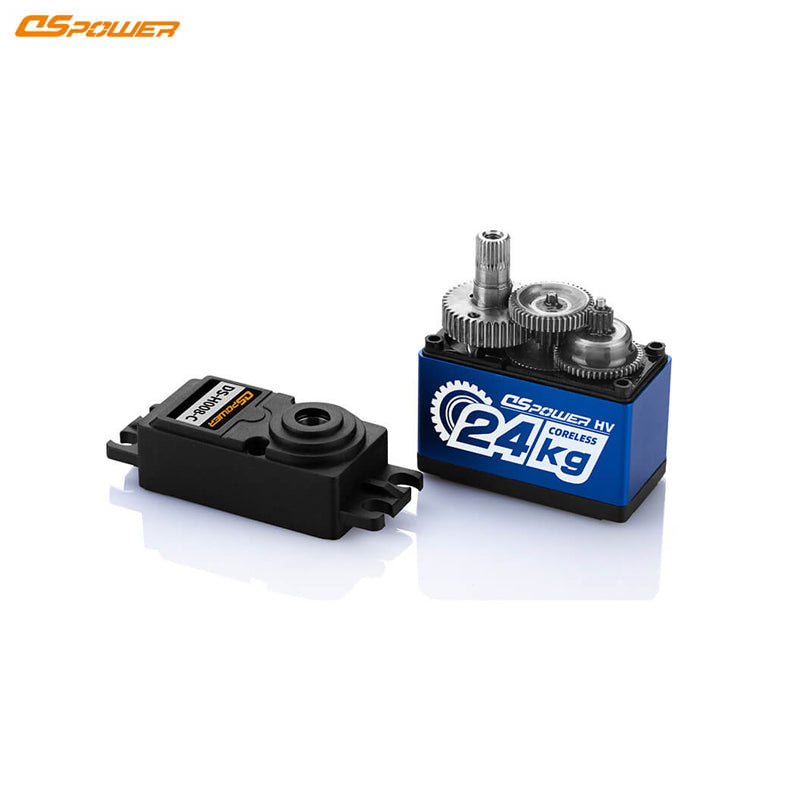

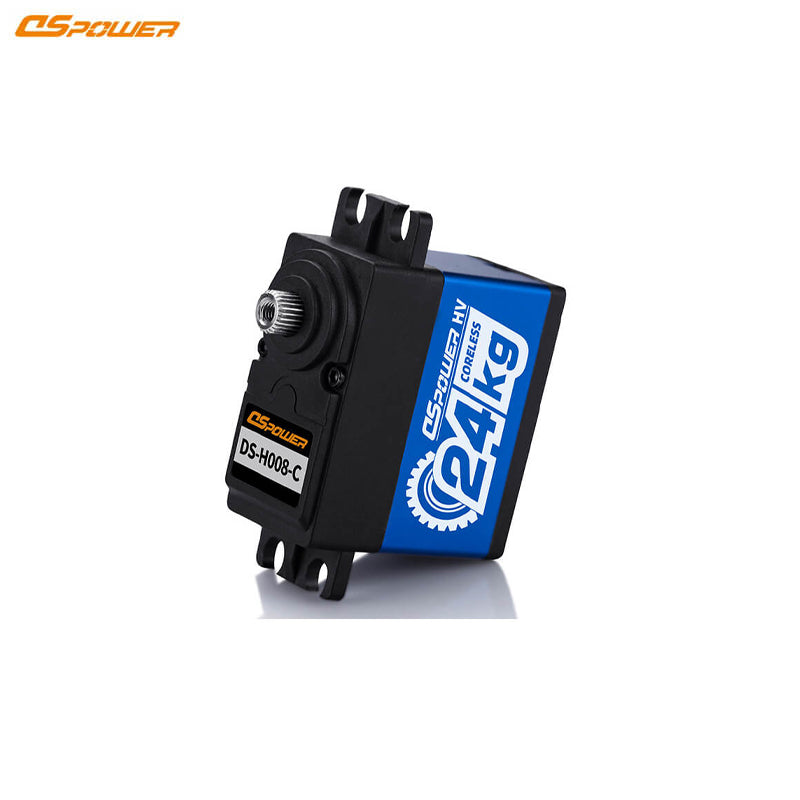

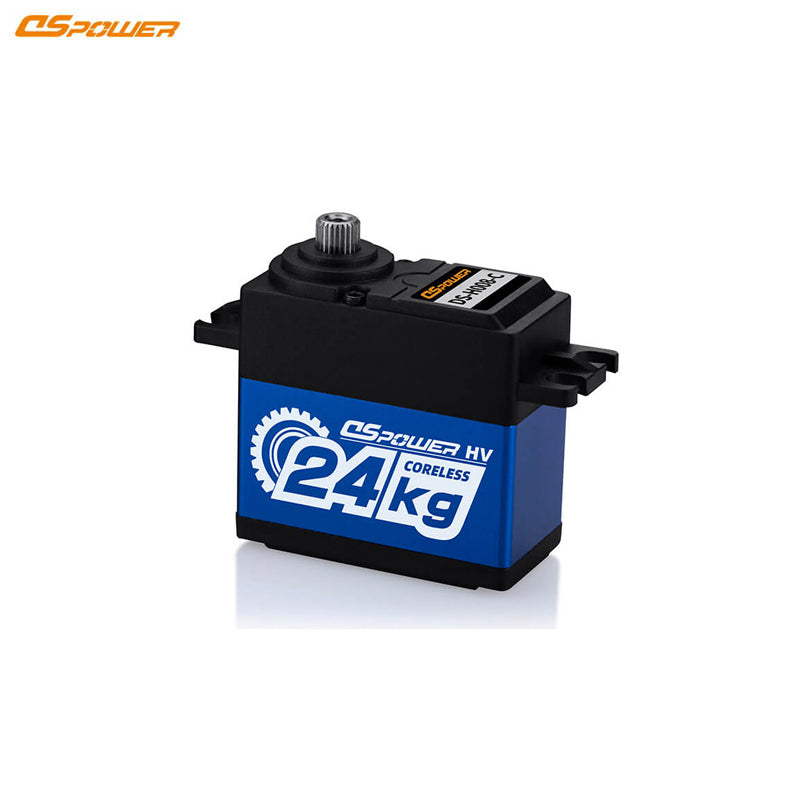

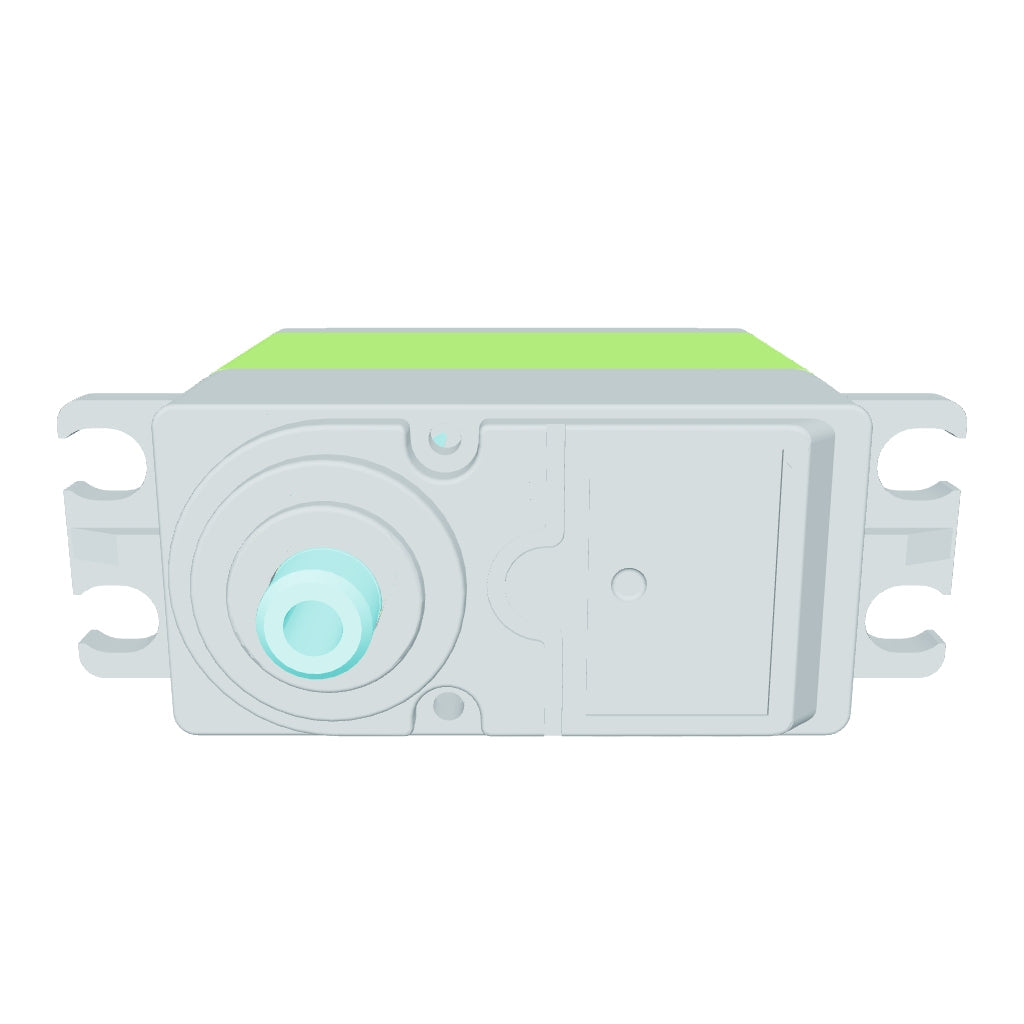

DSpower DS-H008-C Servo Motor
Regular price
$50.00
Unit price
DSpower DS-H008-C Servo Motor - DS-H008-C is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0–7.4 V DC |
| No-Load Speed |
≤0.16 sec./60° at 6.0V ≤0.12 sec./60° at 7.4V |
| Rated Torque |
6 kgf·cm at 6.0V 7 kgf·cm at 7.4V |
| Stall Current |
≤3.3 A at 6.0V ≤4.1 A at 7.4V |
| Maximum Torque |
≥24.0 kgf·cm at 6.0V ≥28.0 kgf·cm at 7.4V |
| Pulse Width Range | 500–2500 μs |
| Operating Angle | 180° ±10° |
| Mechanical Limit Angle | 210° |
| Weight | 64 ± 0.5 g |
| Housing Material | PA+30%GF, Aluminum middle case |
| Gear Material | Metal Gears |
| Motor Type | Coreless Motor |
