DSpower | SKU:
DSpower DS-H003 Servo Motor
Regular price
$80.00
Unit price
DSpower DS-H003 Servo Motor - DS-H003 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments

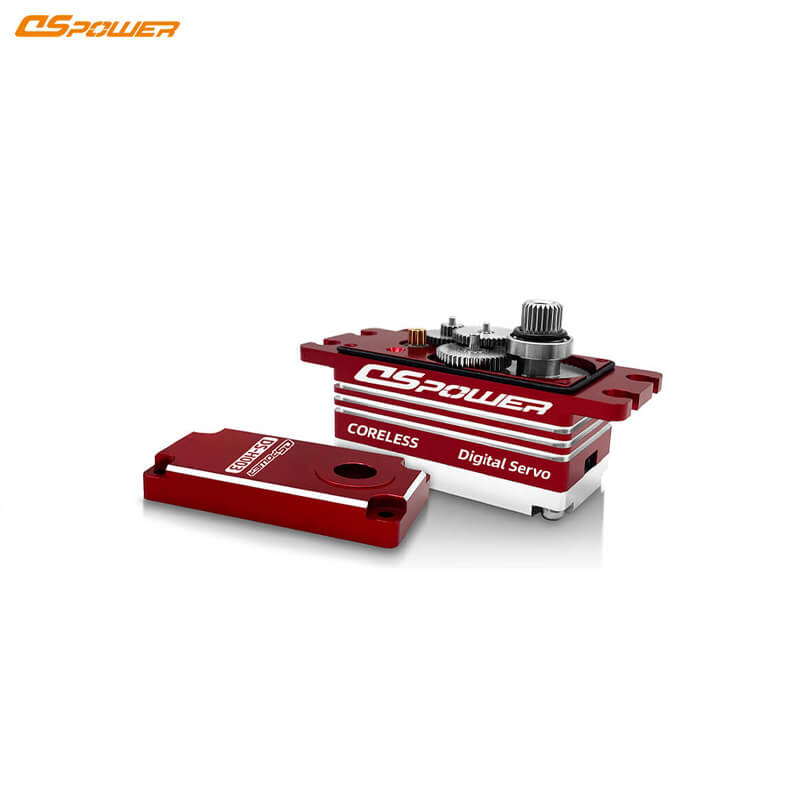

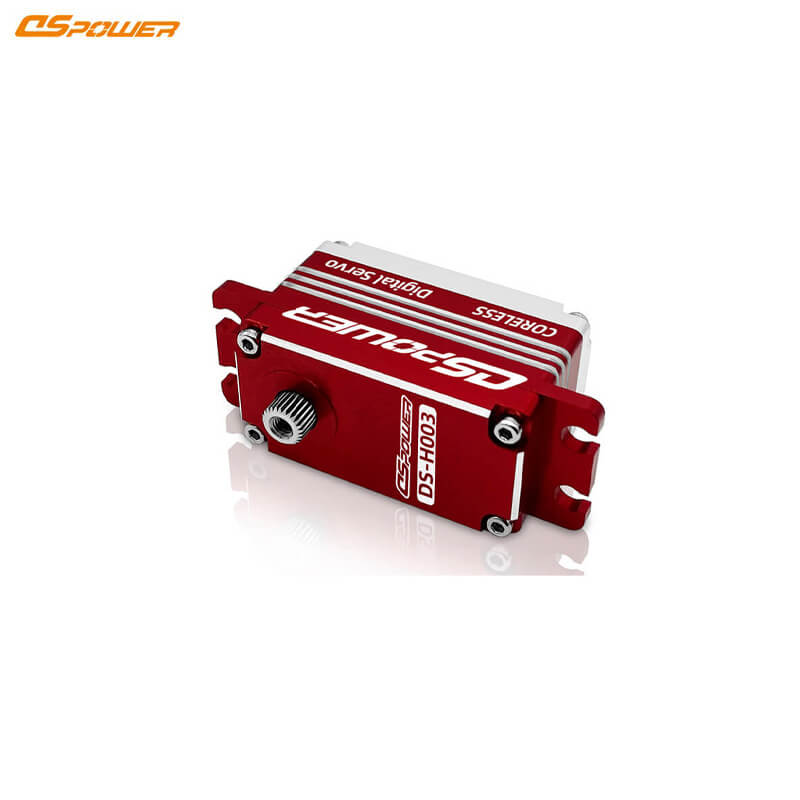

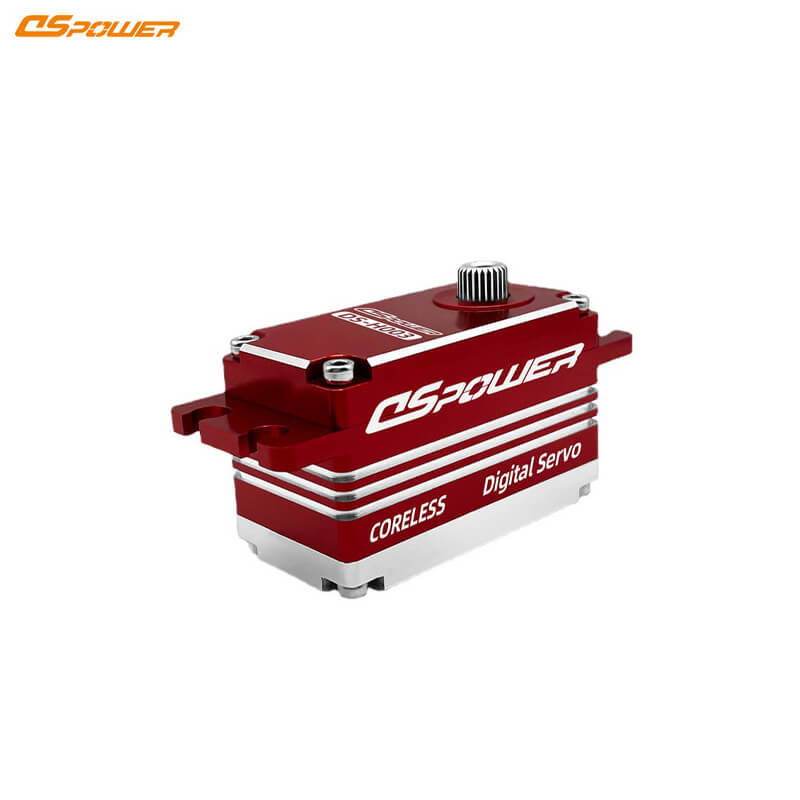

DSpower DS-H003 Servo Motor
Regular price
$80.00
Unit price
DSpower DS-H003 Servo Motor - DS-H003 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0–7.4 VDC |
| No-Load Speed |
≤0.09 sec./60° at 6.0V ≤0.08 sec./60° at 7.4V |
| Stall Current |
≤3.2 A at 6.0V ≤4.0 A at 7.4V |
| Maximum Torque |
≥13 kgf·cm at 6.0V ≥16 kgf·cm at 7.4V |
| Pulse Width Range | 500–2500 µs |
| Operating Angle | 180° ±10° |
| Mechanical Limit Angle | 360° |
| Weight | 58 ±0.5 g |
| Housing Material | Metal |
| Gear Material | Metal Gears |
| Motor Type | Coreless Motor |
