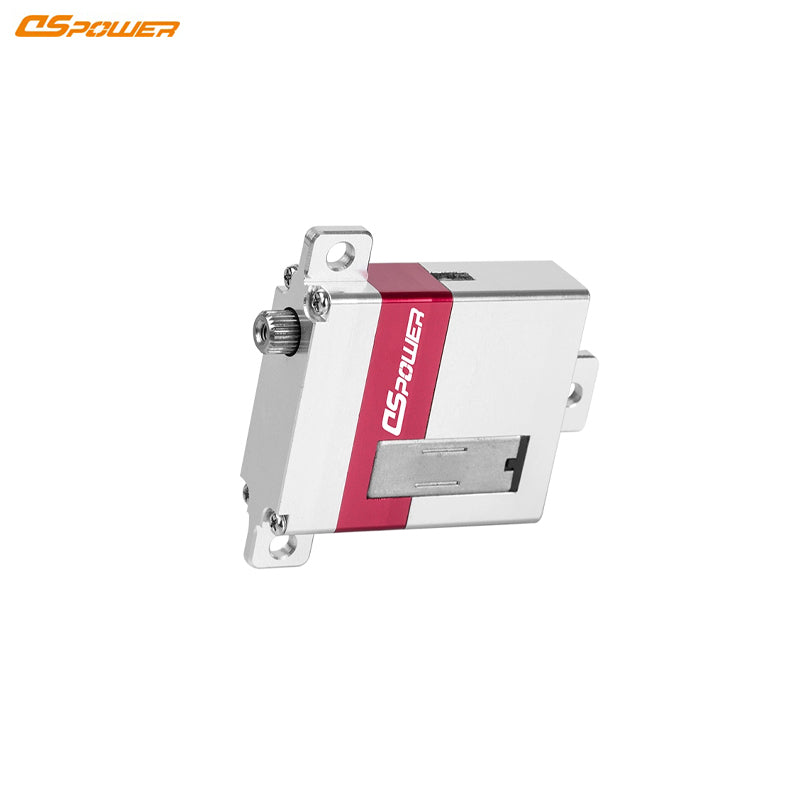

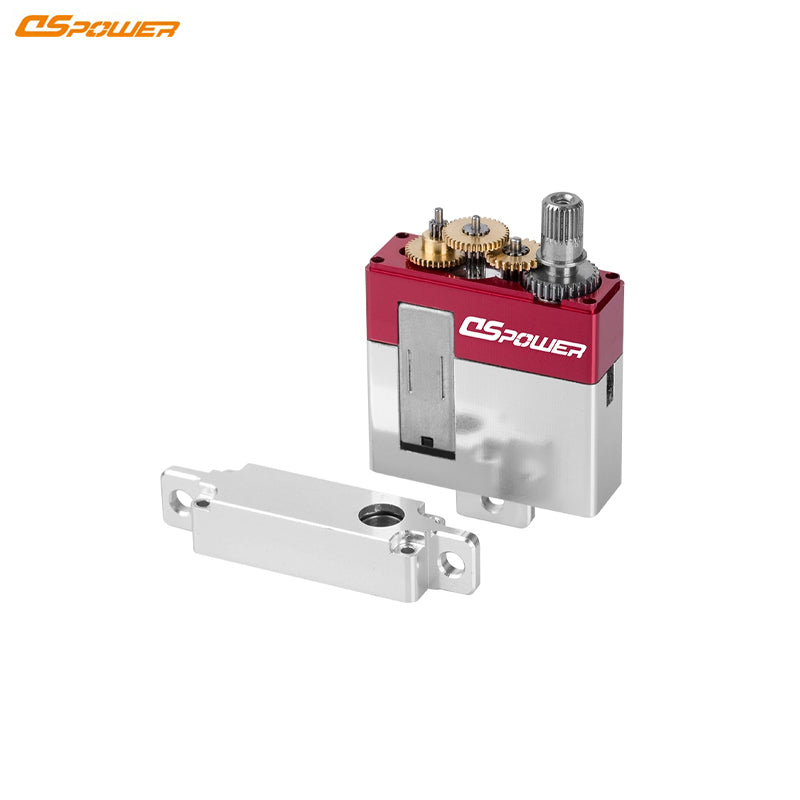

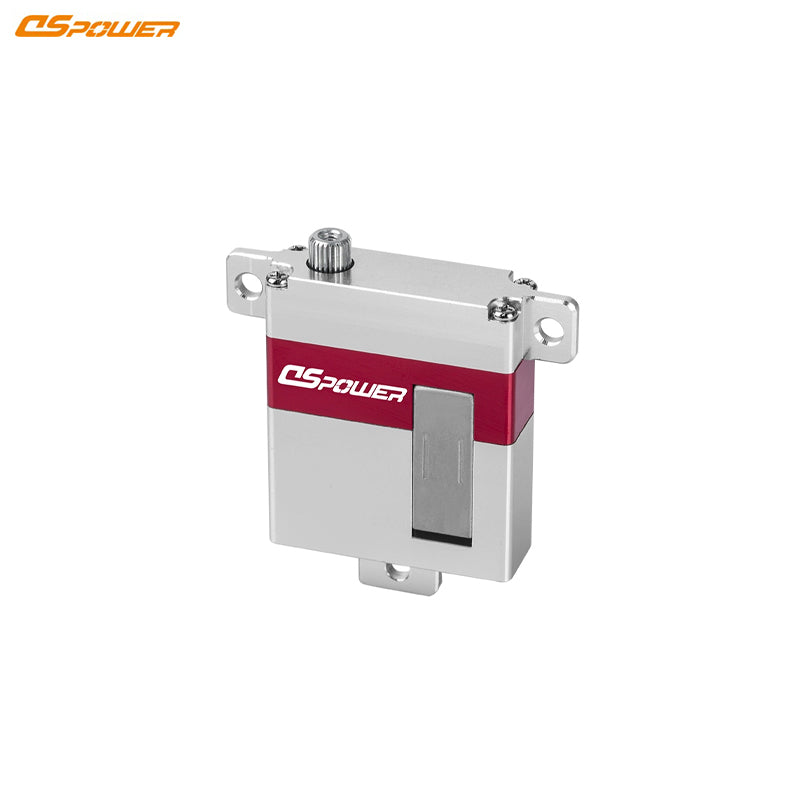

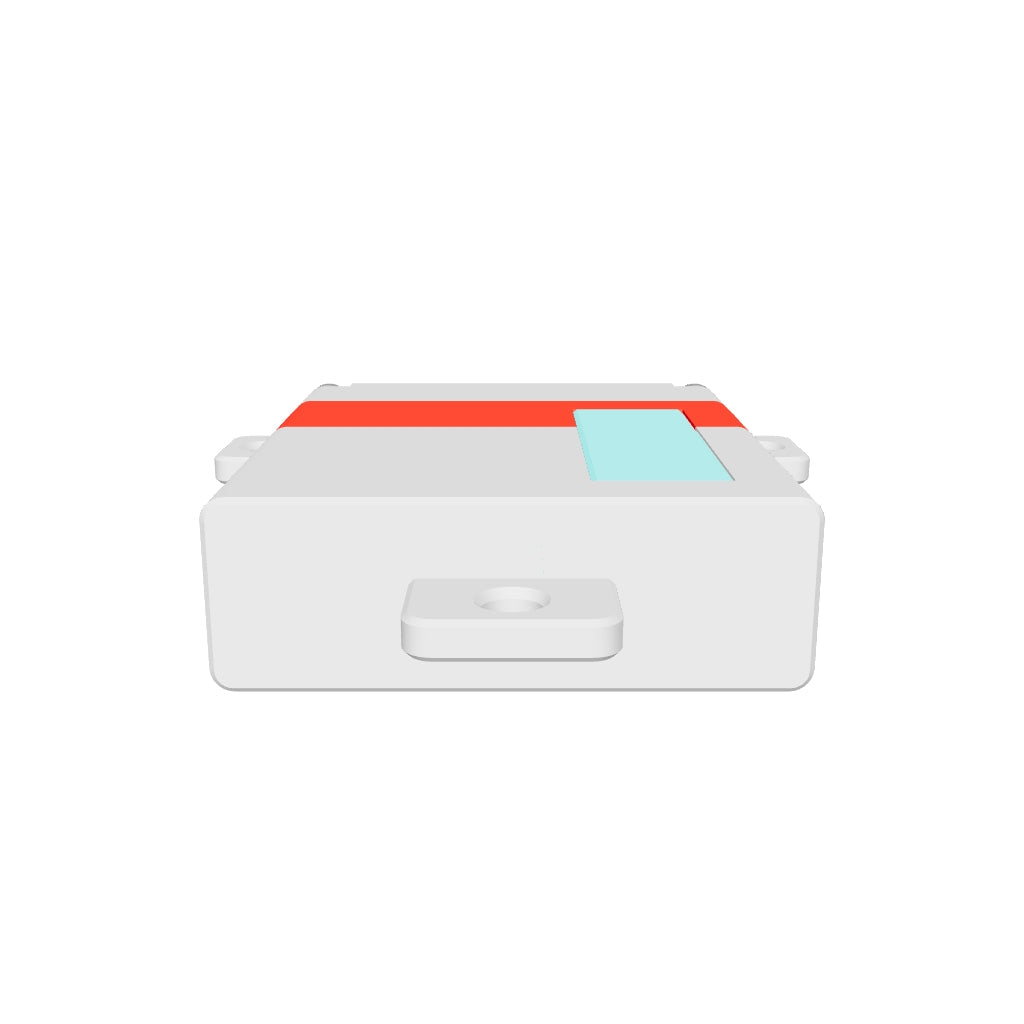

DSpower DS-F002 Servo Motor
Regular price
$60.00
Unit price
DSpower DS-F002 Servo Motor - DS-F002 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0 ~ 8.4V DC |
| No Load Speed | ≤0.14 sec./60° at 7.4V |
| Stall Current | ≤3.2A at 7.4V |
| Stall Torque | ≥8kgf·cm |
| Rated Torque | 1.2kgf·cm at 7.4V |
| Pulse Width Range | 500 ~ 2500μs |
| Operating Travel Angle | 180° ± 10° |
| Mechanical Limit Angle | 360° |
| Weight | 29.1 ± 0.5g |
| Case Material | Aluminium alloy |
| Gear Set Material | Metal |
| Motor Type | Core motor |
DSpower DS-F002 Servo Motor-DRAW.pdf
