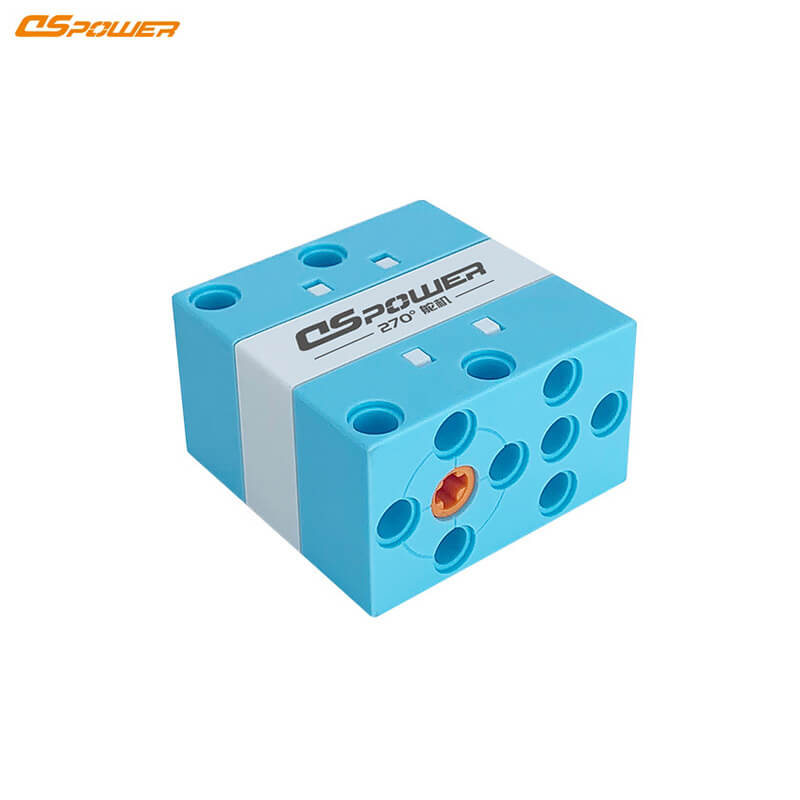

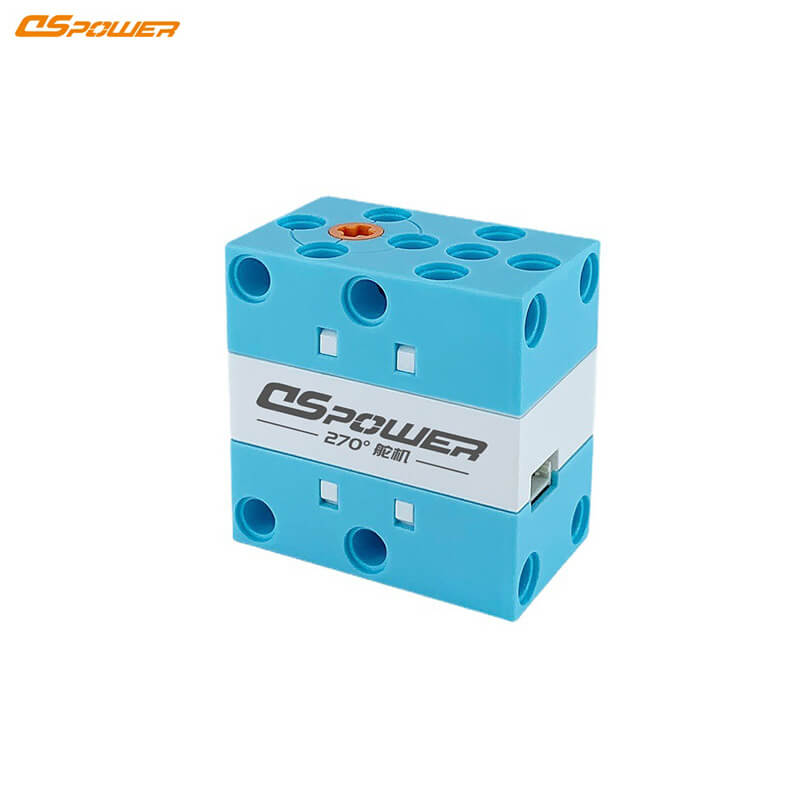

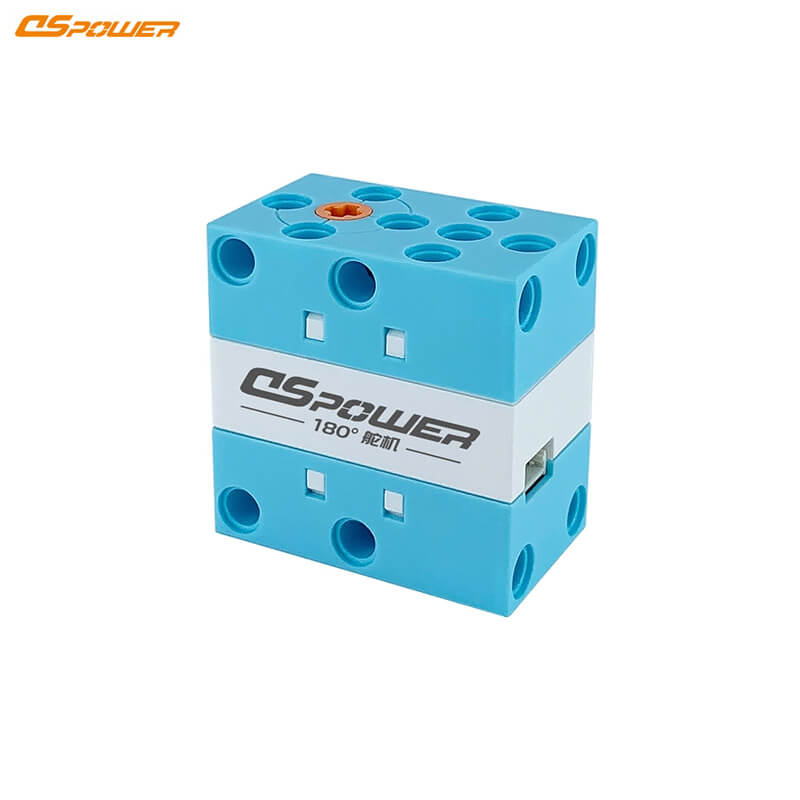

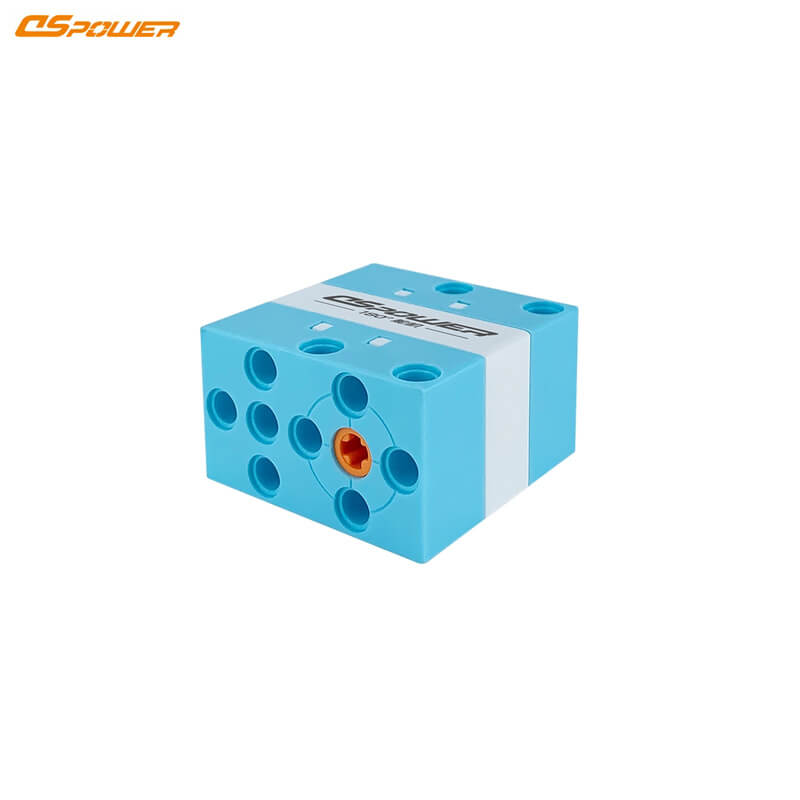

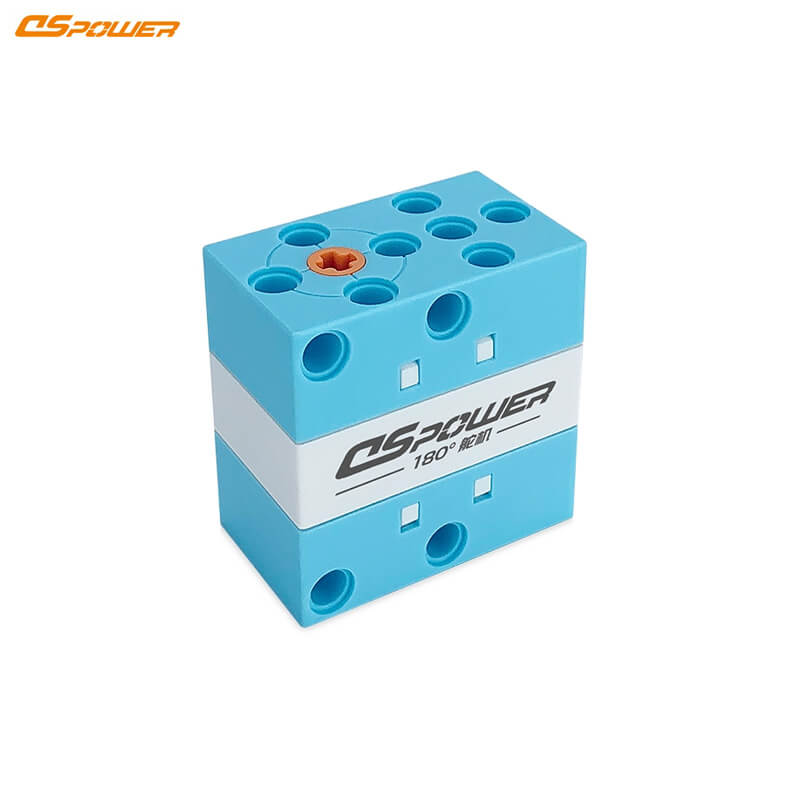

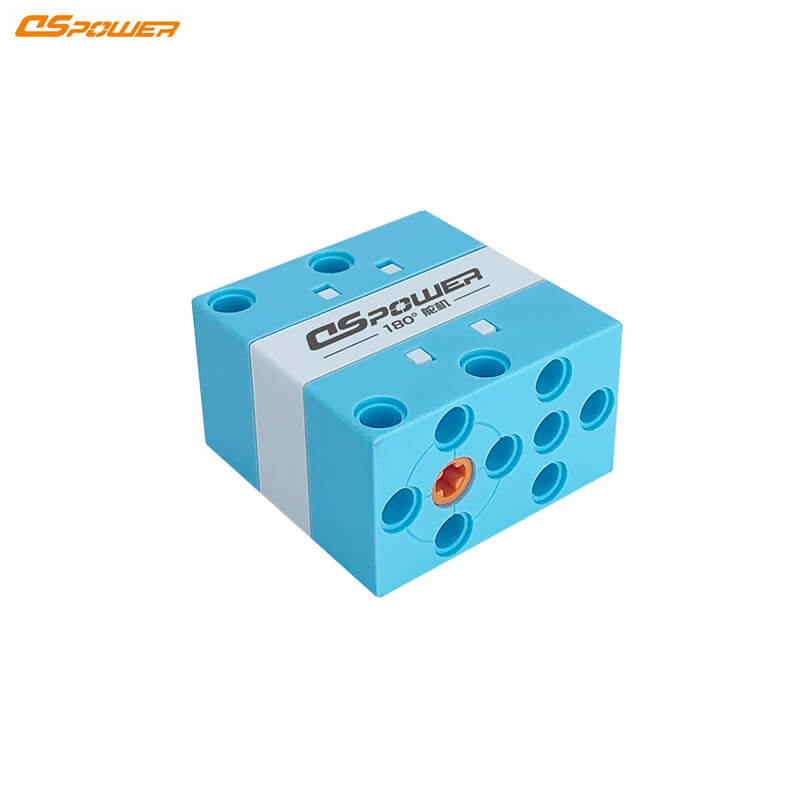

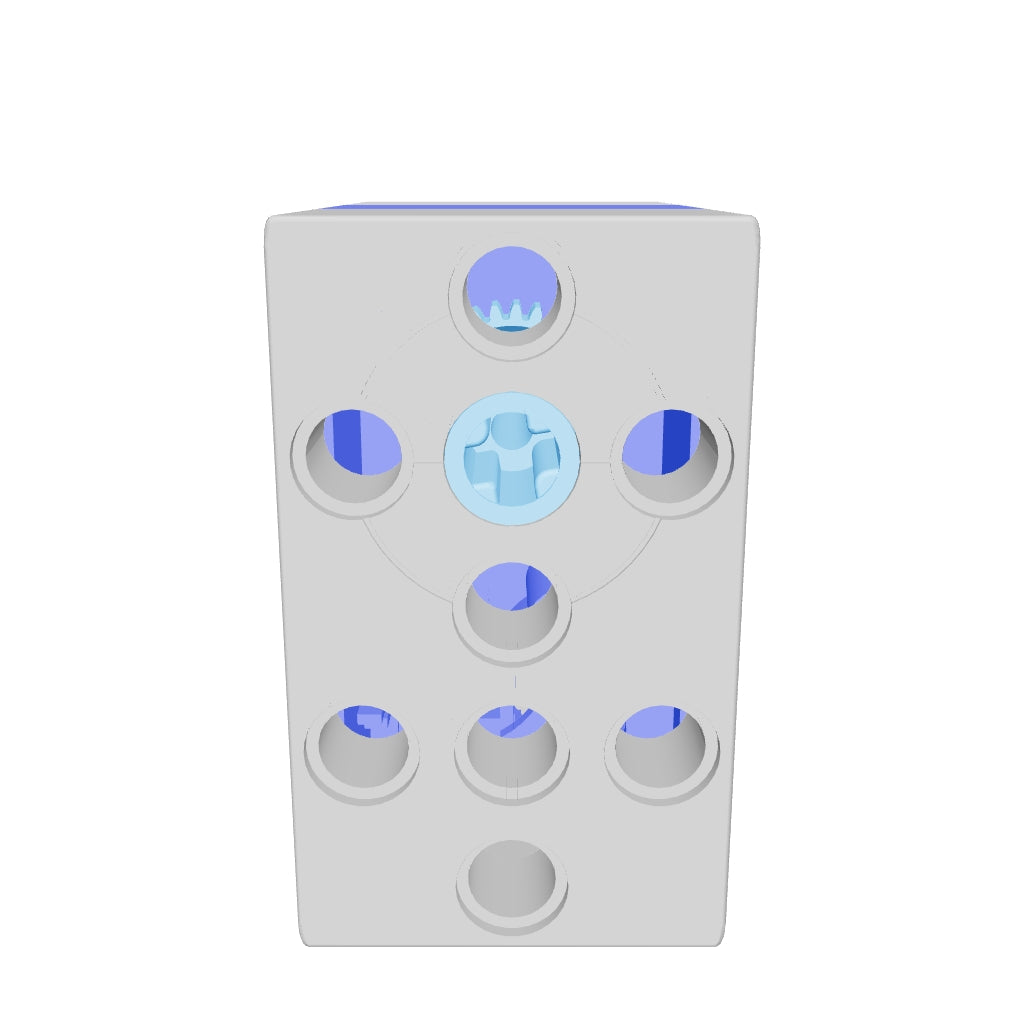

DSpower DS-E001E Servo Motor
Regular price
$25.00
Unit price
DSpower DS-E001E Servo Motor - DS-E001E(180°) is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-E001E Servo Motor
Regular price
$25.00
Unit price
DSpower DS-E001E Servo Motor - DS-E001E(180°) is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0~9.0V DC |
| No Load Speed | ≤0.20 sec/60° at 7.4V |
| No Load Current | ≤150 mA at 7.4V |
| Stall Current | at 7.4V: ≤1.0 A |
| Stall Torque | at 7.4V: ≥1.5 kgf·cm |
| Pulse Width Range | 500~2500μs |
| Operating Travel Angle | 270°±10° |
| Mechanical Limit Angle | 360° |
| Weight | 29.5 ± 0.5g |
| Case Material | ABS |
| Gear Set Material | POM |
| Motor Type | Core Motor |
