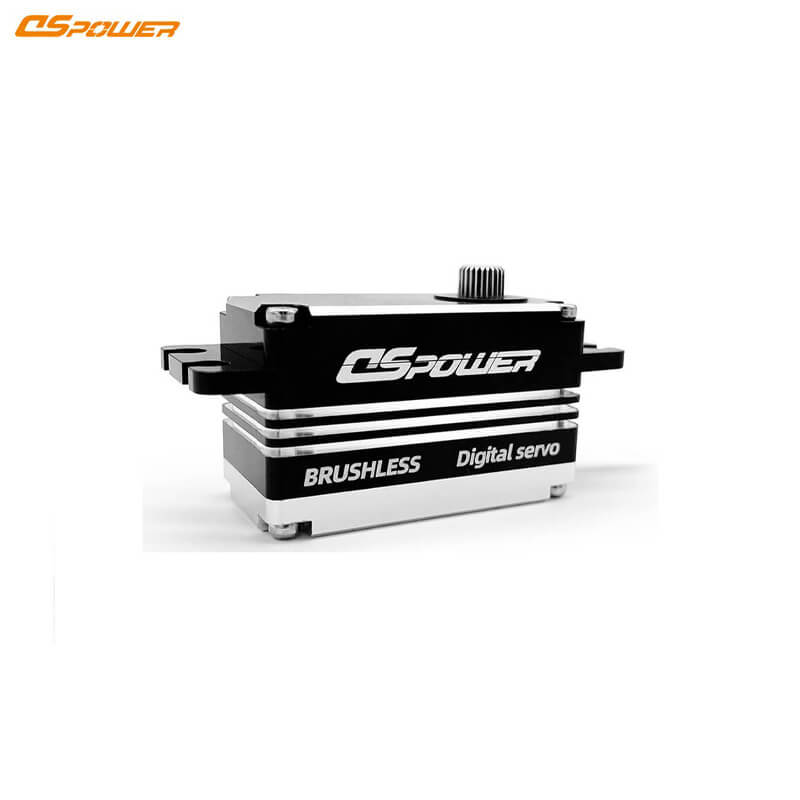

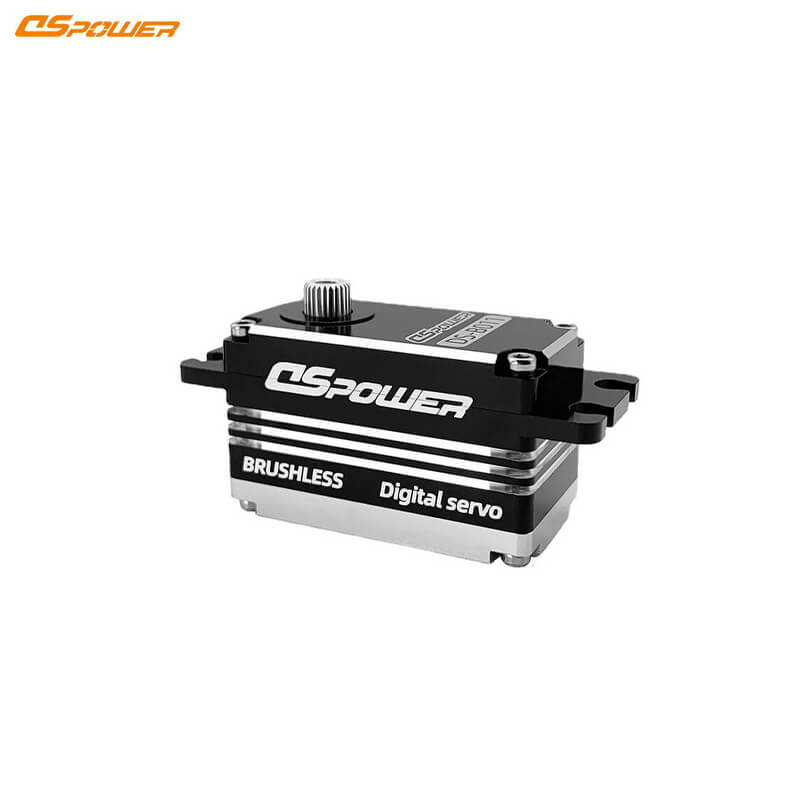

DSpower DS-B011-C Servo Motor

$100.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value
Model DS-B011-C DS-B011
Operating Voltage 6.0~7.4V DC 6.0~7.4V DC
Static Current ≤20 mA ≤25 mA
Stall Current ≤3.3A at 6.0V, ≤4.1A at 7.4V ≤3.2A at 6.0V, ≤4.1A at 7.4V
Max Torque ≥16 kg at 6.0V, ≥22 kg at 7.4V -
Stall Torque - ≥13.5 kg at 6.0V, ≥17kg at 7.4V
Rotating Direction 1000us→2000us Counterclockwise (Forward) CW (2000us→1000us)
No-load Speed ≤0.145 sec/60° at 6.0V, ≤0.115 sec/60° at 7.4V ≤0.08 sec/60° at 6.0V, ≤0.07 sec/60° at 7.4V
Pulse Width Range 500~2500 us 500~2500 us
Operating Travel Angle 90° ±10° (1000~2000 us) 180°
Return Angle Deviation ≤1° ≤1°
Weight 58 ± 0.5g 58g
Communication Interface PWM PWM
Output Shaft 25T/Φ5.9mm 25T/Φ5.9mm

DSpower DS-B011-C Servo Motor-DRAW.pdf
