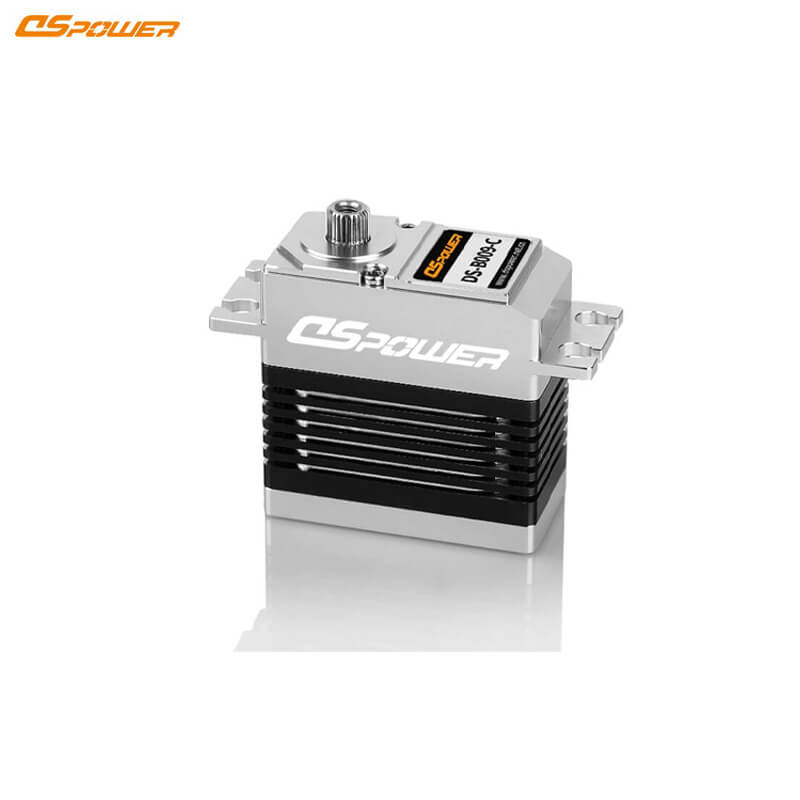

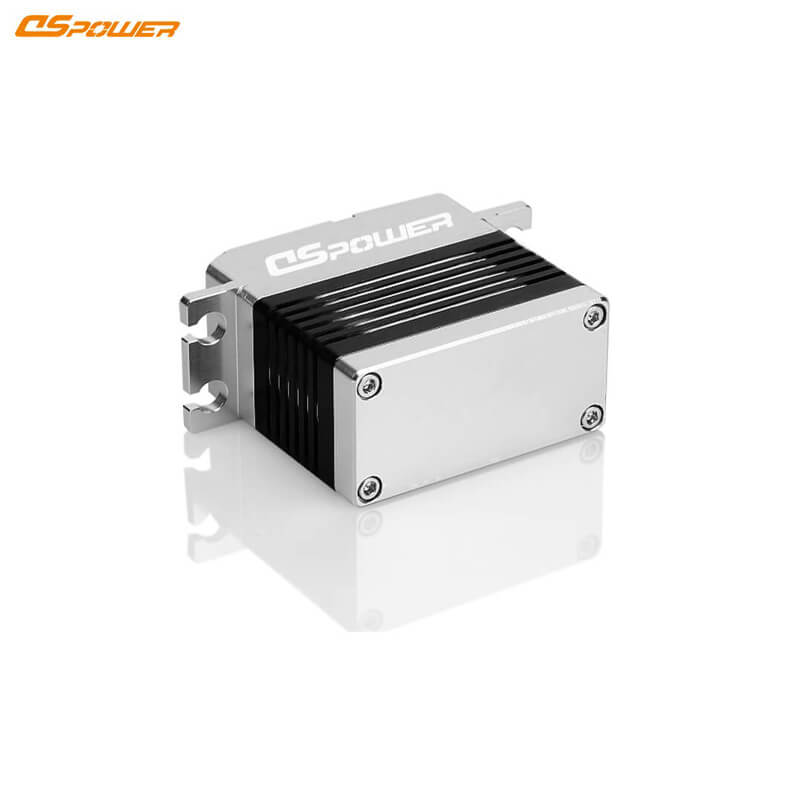

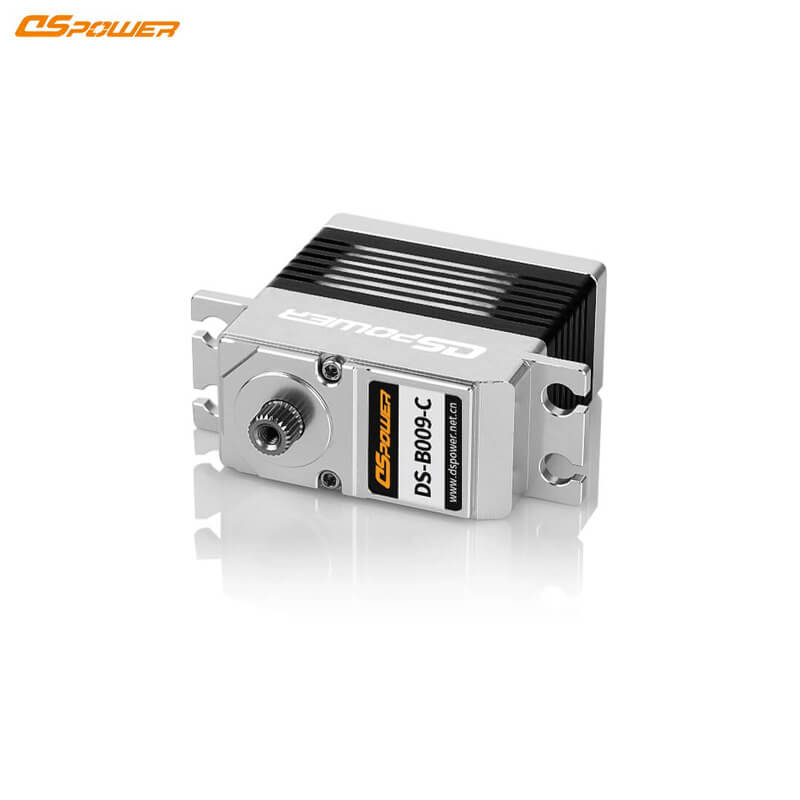

DSpower DS-B009-C Servo Motor
Regular price
$90.00
Unit price
DSpower DS-B009-C Servo Motor - DS-B009-C is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
DSpower DS-B009-C Servo Motor
Regular price
$90.00
Unit price
DSpower DS-B009-C Servo Motor - DS-B009-C is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 6.0~8.4V DC |
| No Load Speed | ≤0.14sec./60° at 6.0V |
| ≤0.12sec./60° at 7.4V | |
| Rated Torque | 6kg at 6.0V |
| 7kg at 7.4V | |
| Stall Current | ≤7A at 6.0V |
| ≤8A at 7.4V | |
| Stall Torque | ≥28.0kgf·cm at 6.0V |
| ≥32.0kgf·cm at 7.4V | |
| Pulse Width Range | 500~2500μs |
| Operating Travel Angle | 180°±10° |
| Mechanical Limit Angle | 210° |
| Weight | 70g |
| Case Material | Aluminium alloy Casing |
| Gear Set Material | Metal Gears |
| Motor Type | Brushless Motor |
