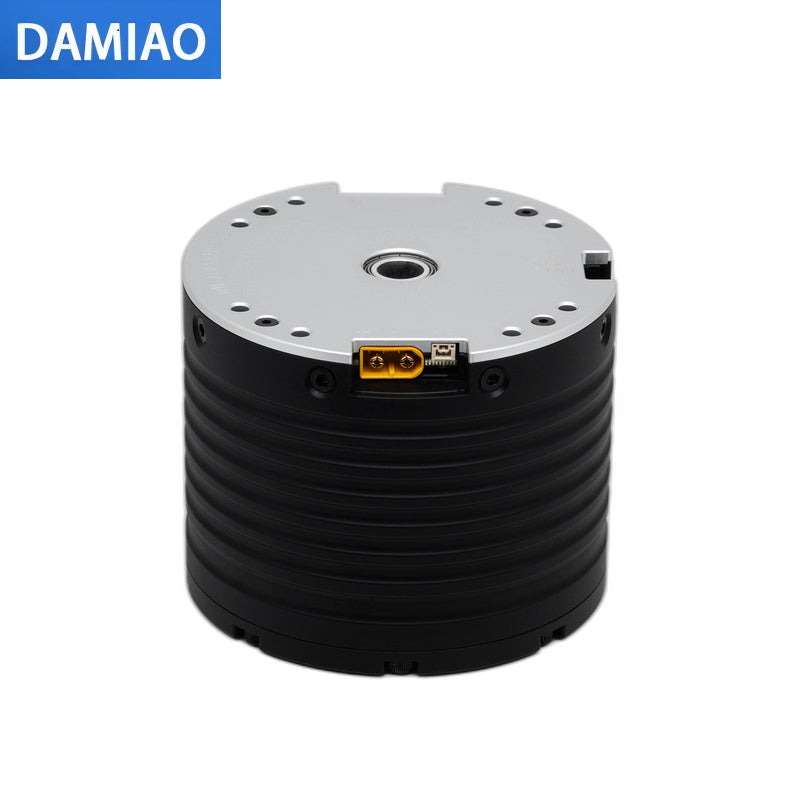

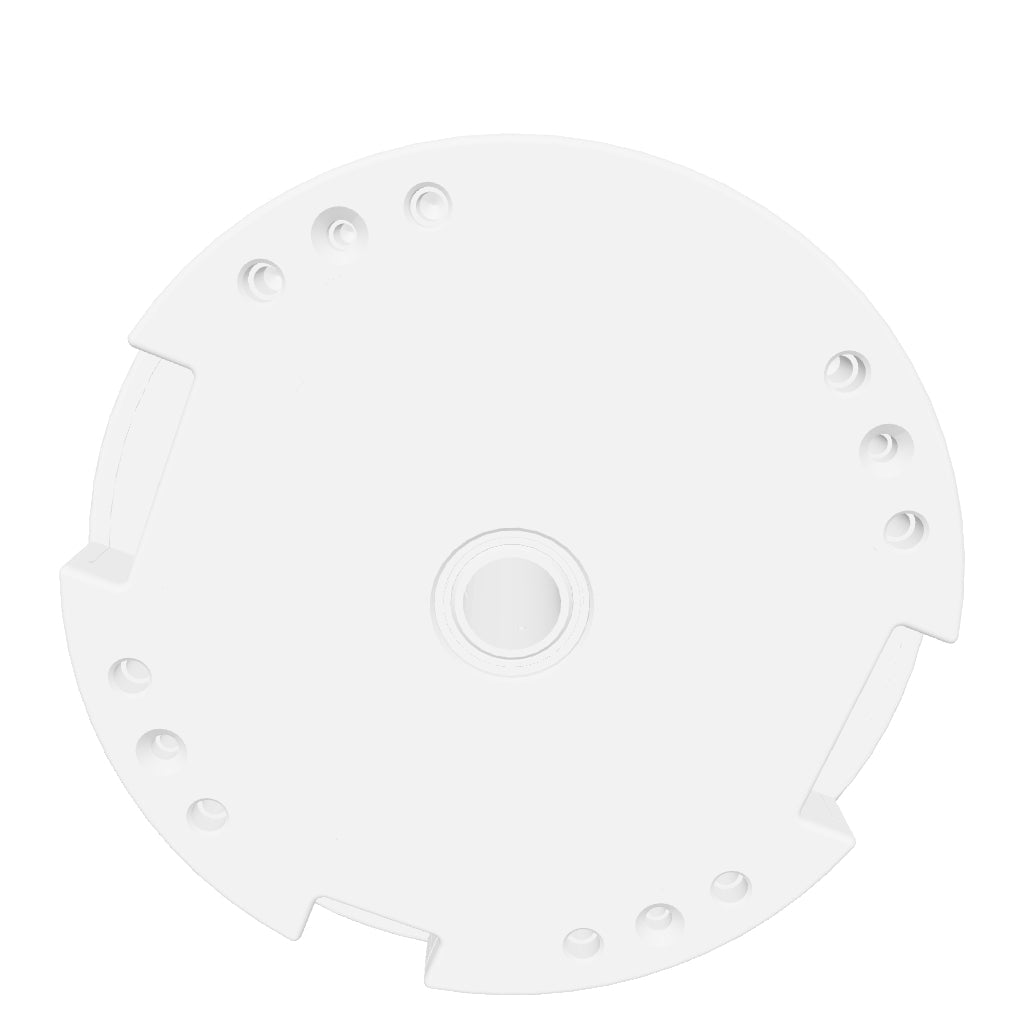

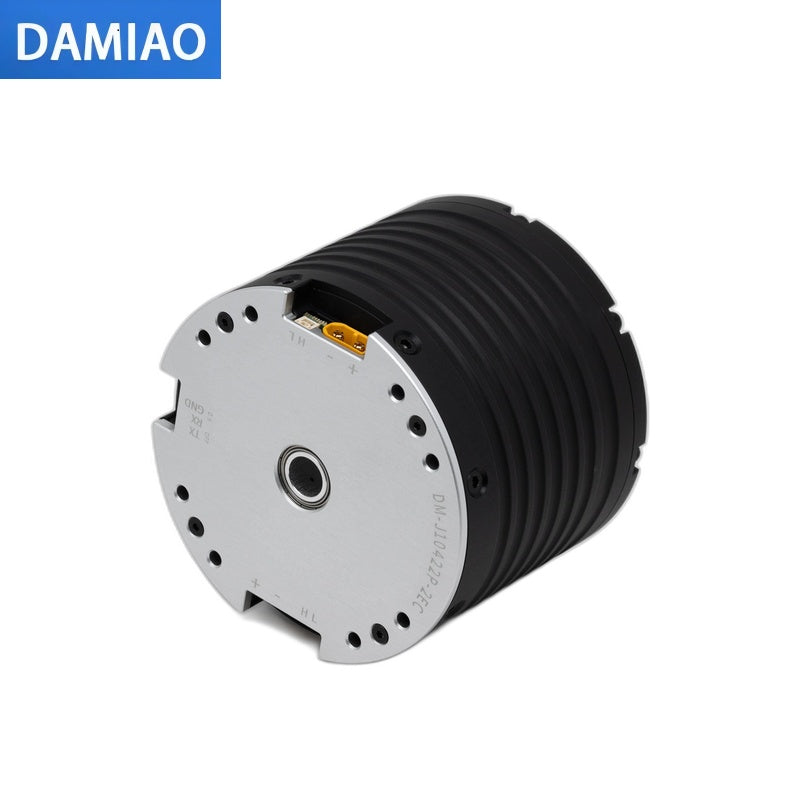

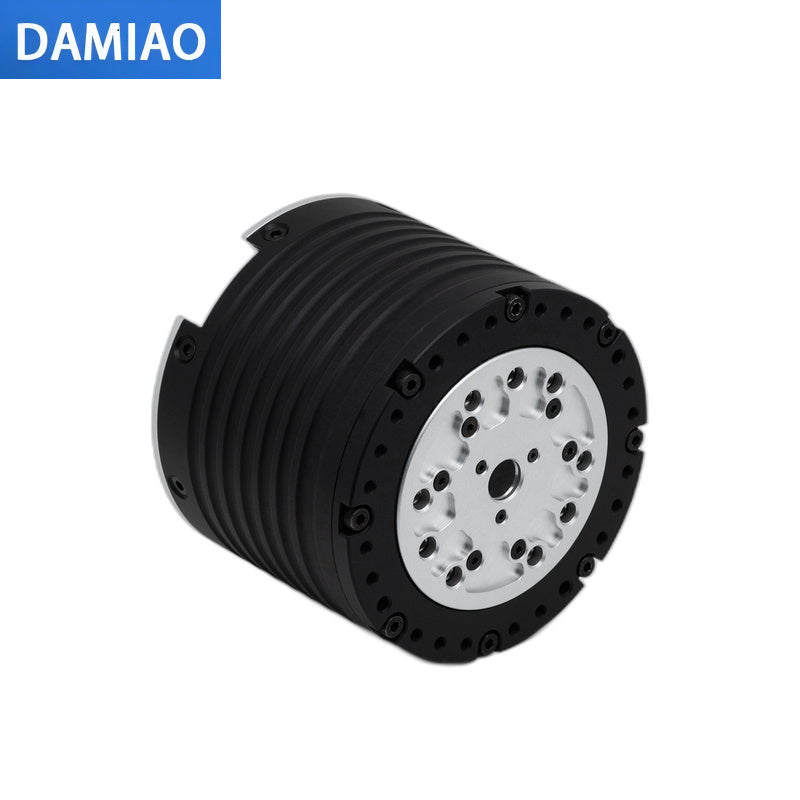

DAMIAO DM-J10422P-2EC Motor

$480.00
Version
Communication Module
Accessory Kit

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information

Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Model
DM-J10422P-2EC
Nominal Voltage 48V
Rated Phase/Source Current 44.5A / 27.5A
Peak Phase/Source Current 165.0A / 48.9A
Rated Torque 100.0N.M
Peak Torque 400.0N.M
Rated Speed 100RPM
Max. No-load Speed 120RPM
Slot Number 36
Pole Pairs 16
Reduction Ratio 1:22
Phase Inductance 38uH (@25°C)
Phase Resistance 81mΩ (@25°C)
Bore Size 12mm
Outer Diameter 110mm
Height 89.9mm
Motor Weight 2700g
Encoder Resolution 17Bit
Encoder Accuracy ±0.03 degrees
Number of Encoders 2
Control Interface CAN@5Mbps (Max)
Tuning Interface UART@921600bps
Control Modes MIT Mode / Velocity Mode / Position Mode / Torque Control Mode
Protection Driver over-temperature protection: Protection temperature is 120°C. The motor will exit "Enable Mode" when over-temperature occurs.

Motor over-temperature protection: Can be set according to usage requirements. It is recommended not to exceed 100°C (setting above 110°C may burn the coil). The motor will exit "Enable Mode" when over-temperature occurs.

Motor over-voltage protection: Can be set according to usage requirements. It is recommended not to exceed 65V. The motor will exit "Enable Mode" when over-voltage occurs.

Communication loss protection: The motor will automatically exit "Enable Mode" if no CAN command is received within the set period.

Motor over-current protection: Can be set according to usage requirements. It is recommended not to exceed 0.98. The motor will exit "Enable Mode" when over-current occurs.

Motor under-voltage protection: If the power supply voltage is lower than the set value, the motor will exit "Enable Mode" (power supply voltage shall not be lower than 20V).
