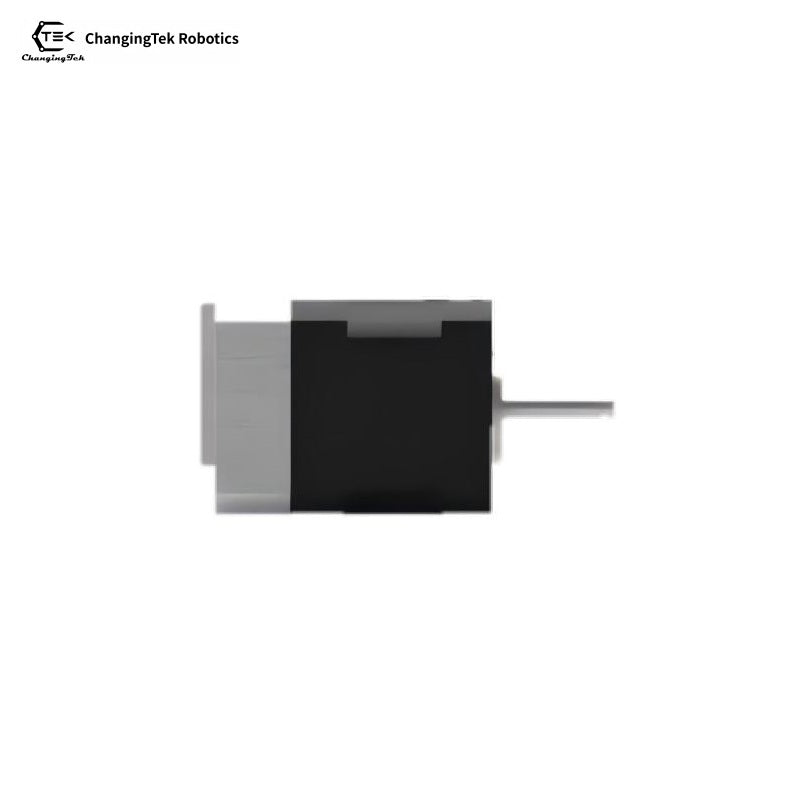

ChangingTek Robotics CTSM42 Servo Motor
Regular priceFrom
$165.00
Unit price
ChangingTek Robotics CTSM42 Servo Motor - CTSM42 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Mechanical & Motion: | |
| Model | CTSM42 |
| Body Length | 39.2 +/- 1 mm |
| Rated Torque | 0.5 N·m |
| Number of Phases | 2-Phase |
| Electrical Specifications: | |
| Input Voltage | 24 V DC |
| Peak Current | 2 A |
| Encoder | Integrated (Included) |
| Control & Logic: | |
| Operating Mode | Position Mode, Trapezoidal Acceleration/Deceleration |
| Control Mode | Command Mode |
| Microstep Resolution | 81 |
| Communication Interfaces | RS485, expandable with I/O, CAN, USART, TCP, RS232 |
| Environmental: | |
| Operating Environment | Temperature: -5 deg C ~ 65 deg C ; Relative Humidity: 10%RH ~ 85%RH |
