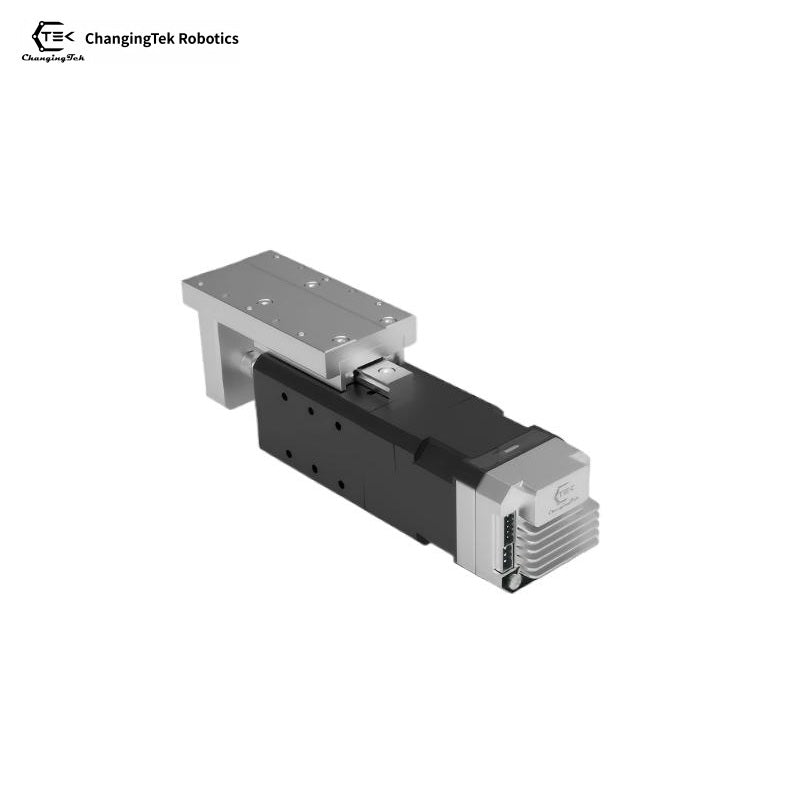

ChangingTek Robotics CTMS-42-N Integrated Actuator
Regular price
$1,250.00
Unit price
ChangingTek Robotics CTMS-42-N Integrated Actuator - CTMS-42-N is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTMS-42-N Integrated Actuator
Regular price
$1,250.00
Unit price
ChangingTek Robotics CTMS-42-N Integrated Actuator - CTMS-42-N is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuation & Motion: | |
| Sliding Table Model | CTMS-42-N |
| Stroke | 30mm (Customizable Stroke) |
| Guiding Mode | Linear Guide Rail |
| Optional Screw Lead | 1mm, 2mm |
| Maximum Speed | 50mm/s (1mm Lead); 100mm/s (2mm Lead) |
| Maximum Thrust | 130N (1mm Lead); 80N (2mm Lead) |
| Mechanical Accuracy: | |
| Screw Lead Accuracy | Rolled +/-0.05mm, Ground +/-0.02mm |
| Force Control Accuracy | +/-0.1N |
| Ball Screw Diameter | 6mm |
| Electrical & Control: | |
| Rated Voltage | 24V |
| Sensor Configuration | Without Sensor |
| Communication Protocol | Modbus RTU / Optional I/O |
| Feedback & Programming: | |
| Feedbackable Parameters | Position, Dimension, Current |
| Programmable Parameters | Position, Speed, Force |
