ChangingTek Robotics

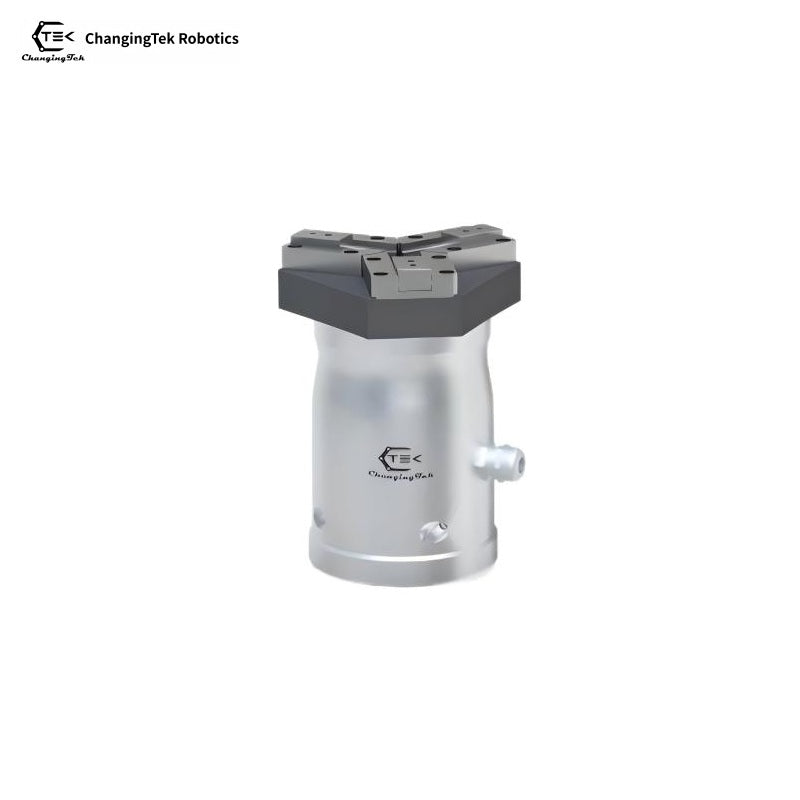

ChangingTek Robotics CTPM3F20 Gripper

$1,880.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Driving Method Servo Drive
Maximum Stroke 20 mm
Maximum Gripping Force 40 N
Maximum Gripping Speed 100 mm/s
Repeat Positioning Accuracy +/-0.02 mm
Control Accuracy (Position/Force) 0.1/0.1 mm/N
Load & Physical:
Allowable Load Torque (N·m) MR: 4.6, MP: 1.9, MY: 2.7
Weight 1.2 kg
Electrical & Control:
Maximum Current 2 A
Operating Voltage 24 V
Communication Protocol Modbus RTU
Environmental:
Recommended Operating Environment (Temperature & Humidity) 0~40 deg C , <=85%RH (Non-condensing)
