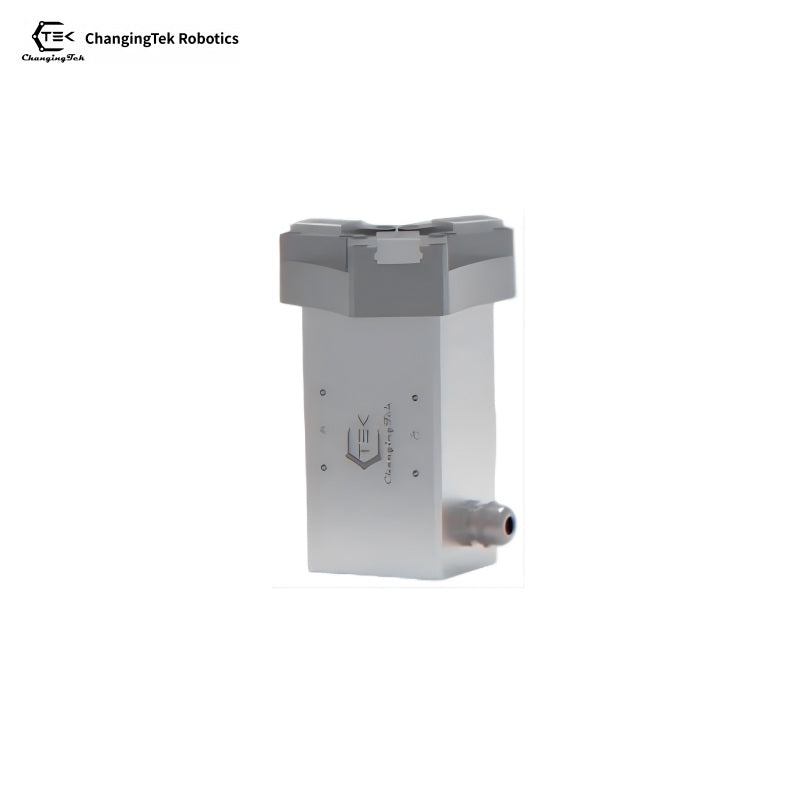

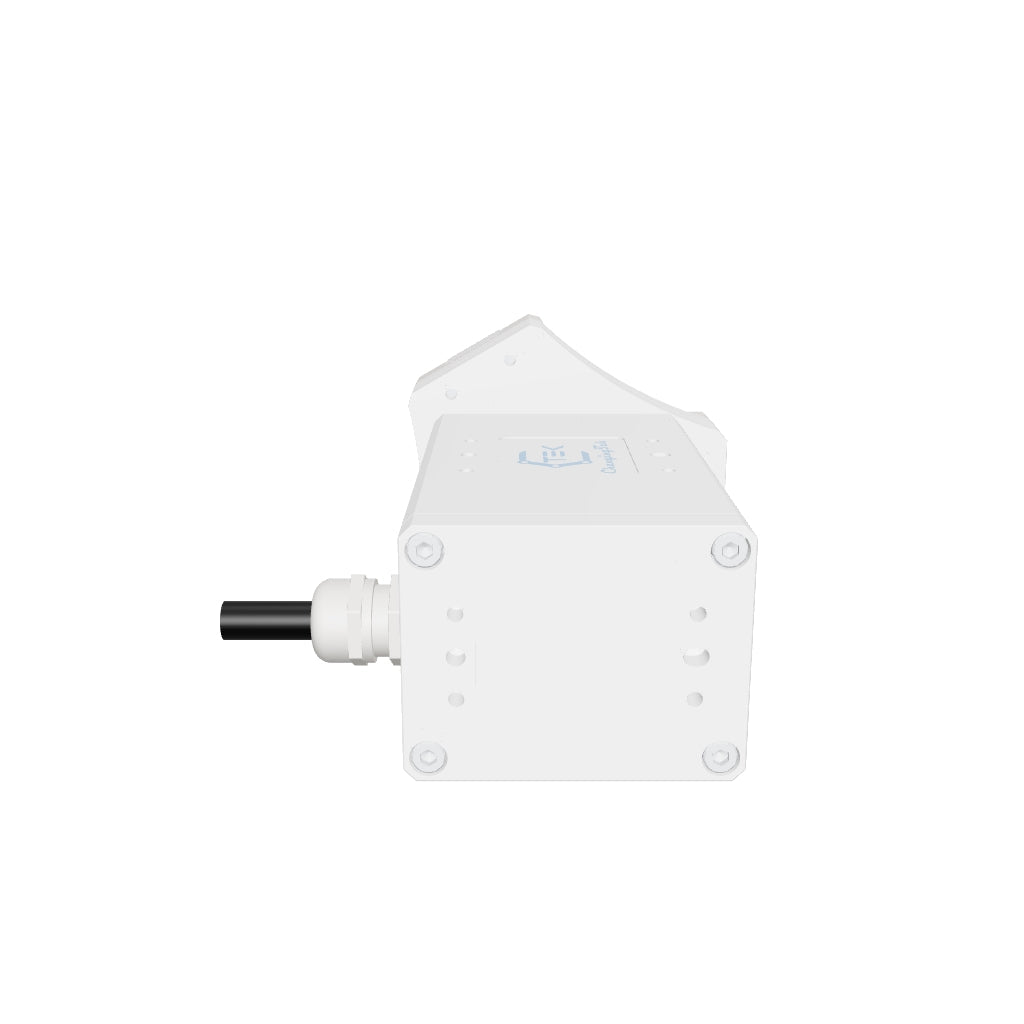

ChangingTek Robotics CTPM3F10 Gripper
Regular price
$980.00
Unit price
ChangingTek Robotics CTPM3F10 Gripper - CTPM3F10 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTPM3F10 Gripper
Regular price
$980.00
Unit price
ChangingTek Robotics CTPM3F10 Gripper - CTPM3F10 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuation & Motion: | |
| Drive Type | Servo Drive |
| Maximum Stroke | 10 mm |
| Maximum Gripping Force | 15 N |
| Maximum Gripping Speed | 40 mm/s |
| Repeat Positioning Accuracy | +/-0.02 mm |
| Load & Physical: | |
| Maximum Recommended Load | 0.5 kg |
| Net Weight | 3.5 kg |
| Electrical & Control: | |
| Peak Current | 2 A |
| Operating Voltage | 24 V DC |
| Programmable Parameters | Position, Speed, Force |
| Feedback Parameters | Position, Dimension, Speed, Force |
| Communication Protocols | Modbus RTU (RS485), I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) |
| Environmental: | |
| Recommended Operating Environment (Temp & Humidity) | 0~40 deg C , <=85%RH (No Condensation) |
