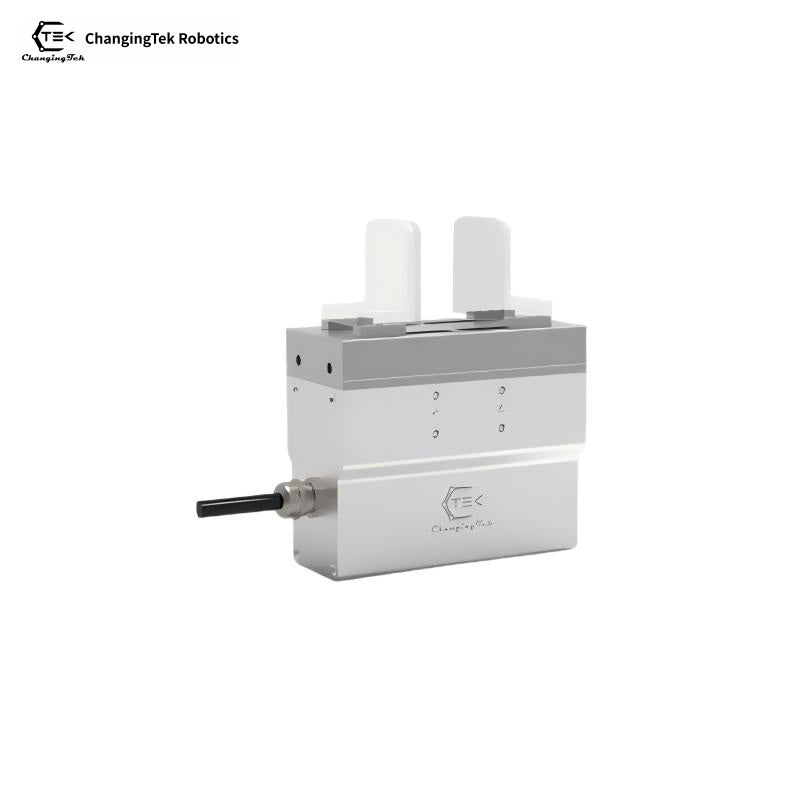

ChangingTek Robotics CTPM2F40 Gripper

$1,280.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Drive Type Servo Drive
Maximum Stroke 40 mm
Maximum Gripping Force 100 N
Maximum Gripping Speed 30 mm/s
Repeat Positioning Accuracy +/-0.02 mm
Load & Physical:
Maximum Recommended Payload 1.5 kg
Allowable Load Torque MR: 15.8 Nm, MP: 9.6 Nm, MY: 9.6 Nm
Weight 1.2 kg
Electrical & Control:
Peak Current 2 A
Operating Voltage 24 V
Programmable Parameters Position, Speed, Force
Feedback Parameters Position, Dimension, Speed, Force
Communication Protocol Modbus RTU (RS485), I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.)
Environmental:
Recommended Operating Environment (Temperature & Humidity) 0~40 deg C, <=85%RH (No Condensation)
