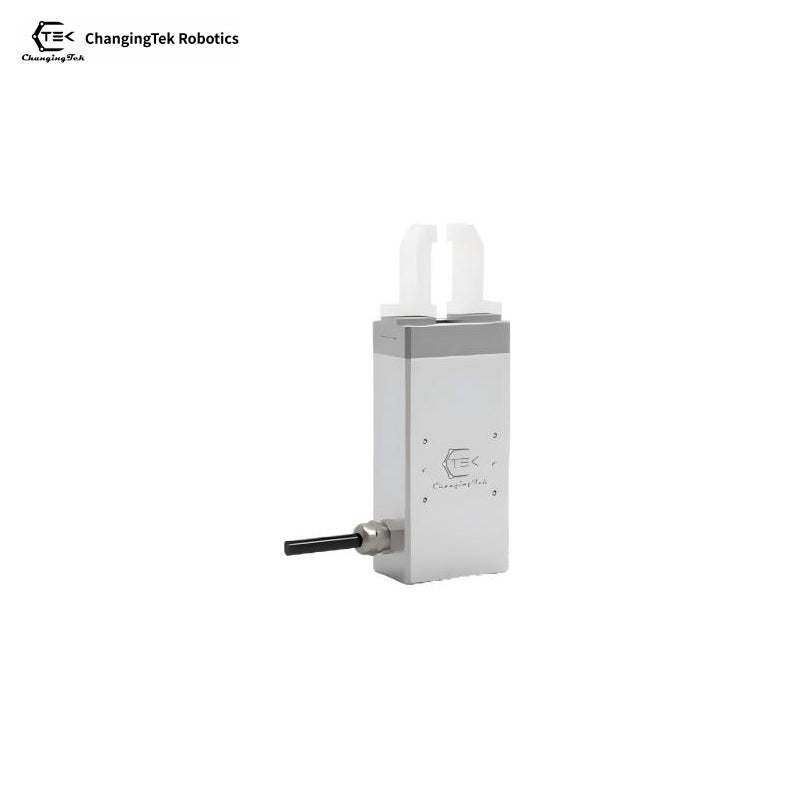

ChangingTek Robotics CTPM2F20 Gripper

$780.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Drive Type Servo Drive
Maximum Stroke 20 mm
Maximum Gripping Force 24 N
Maximum Gripping Speed 50 mm/s
Repeat Positioning Accuracy +/-0.02 mm
Load & Physical:
Maximum Recommended Load 0.5 kg
Self Weight 0.74 kg
Electrical & Control:
Peak Current 2 A
Operating Voltage 24 V
Programmable Parameters Position, Speed, Force
Feedback Parameters Position, Dimension, Speed, Force
Communication Protocol Modbus RTU (RS485), I/O (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.)
Environmental:
Recommended Operating Environment (Temperature & Humidity) 0~40 deg C , <=85%RH (Non-condensing)
