ChangingTek Robotics | SKU:

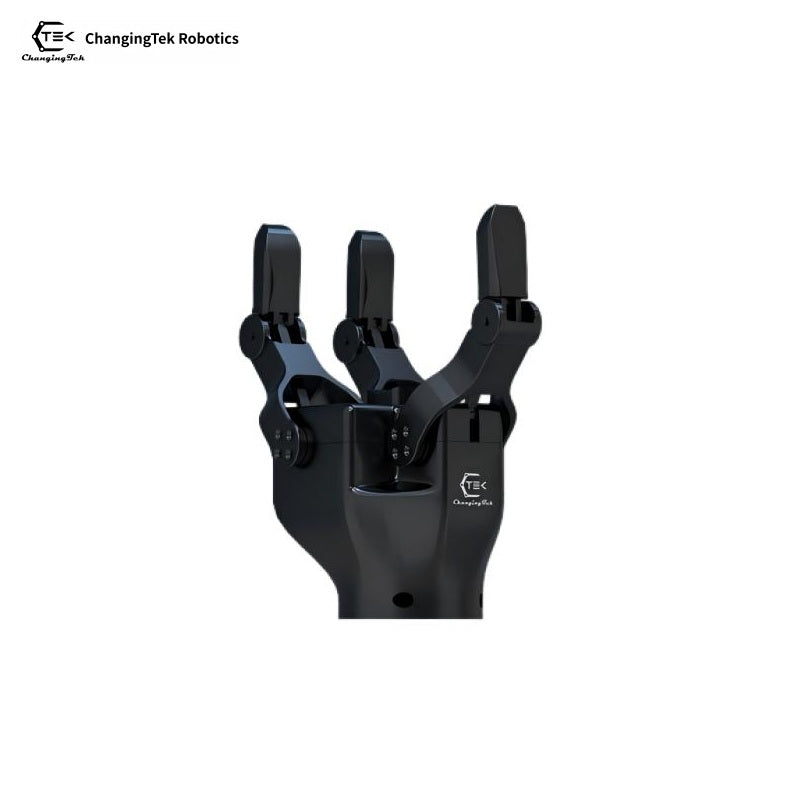

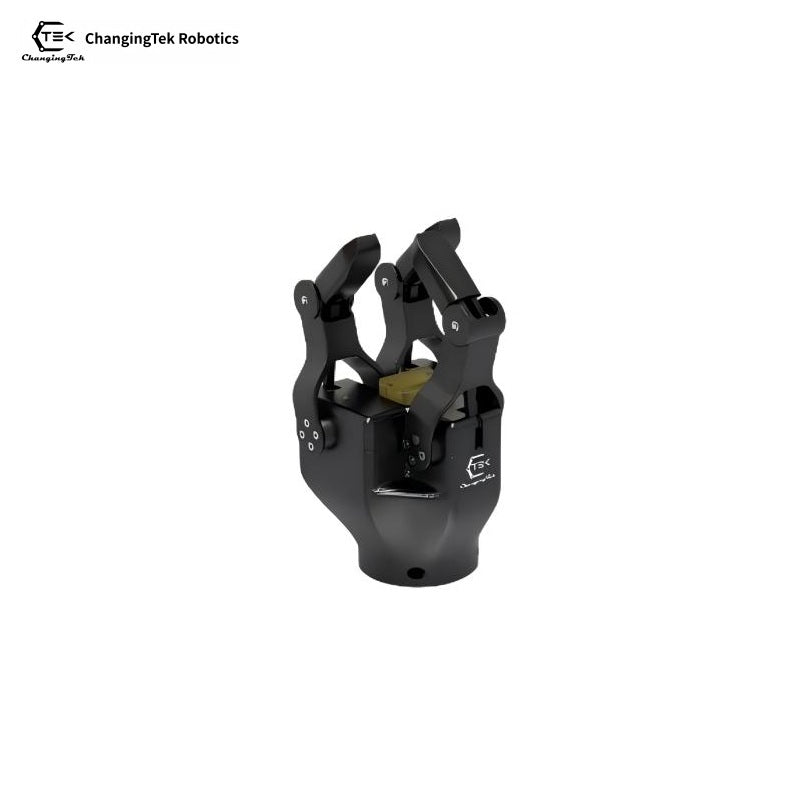

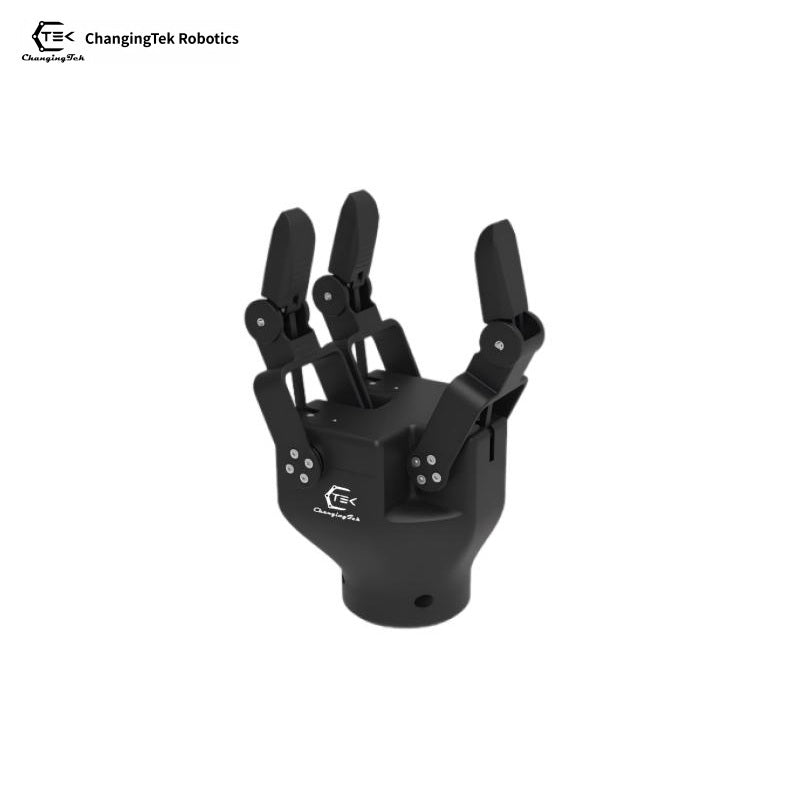

ChangingTek Robotics CTMG3F60 Gripper
Regular price
$7,300.00
Unit price
ChangingTek Robotics CTMG3F60 Gripper - CTMG3F60 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTMG3F60 Gripper
Regular price
$7,300.00
Unit price
ChangingTek Robotics CTMG3F60 Gripper - CTMG3F60 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuation & Motion: | |
| Drive Type | Servo Drive |
| Max. Opening Angle | 100 deg |
| Max. Gripping Force | 50 N |
| Max. Grasping Speed | 100 mm/s |
| Repeat Positioning Accuracy | +/-0.03 mm |
| Load & Physical: | |
| Max. Recommended Payload | 5 kg (Envelope) |
| Self Weight | 1.1 kg |
| Electrical & Control: | |
| Max. Current | 4.5 A |
| Operating Voltage | 24 V |
| Programmable Parameters | Position, Speed, Force |
| Feedback Parameters | Position, Dimension, Speed, Force |
| Communication Protocol | Modbus RTU (RS485), IO (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) |
| Environmental: | |
| Recommended Operating Environment (Temp & Humidity) | 0~40 deg C , <=85%RH (Non-condensing) |
