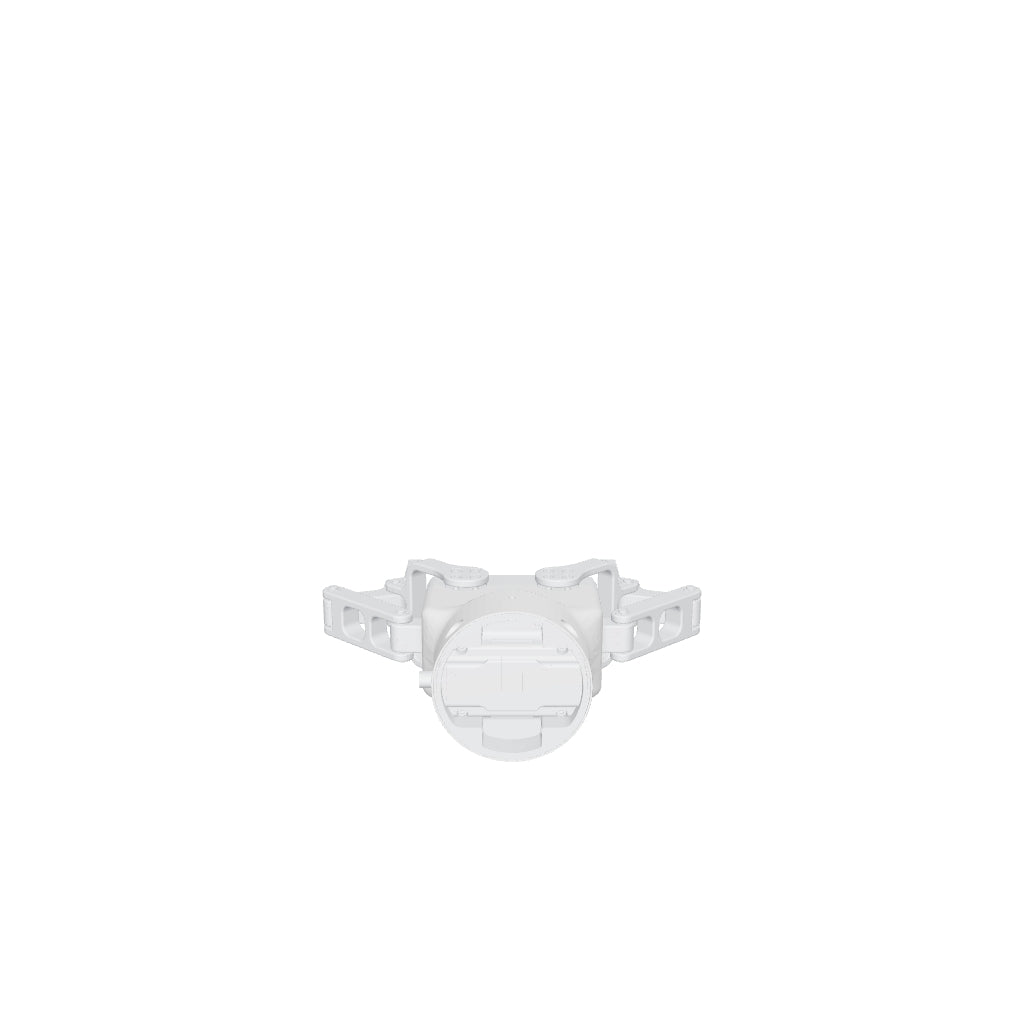

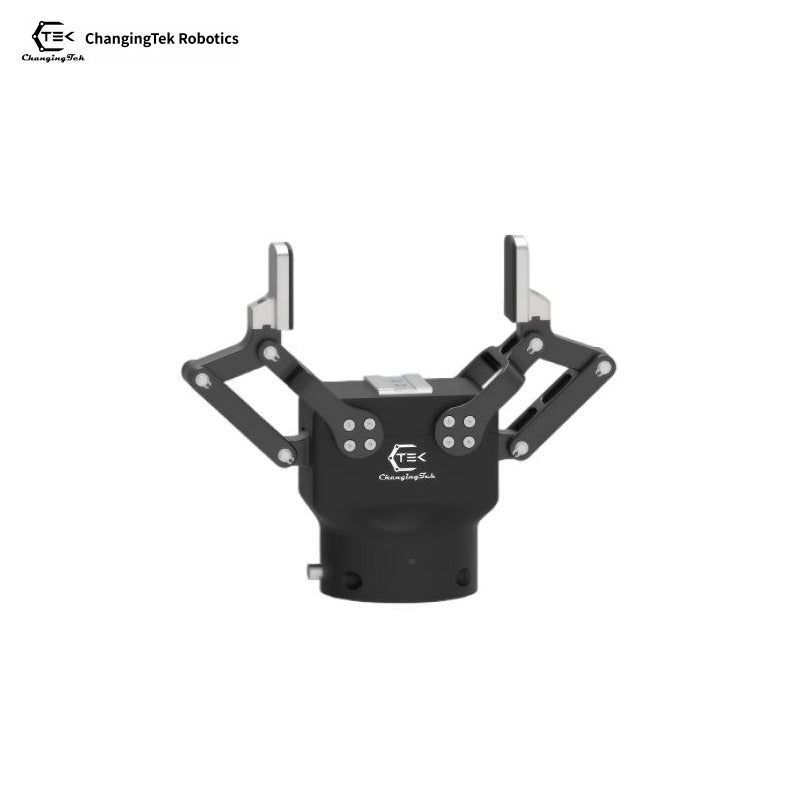

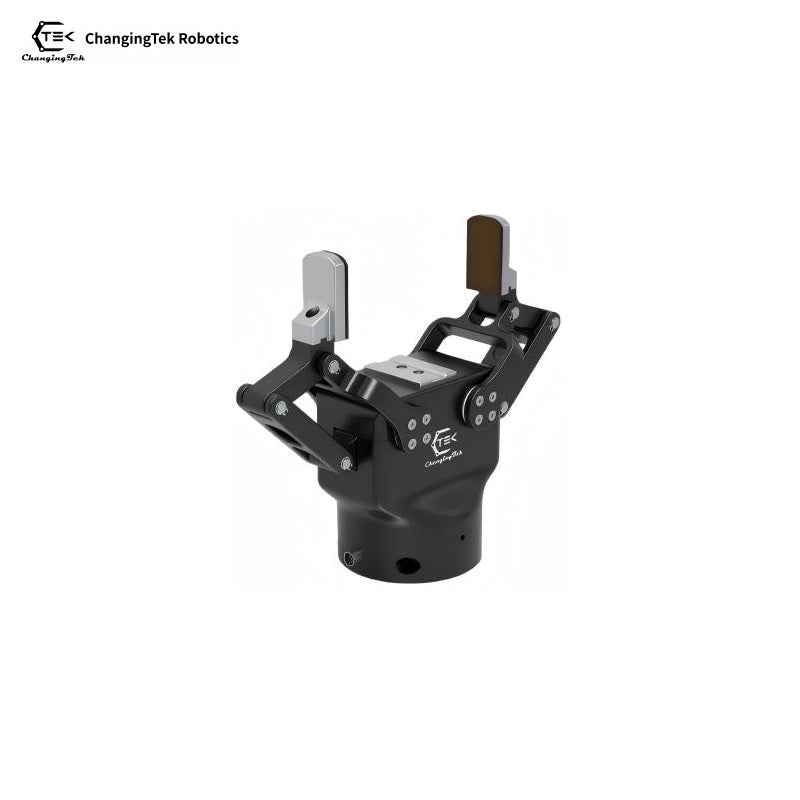

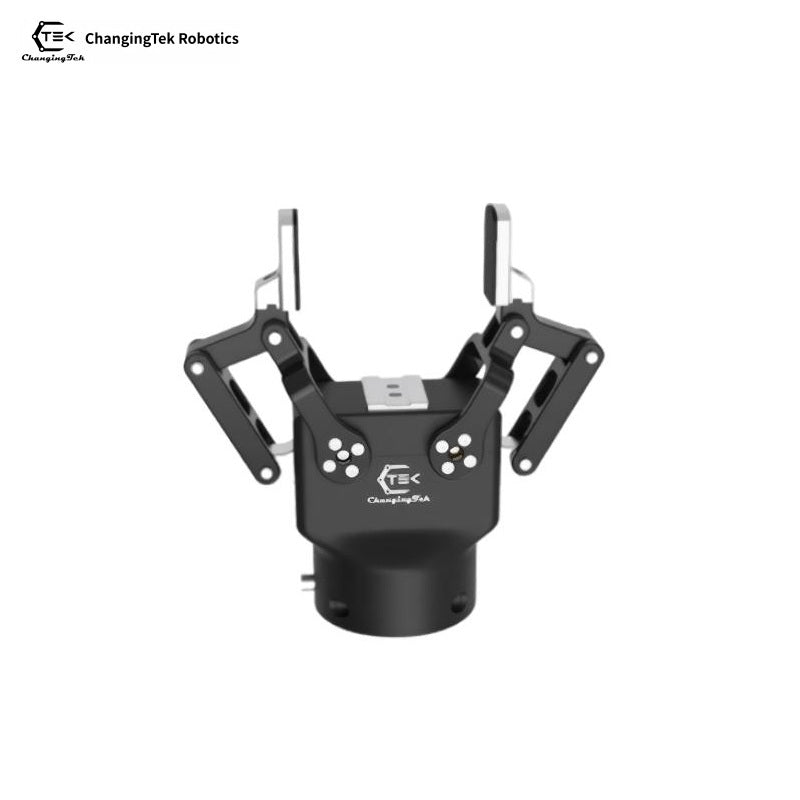

ChangingTek Robotics CTM2F110 Gripper
Regular price
$4,300.00
Unit price
ChangingTek Robotics CTM2F110 Gripper - CTM2F110 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
ChangingTek Robotics CTM2F110 Gripper
Regular price
$4,300.00
Unit price
ChangingTek Robotics CTM2F110 Gripper - CTM2F110 is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Value |
|---|---|
| Actuation & Motion: | |
| Drive Mode | Servo Drive |
| Maximum Stroke | 106 mm |
| Maximum Gripping Force | 50 N |
| Maximum Gripping Speed | 150 mm/s |
| Repeat Positioning Accuracy | +/-0.03 mm |
| Control Accuracy (Position / Force) | 0.1 / 0.08 mm/N |
| Load & Physical: | |
| Maximum Recommended Payload | 3 kg |
| Mass (Self Weight) | 0.75 kg |
| Electrical & Control: | |
| Maximum Current | 3 A |
| Operating Voltage | 24 V |
| Programmable Parameters | Position, Speed, Force |
| Feedback Parameters | Position, Dimension, Torque |
| Communication Protocols | Modbus RTU (RS485), IO (expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.) |
| Environmental: | |
| Recommended Operating Environment (Temperature & Humidity) | 0 ~ 40 deg C, +/- 85% RH (Non-condensing) |
