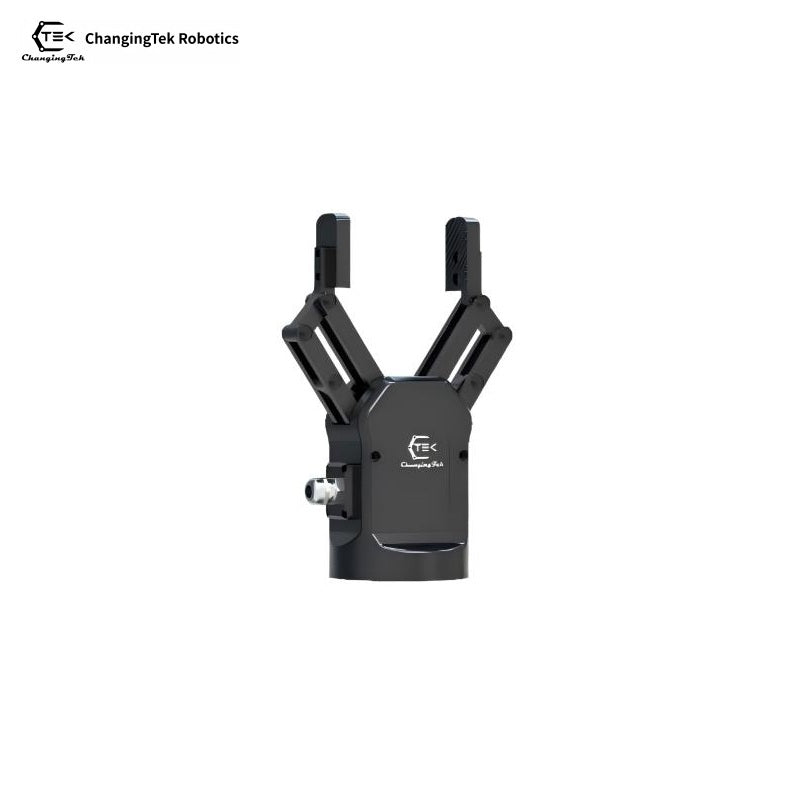

ChangingTek Robotics CTAG2F90-D Gripper

$1,230.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Drive Method Servo  Drive
Maximum Stroke 90 mm
Maximum Gripping Force 25 N
Maximum Gripping Speed 100 mm/s | 250 mm/s**
Repeat Positioning Accuracy +/-0.03 mm
Electrical & Control:
Maximum Current 1 A
Operating Voltage 24 V
Feedback Parameters Position, Speed, Force
Communication Protocol Modbus RTU + IO (Expandable to CAN, TCP/IP, EtherCAT, Profinet, etc.)
Load & Physical:
Weight 0.8 kg
Environmental:
Recommended Operating Environment (Temperature & Humidity) 0~40 deg C , <=85% RH (No Condensation)
