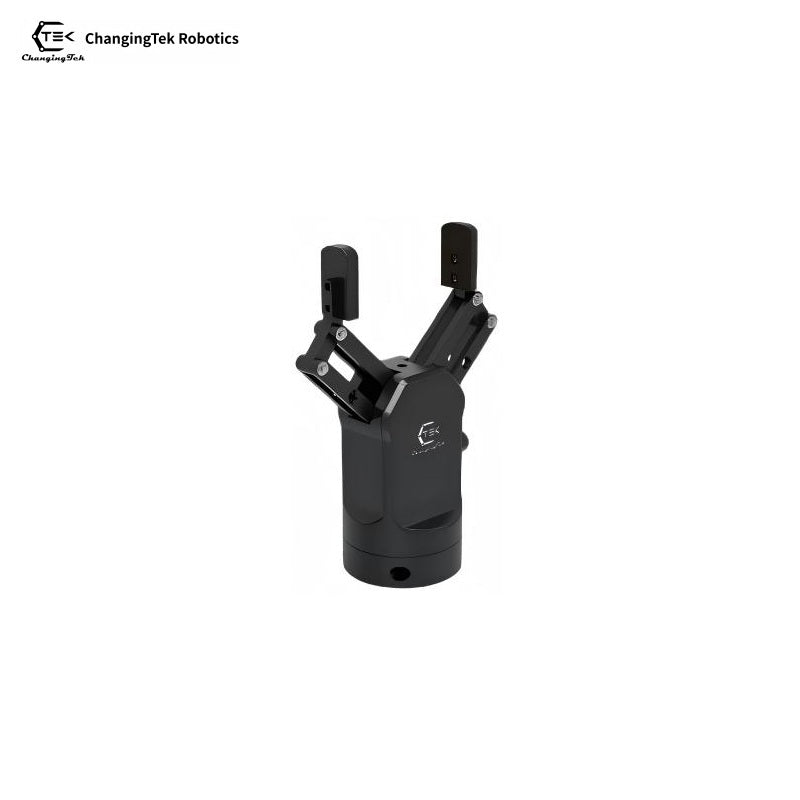

ChangingTek Robotics CTAG2F90-C Gripper

$1,230.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value
Actuation & Motion:
Drive Mode Servo Drive
Total Stroke 90 mm
Max. Gripping Force 25 N
Max. Gripping Speed 100 mm/s
Repeat Positioning Accuracy +/-0.03 mm
Load & Physical:
Max. Recommended Load 1.2 kg
Weight (Self-weight) 0.7 kg
Electrical & Control:
Peak Current 1.2 A
Operating Voltage 24 V
Programmable Parameters Position, Speed, Force
Feedback Parameters Position, Dimension, Speed, Force
Communication Protocols Modbus RTU (RS485), I/O, CAN (TCP/IP, EtherCAT, Profinet, etc. expandable)
Environmental:
Recommended Operating Environment 0~40 deg C , <=85% RH (No condensation)
