BrainCo | SKU:

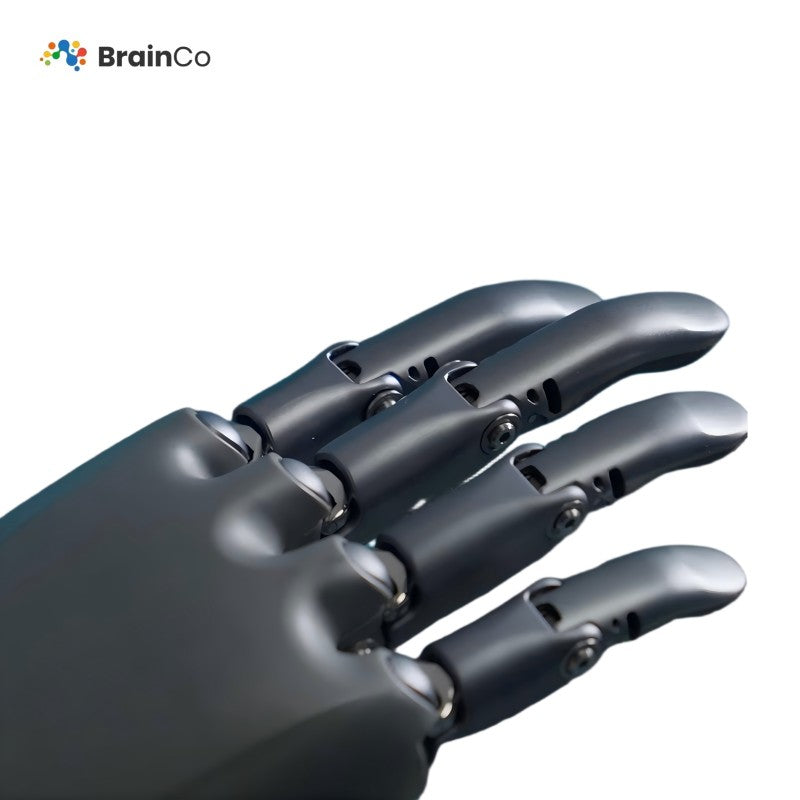

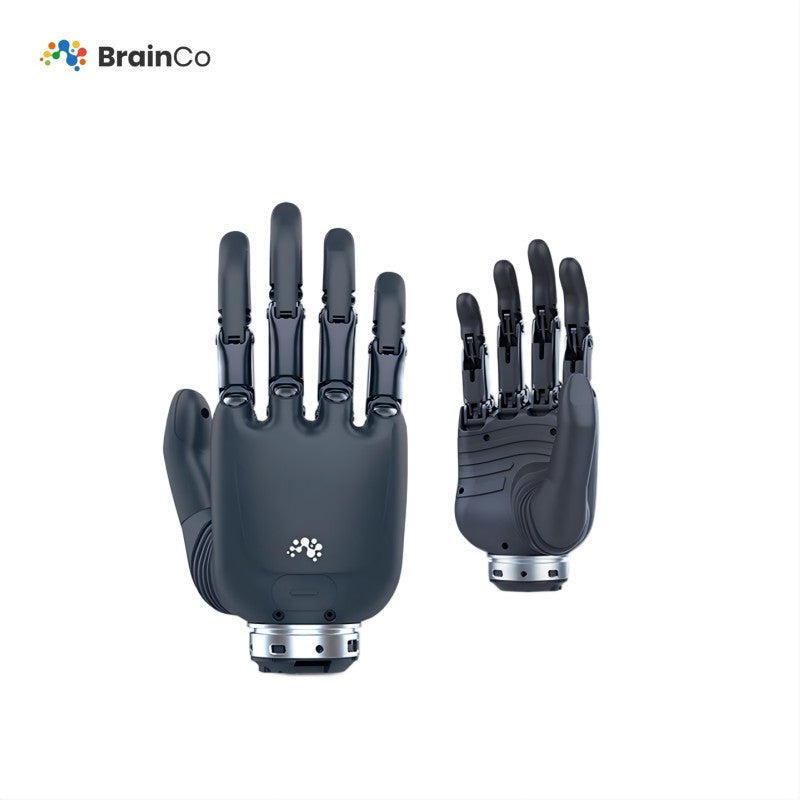

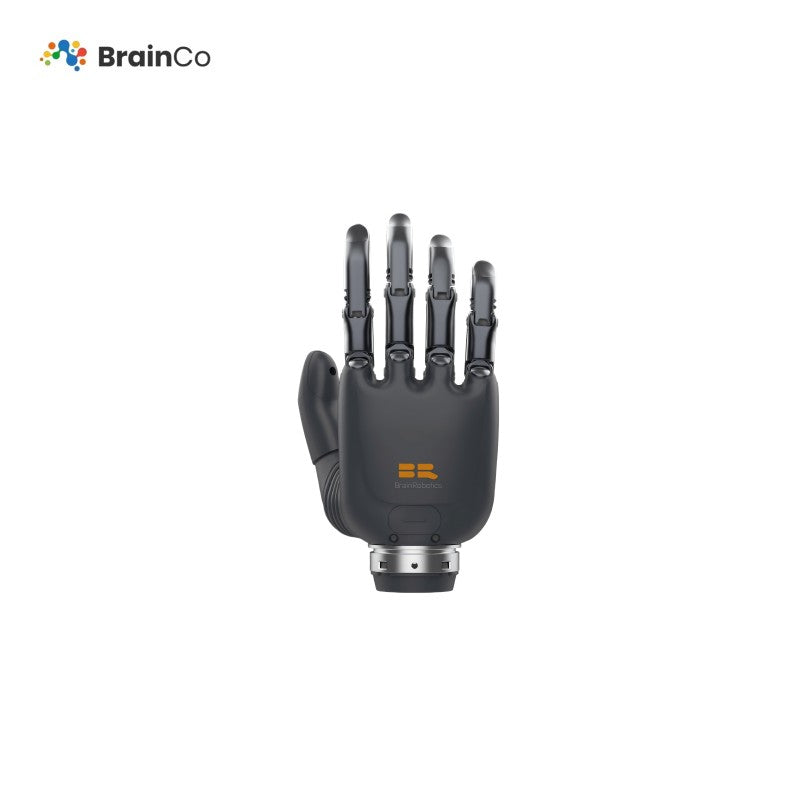

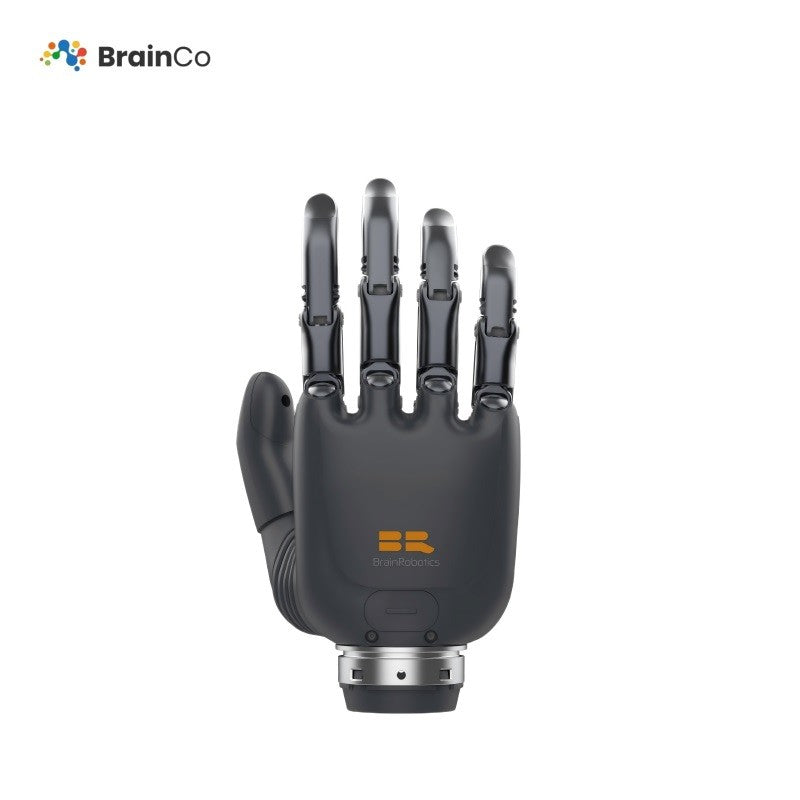

BrainCo Bionic Dexterous Hand Revo 1
Regular price
$9,500.00
Unit price
BrainCo Bionic Dexterous Hand Revo 1 - Revo 1 (Basic) / Left is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
BrainCo Bionic Dexterous Hand Revo 1
Regular priceFrom
$9,500.00
Unit price
BrainCo Bionic Dexterous Hand Revo 1 - Revo 1 (Basic) / Left is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Parameter | Basic | Touch |
|---|---|---|
| Size | ||
| Weight | 540g ±5g |
540g ±5g |
| Length | 183mm | 183mm |
| Width | 100mm | 100mm |
| Operating Specifications | ||
| Voltage | 9.5 ~ 28V | 9.5 ~ 28V |
| Maximum Current | 3A | 3A |
| Maximum opening distance (between index finger and thumb） | 113mm | 113mm |
| Maximum Finger Pinch Force | 30N | 30N |
| Power Grasp Force | 50N | 50N |
| Opening/Closing Time | 0.8s | 0.8s |
| Manipulation Accuracy |
0.1mm | 0.1mm |

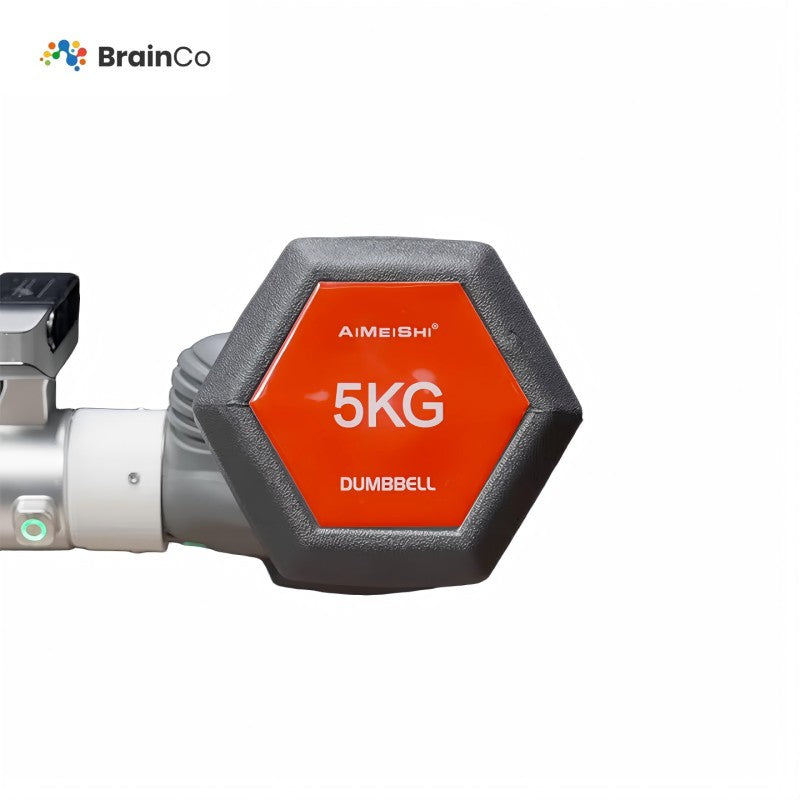

| Maximum Single Finger Load |
8kg
|
8kg
|
| Maximum Single Hand Load | 30kg | 30kg |
| Hardware Configuration | ||
| Standard Port | RS485，CAN | RS485，CAN |
| Sensor Configuration | Position Sensor, Current Sensor | Position Sensor, Current Sensor |
| Materials | Aerospace-grade Aluminum Alloy & Food-grade Plastic | Aerospace-grade Aluminum Alloy & Food-grade Plastic |
| Degrees of Freedom（DoFs） | 10-DOF Bionic Joint | 10-DOF Bionic Joint |
| Active Joints | 6 High-Precision Micro Motors | 6 High-Precision Micro Motors |
| Intelligent Control | Intelligent Movement Control, Anti-blocking Control, Anti-fall and Shake Protection | Intelligent Movement Control, Anti-blocking Control, Anti-fall and Shake Protection |
| Tactile Sensor | ||
| Multi-Modal Fingertip Tactile Perception | / | Pressure, Friction, Force Direction, Proximity, Surface Material |
| Force Range (Configurable) | / | 0-5N/0-15N/0-25N |
| Force Resolution | / | 0.1N（Max 0.01N at Highly Sensitive Mode） |
| Measurement Accuracy | / | 5%FS |
| Overload Threshold | / | ≥50N |
| Proximity Distance Sensing Range | / | 0–1 cm (Tested with human hand) |
| Manipulation Accuracy | / | 0.01mm |
| Sampling Frequency | / | ≥50Hz |
