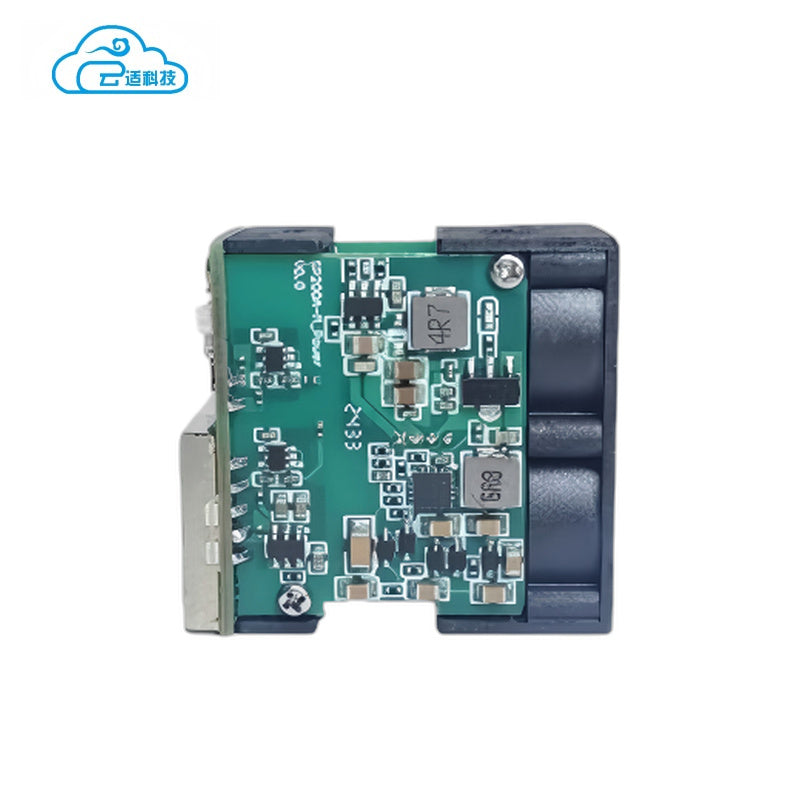

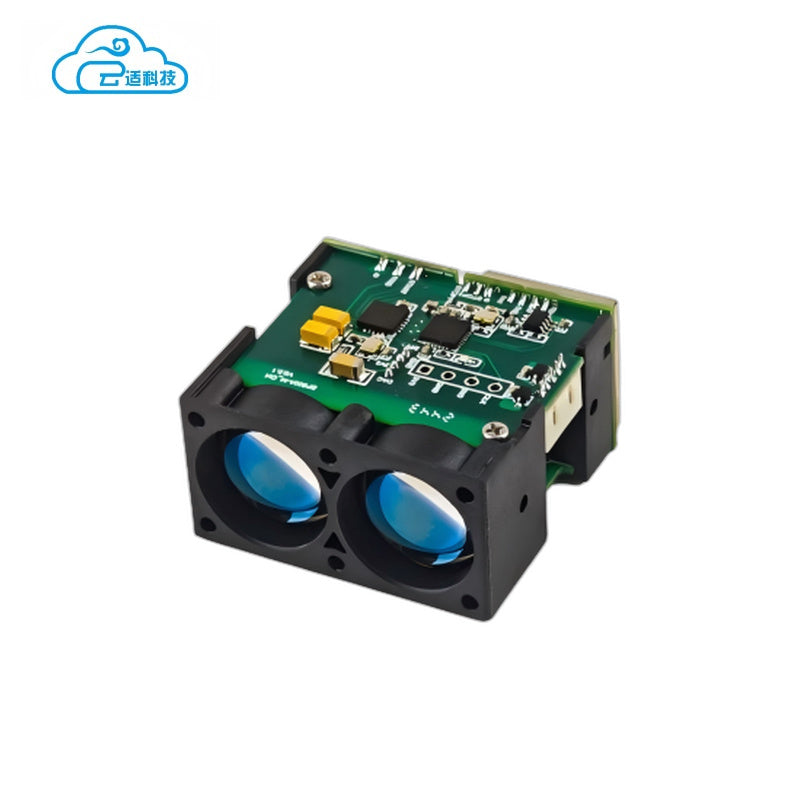

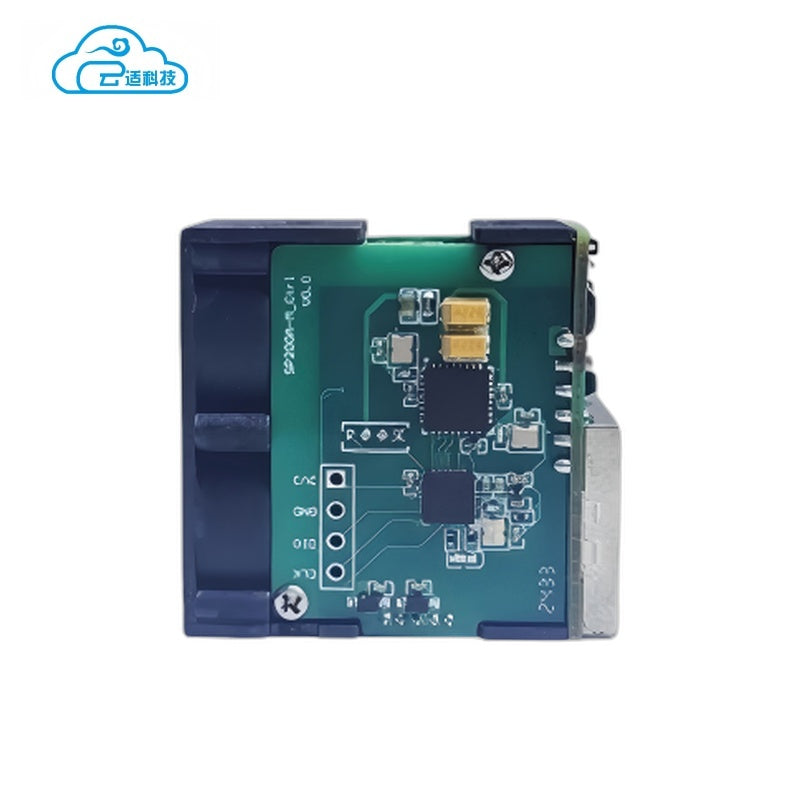

Yunshis SDFM Series Ranging Module

$240.00
Version

Delivery and Shipping
  • We automatically select the most cost-effective carrier from China for each destination country
  • Shipping rates are dynamically calculated based on real-time quotes
  • Final rates may vary due to promotional offers or carrier adjustments

Product Information


Application Scenarios

Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots

Technical Specifications

Parameter Value Value Value Value Value
Model SDFM100 SDFM200 SDFM300 SDFM600 SDFM1500
Range @ 90% Reflectivity 100 m 200 m 300 m 600 m 1500 m
Range @ 10% Reflectivity 30 m 70 m 100 m 200 m 300 m
Blind Zone 0.05 m
Ranging Frequency 1 kHz (Adjustable 20 ~ 10 kHz)
Absolute Accuracy ±10 cm (≤10 m), ±1% (>10 m)
Repeatability ±5 cm (≤10 m), ±10 cm @ 300 m, ±100 cm @ 1500 m
Ambient Light Immunity 100 KLux
Laser Wavelength 905 nm
Laser Safety Class Class 1
Laser FOV Approx. 4 mrad
Indicator Laser Wavelength N/A
Indicator Laser Class N/A
Input Voltage 9 ~ 36 VDC
Peak Current 100 mA
Average Current 30 mA
Average Power Consumption 0.7 W 0.7 W 1.2 W 1.2 W 1.2 W
Communication Interface UART, IIC
Dimension (L×W×H) 33 × 34 × 18 mm
Weight 20 ± 2 g
Operating Temperature -20 ~ +60 °C
Cable Specification 1.25mm, 5P 50cm loose wire
Customization Support Customizable housing structure and output protocol
