Yunshis | SKU:

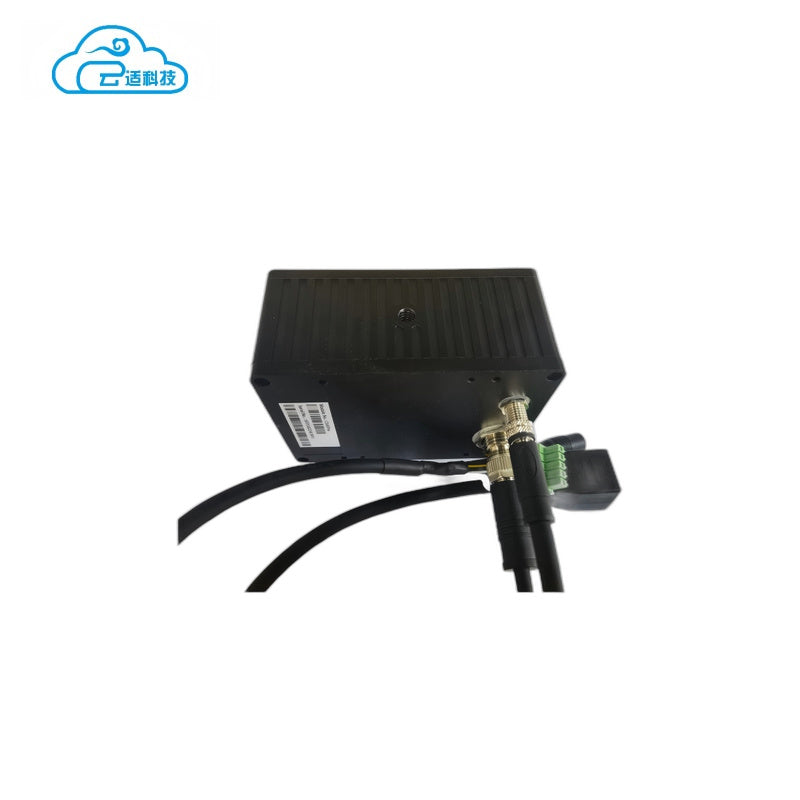

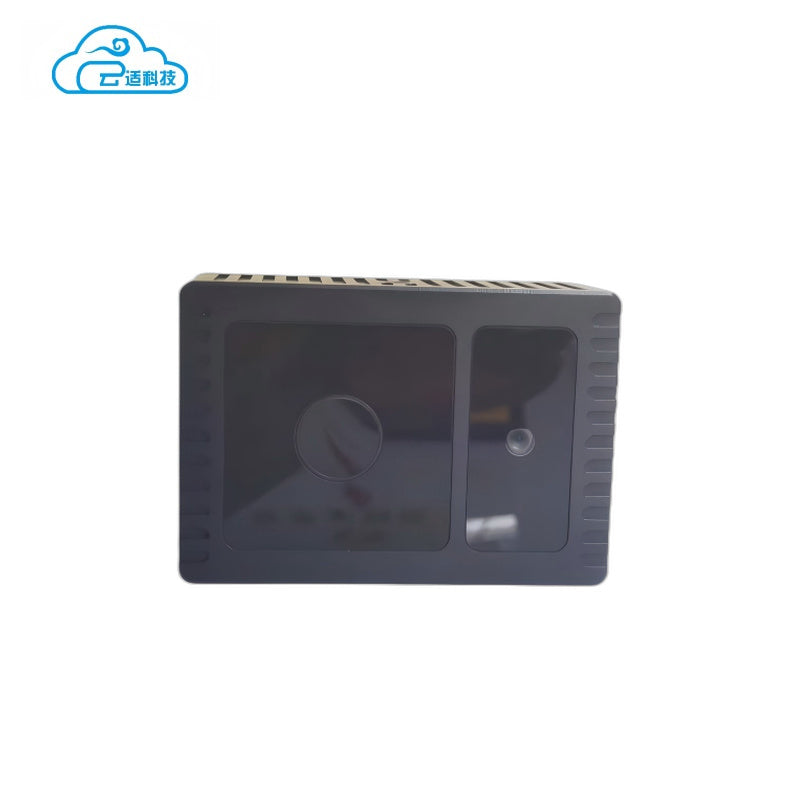

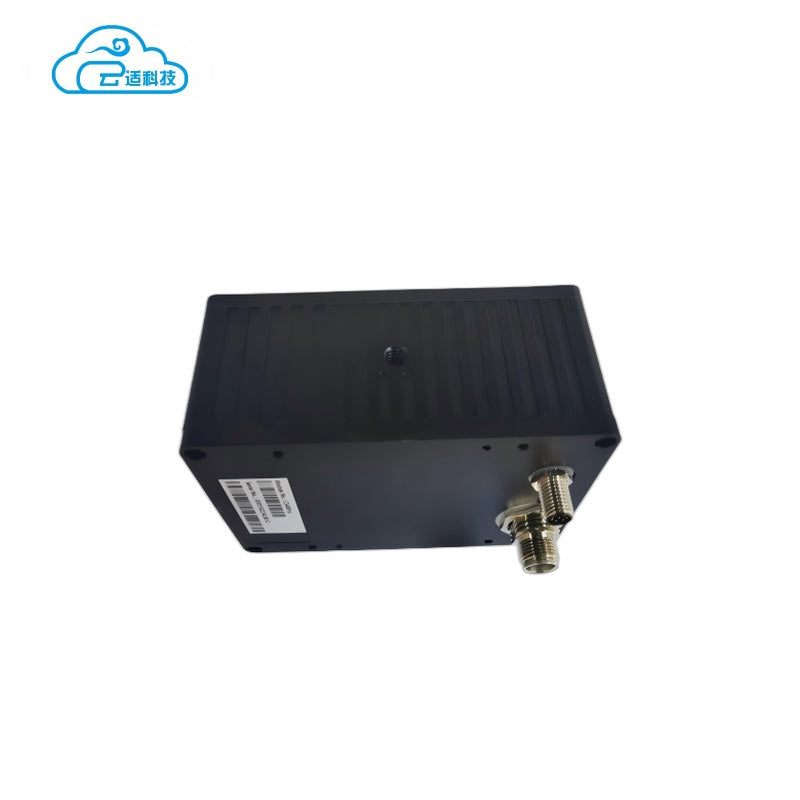

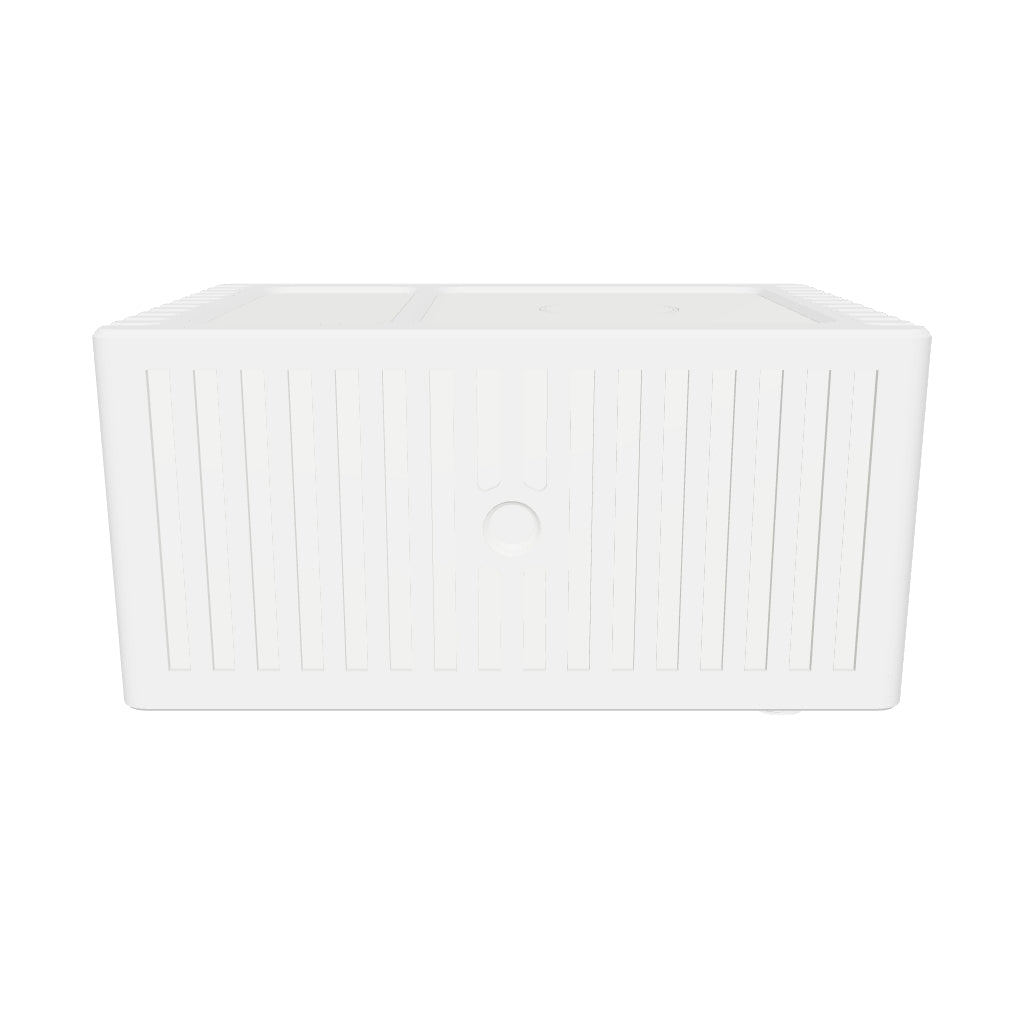

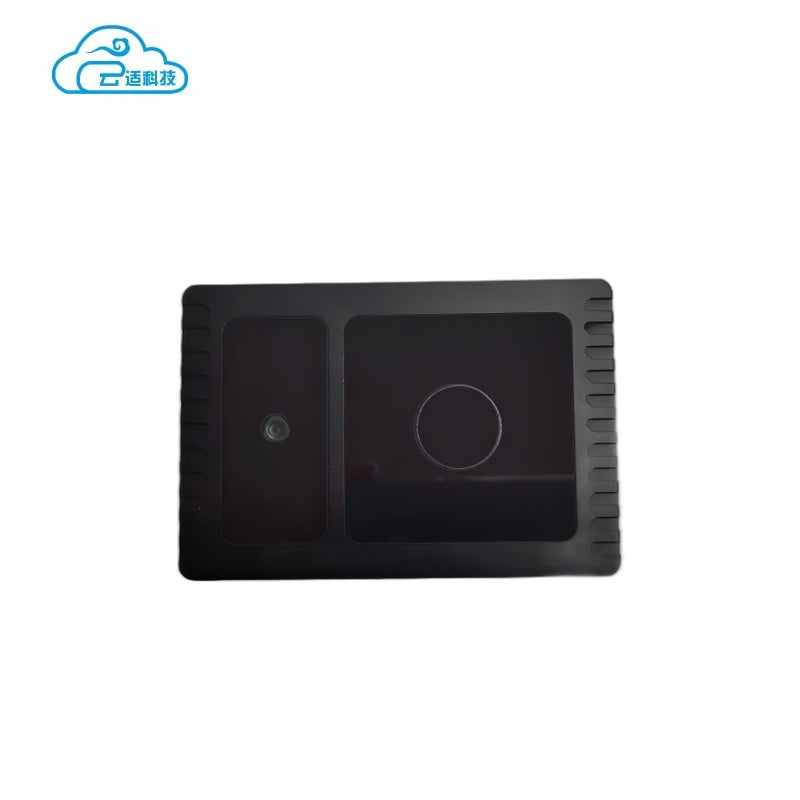

Yunshis CS40Pro LiDAR
Regular price
$1,300.00
Unit price
Yunshis CS40Pro LiDAR - CS40Pro Standard Point Cloud Edition is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
- We automatically select the most cost-effective carrier from China for each destination country
- Shipping rates are dynamically calculated based on real-time quotes
- Final rates may vary due to promotional offers or carrier adjustments
Yunshis CS40Pro LiDAR
Regular priceFrom
$1,300.00
Unit price
Yunshis CS40Pro LiDAR - CS40Pro Standard Point Cloud Edition is backordered and will ship as soon as it is back in stock.
Product Information
Application Scenarios
Humanoid Robots
Robotic Arms
Exoskeletons
Quadruped Robots
AGV Vehicles
ARU Robots
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Depth Image | Resolution / Frame Rate | 640 × 480 & 320 × 240 @ 30 fps |
| FOV | H71° × V53° | |
| Color Image | Resolution / Frame Rate | 1600 × 1200 @ 30 fps |
| FOV | H84° × V66° | |
| Basic Parameters | Working Distance | 0.5 ~ 10 m, Indoor & Outdoor @ ref 90% |
| VCSEL Wavelength | 940 nm | |
| Accuracy | ±2% @ ref 90% | |
| Product Dimension | 108 × 74 × 52 mm | |
| Data Transmission | 1000M Ethernet & RS485 | |
| Power Supply | DC 12 ~ 24 V / 2A & POE | |
| Power Consumption | Average 7.2W @ IntegCount 700us | |
| Operating System | Windows, Linux, Arm Linux | |
| Operating Temperature | -20 ~ 60 °C | |
| Safety Class | Class 1 | |
| IP Rating | IP67 |
